N700 Operating Instructions and Parts Manual 7. Explanation of A-Group
57
7.2 Acceleration and deceleration curvature (A003~A004)
When rise the value of A003(A004), the s-curvature is bigger.
In this case, the acceleration and deceleration time can be modified.
The curvature variable in this formula limits.
[ Acceleration time(sec.) x curvature ≤ 60 ]
Code Function name Initial value Unit Setting range Contents
A003
Acceleration
curvature
8 - 1~10
A004
Deceleration
curvature
8 - 1~10
The curvature is bigger by rising of
setting value.
Table 7- 2 Acceleration and deceleration curvature function (A003~A004)

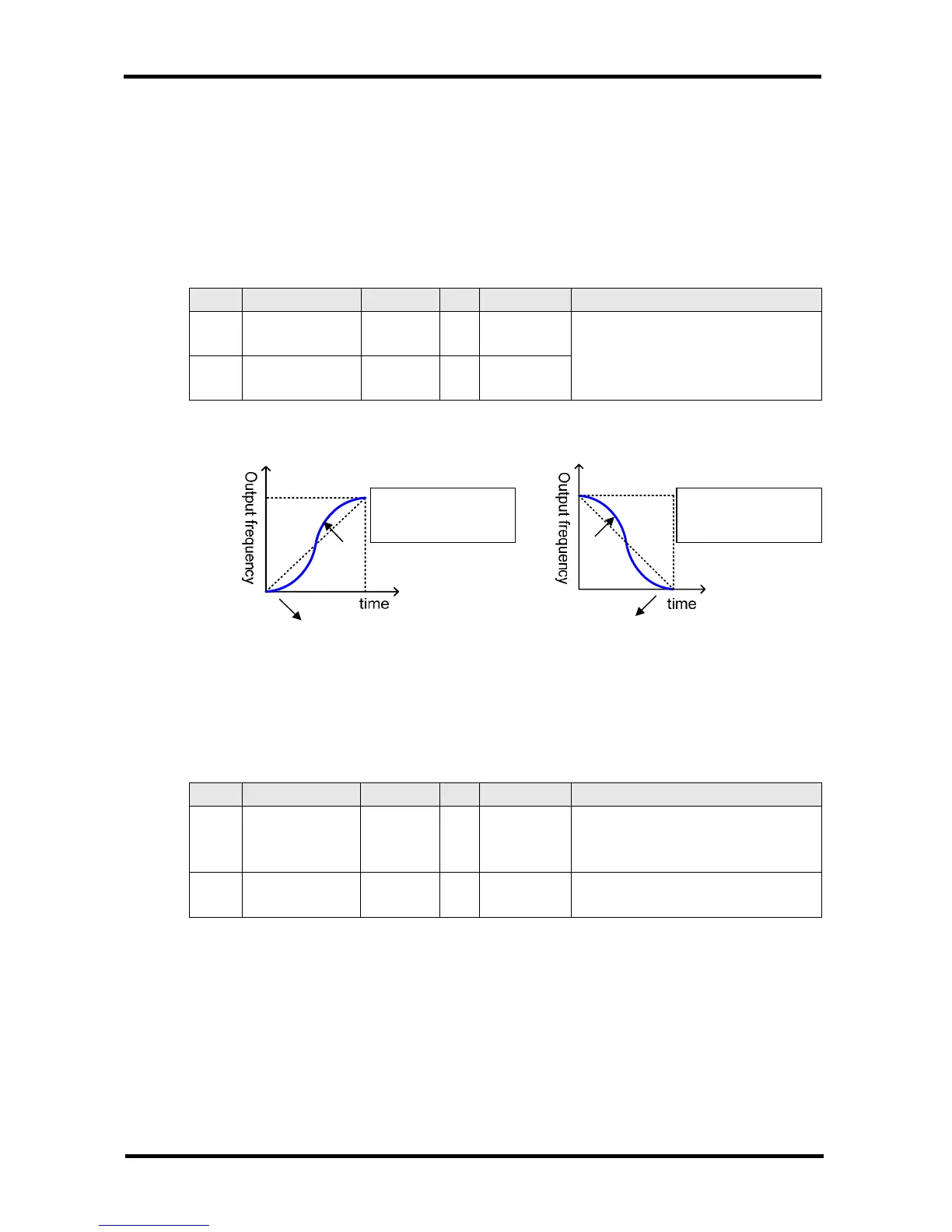

Fig. 7- 1 Acceleration and deceleration curvature
7.3 Acceleration stop function (A005~A006)
When the moment of inertia for the load is high, this is the function to wait until the slip of the
motor on starting becomes smaller.
Use when the over current trip occurs on starting.
Code Function name Initial value Unit Setting range Contents
A005
Acceleration stop
frequency
0.00 Hz 0.00~F003
0.00~99.99 : Setting in units of 0.01Hz
100.0~400.0 : Setting in units of 0.1Hz
Set the frequency to be held.
A006
Acceleration stop
time
0.00 Sec 0.00~60.00
Setting in units of 0.01 seconds
Set the time to hold the frequency.
Table 7- 3 Acceleration stop function (A005~A006)
More value makes
more curvature
More value makes
more curvature
