N700 Operating Instructions and Parts Manual 6. Explanation of F-Group Function
54
Code Function name Initial value Unit Setting range Contents
440
380/400/415/440
/460/480
400V(HF - model) : When
inverter is 400 V class,
selection is possible.
Table 6- 11 Motor voltage selection (F013)
6.12 Output voltage gain (F014)
Regarding the voltage selected on F013 motor voltage selection as 100%, set the rate of the
voltage which the inverter outputs for the selected voltage.
Code Function name
Initial
value
Unit Setting range Contents
F014 Output voltage gain 100 % 20~100 Unit : %
Table 6- 12 Output voltage gain (F014)

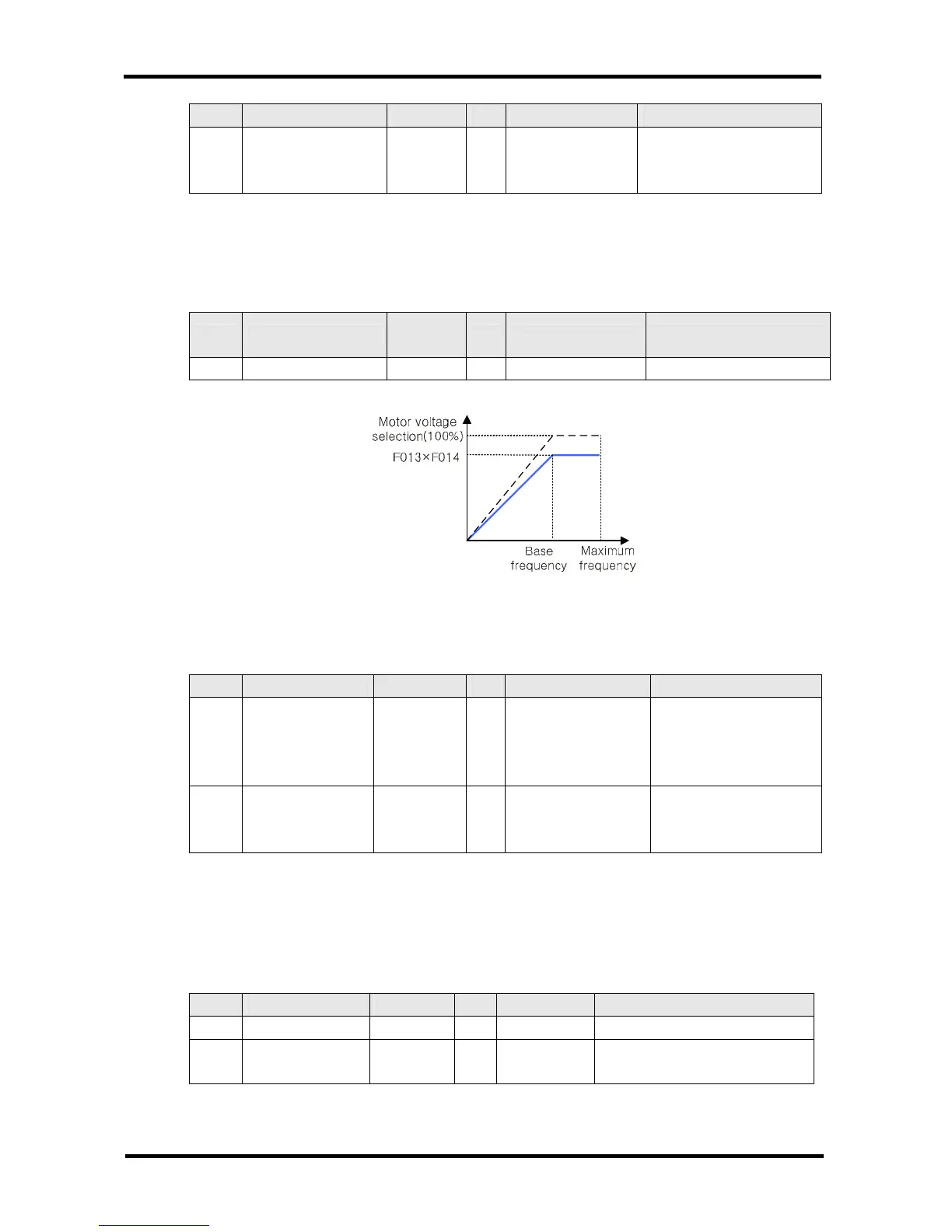

Fig. 6- 7 Output voltage gain curve
6.13 Motor capacity selection (F015/F215)
Setting the motor capacity to run by an inverter.
Code Function name Initial value Unit Setting range Contents
F015
Motor capacity
selection
(motor rated
capacity)
According to
Inverter
capacity
-
1.5/2.2/3.7/5.5/7.5/11/
15/18.5/22/30/37/45/
55/75/90/110/132/160
Setting according to the
number of motor poles
(200V class/400V class)
F215
2nd motor capacity
selection
According to
Inverter
capacity
-
1.5/2.2/3.7/5.5/7.5/11/
15/18.5/22/30/37/45/
55/75/90/110/132/160
Setting according to the
number of motor poles
(200V class/400V class)
Table 6- 13 Motor capacity selection (F015/F215)
Note) 220V class inverter can be set until 75kW, 440V class inverter can be set until 160kW.
6.14 Motor pole selection (F016/F216)
Selection the number of poles for the motor.
Code Function name Initial value Unit Setting range Contents
F016 Motor pole selection 4 - 2/4/6/8/10/12 Setting according to pole selection
F216
Motor pole election,
2nd motor
4 - 2/4/6/8/10/12 Setting according to pole selection
Table 6- 14 Motor pole selection (F016/F216)
