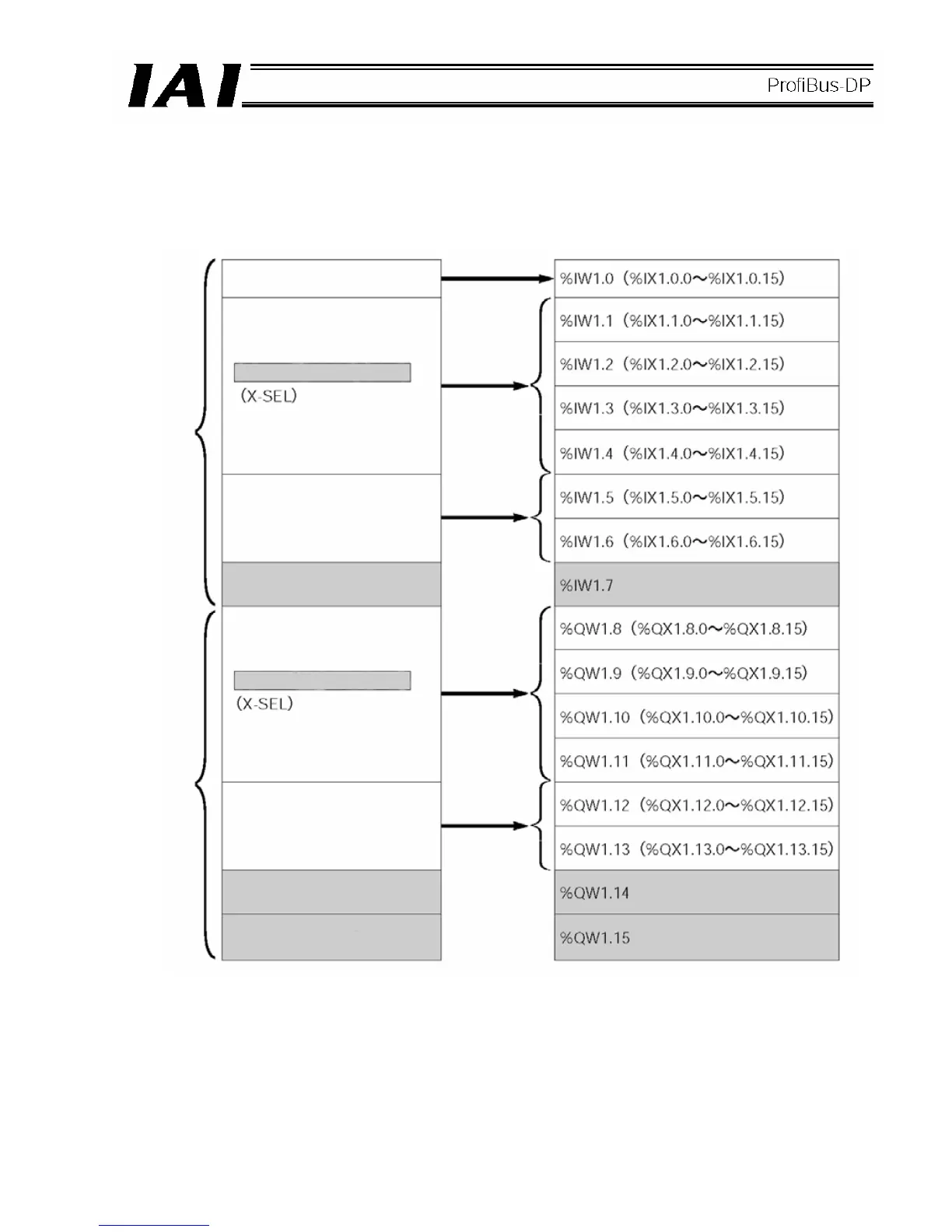

Based on the above parameter settings, the corresponding addresses are assigned as follows in the PLC.
Unit assignment in master station I/O assignment in master station
Eight input
words
Eight output
words
Slave station 1: 16 input points
Slave station 2: 64 output points
Slave station 3: 32 input points
No applicable slave station
Slave station 2: 64 input points
Slave station 3: 32 output points
No applicable slave station
No applicable slave station
(This area is not used.)
(This area is not used.)
(This area is not used.)
