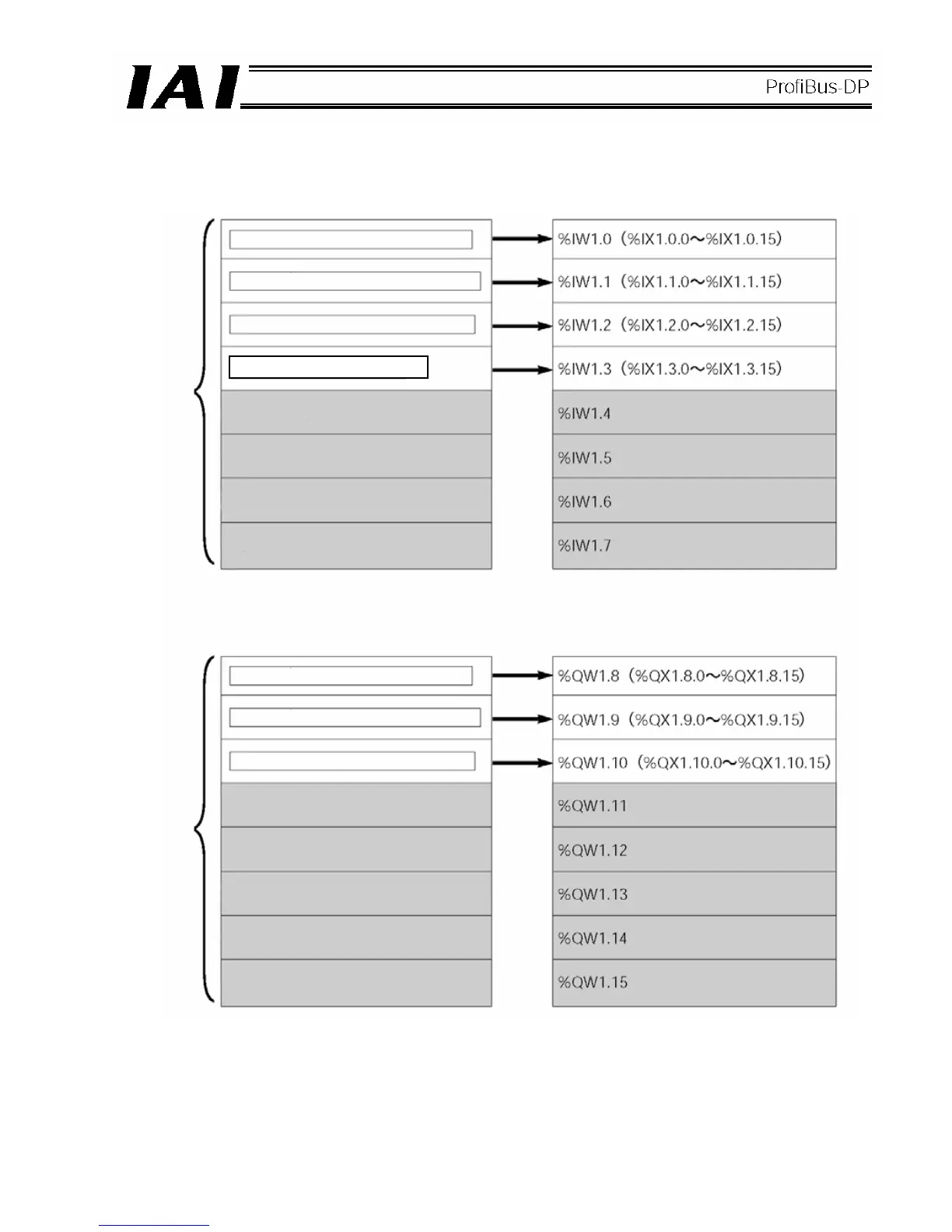

First, the address assignment description rules are specified below.
Eight input
words
Eight output
words
Slave station 4: 16 input points
No applicable slave station
No applicable slave station
No applicable slave station
No applicable slave station
(This area is not used.)
(This area is not used.)
(This area is not used.)
(This area is not used.)
(This area is not used.)
(This area is not used.)
(This area is not used.)
(This area is not used.)
(This area is not used.)
Slave station 1 (RCS): 8 input points
Slave station 2 (E-Con): 10 input points
Slave station 3 (Scon): 16 input points
No applicable slave station
No applicable slave station
No applicable slave station
No applicable slave station
No applicable slave station
Slave station 1 (RCS): 10 input points
Slave station 2 (E-Con): 12 input points
Slave station 3 (Scon): 16 input points
