When bit addresses are set in the PLC, inputs and outputs are sequentially assigned to
the channels corresponding to the node address set by the DIP switches.
(Input) (Output)
Node address
nn

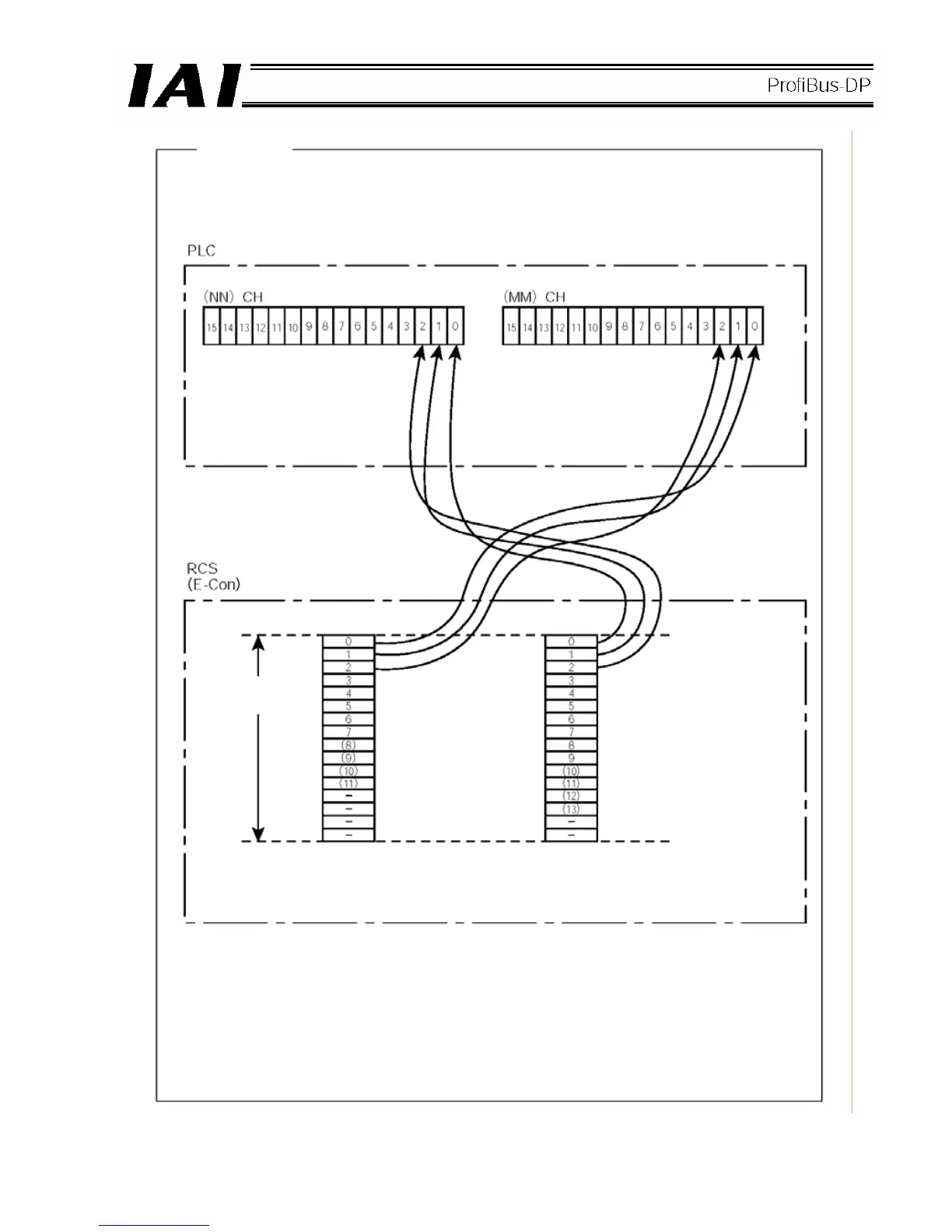

The numbers under (NN)/(MM) CH are PLC channel addresses corresponding to node
address nn.
Input number Output number
* The settings in ( ) apply to the E-Con.
