IB990 User’s Manual
1.1 Introduction
The IB990 PICMG1.3 SHB Express CPU Card is based on the latest
Intel
®
Q170, C236. The platform supports 6
th
Gen. Intel
®
Xeon
®
E3 v5
family or Core™ i7/i5/i3 DT processors with speeds of up to 4.0GHz
and features an integrated graphics core that work with CRT, DVI-I
and DVI-D display outputs.
IB990 utilizes the dramatic increase in performance provided Intel’s
latest cutting-edge technology. Measuring 338mm x122mm, the
IB990 offers fast 6Gbps SATA support (up to 6 ports), USB3.0 (6
ports) and interfaces for two Gigabit Ethernet.

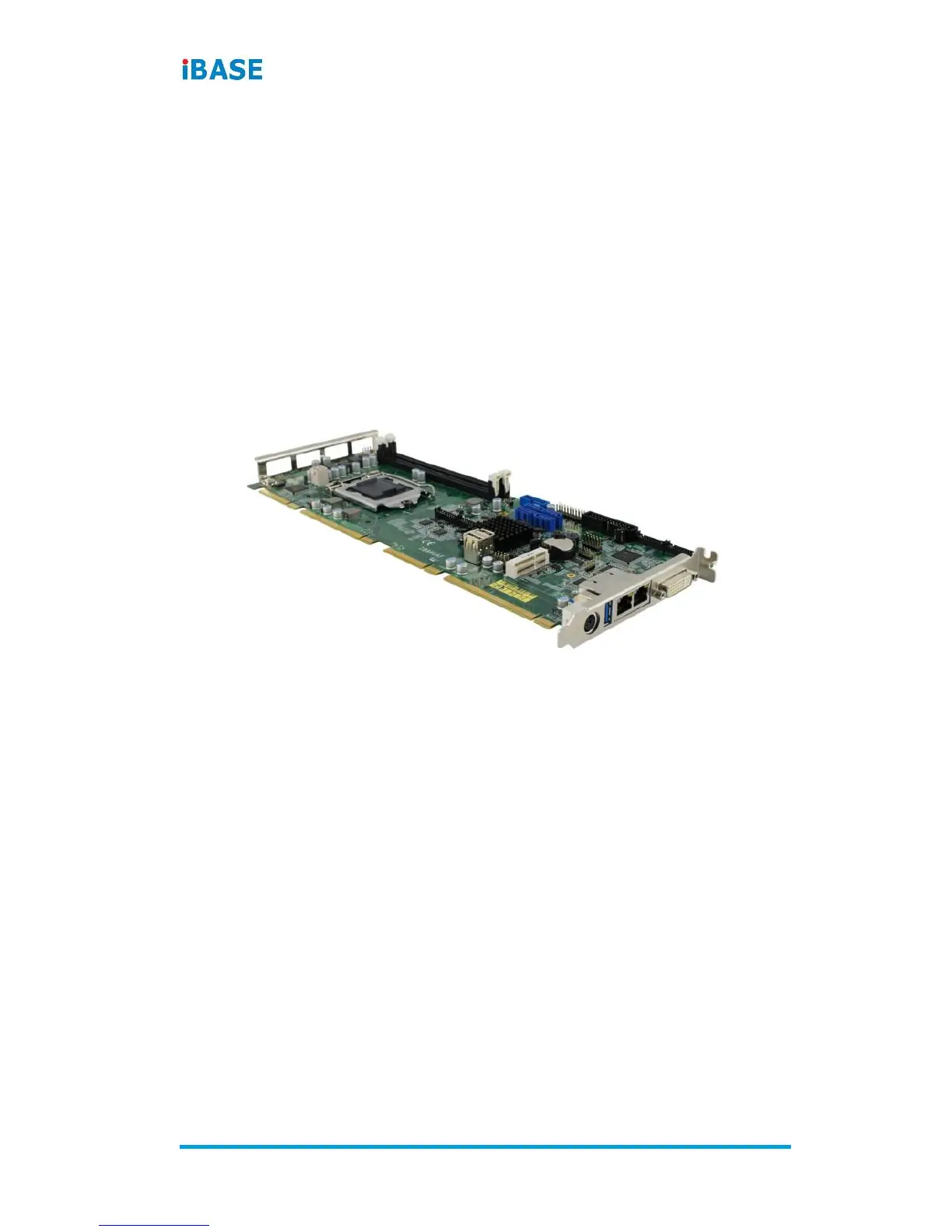

Photo of IB990AF (for Q170)
1.2 Features
 Intel
®
Xeon
®
E3 v5 Family / 6
th
Gen. Core™ i7/i5/i3 Processor, up
to 4.0 GHz
 2 x DDR4- 2133 UDIMM, Max. 32GB, ECC supported per CPU
SKUs
 Intel
®
Processor integrated graphics, supports DVI-I, CRT,
DVI-D
 2 x Intel
®
PCI-E Gigabit LAN
 3 x USB3.0, 2 x USB2.0, 4 x COM, max. 6 x SATA III
 1 x Mini PCI-E slot
 Watchdog timer, Digital I/O, iAMT (11.0)
