IBASE Technology IB990 - Parallel Port (J6)

28
IB990 User’s Manual
2.5.10 Parallel Port (J6)
1
14 26
13

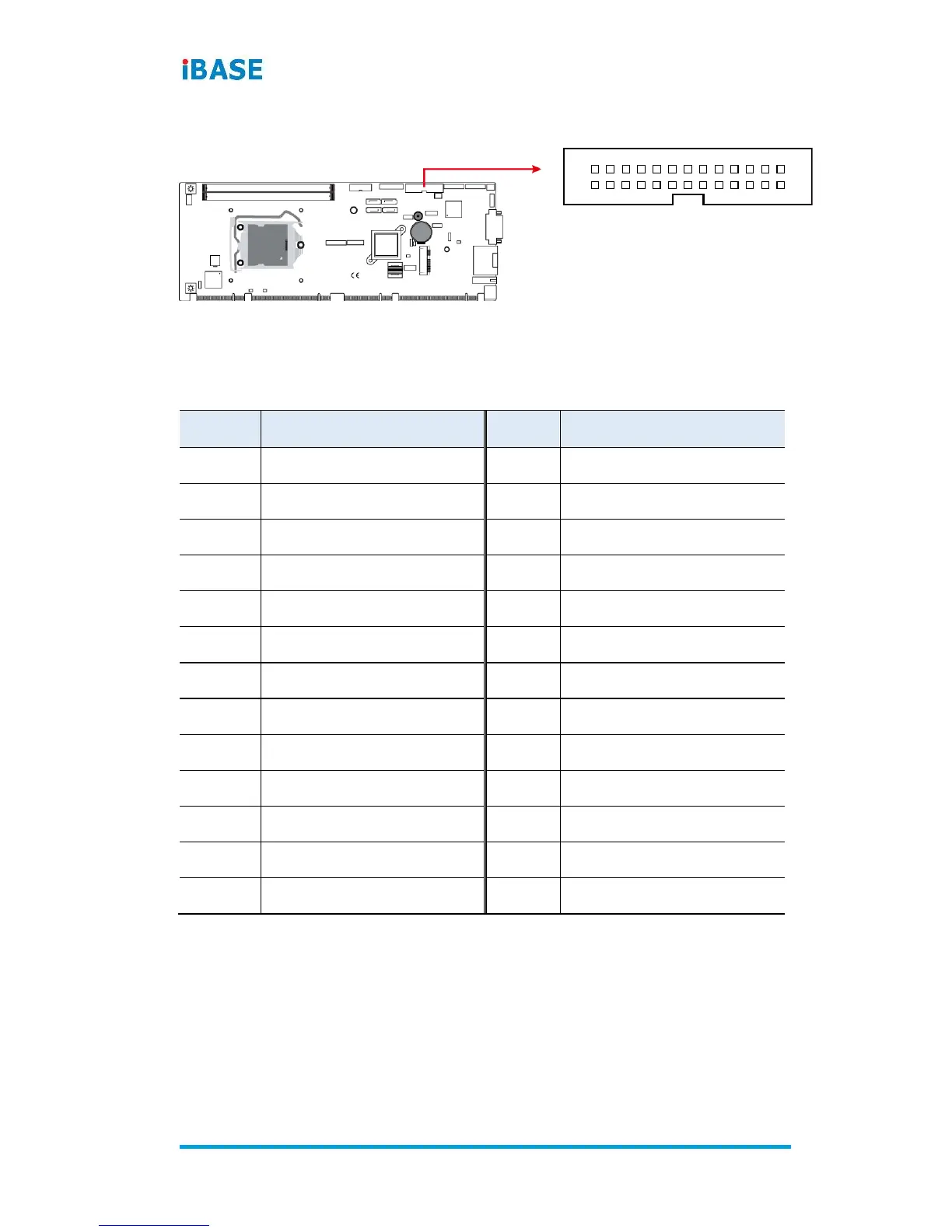

J6 is a 26-pin header used to connect to the optional printer port
cable.
Pin #
Assigment
Pin #
Assigment
1
Line printer strobe
14
Auto Feed
2
PD0, parallel data 0
15
Error
3
PD1, parallel data 1
16
Initialize
4
PD2, parallel data 2
17
Select
5
PD3, parallel data 3
18
Ground
6
PD4, parallel data 4
19
Ground
7
PD5, parallel data 5
20
Ground
8
PD6, parallel data 6
21
Ground
9
PD7, parallel data 7
22
Ground
10
ACK, acknowledge
23
Ground
11
Busy
24
Ground
12
Paper empty
25
Ground
13
Select
26
Ground
