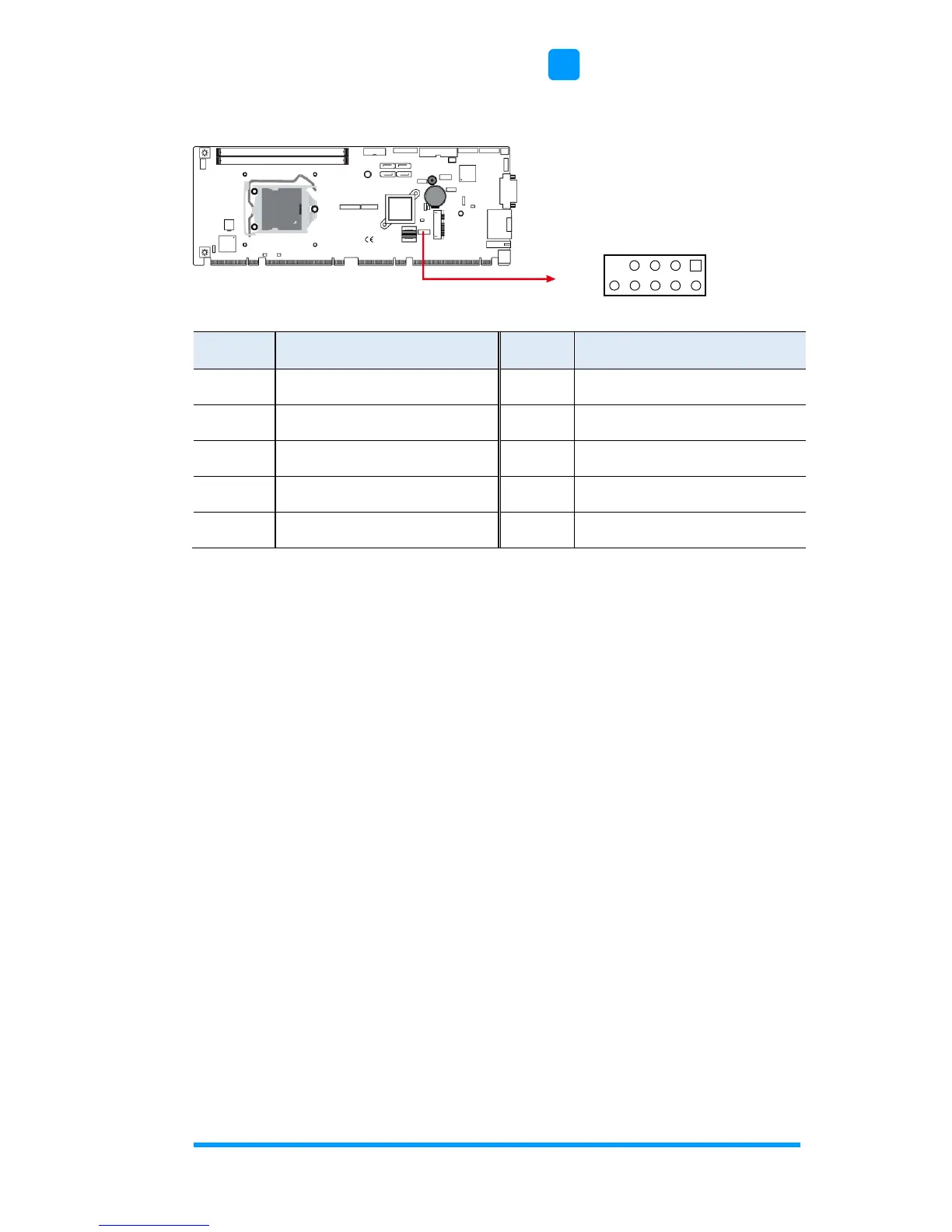

2.5.4 USB2.0 Connectors (J17)
1
210
Pin #
Assigment
Pin #
Assigment
1
VCC (500mA)
6
D1+
2
VCC (500mA)
7
Ground
3
D0-
8
Ground
4
D1-
9
- -
5
D0+
10
NC
