IBASE Technology IB990 - DVI-D Port (J13)

Hardware Configuration
IB990 User’s Manual
27
2

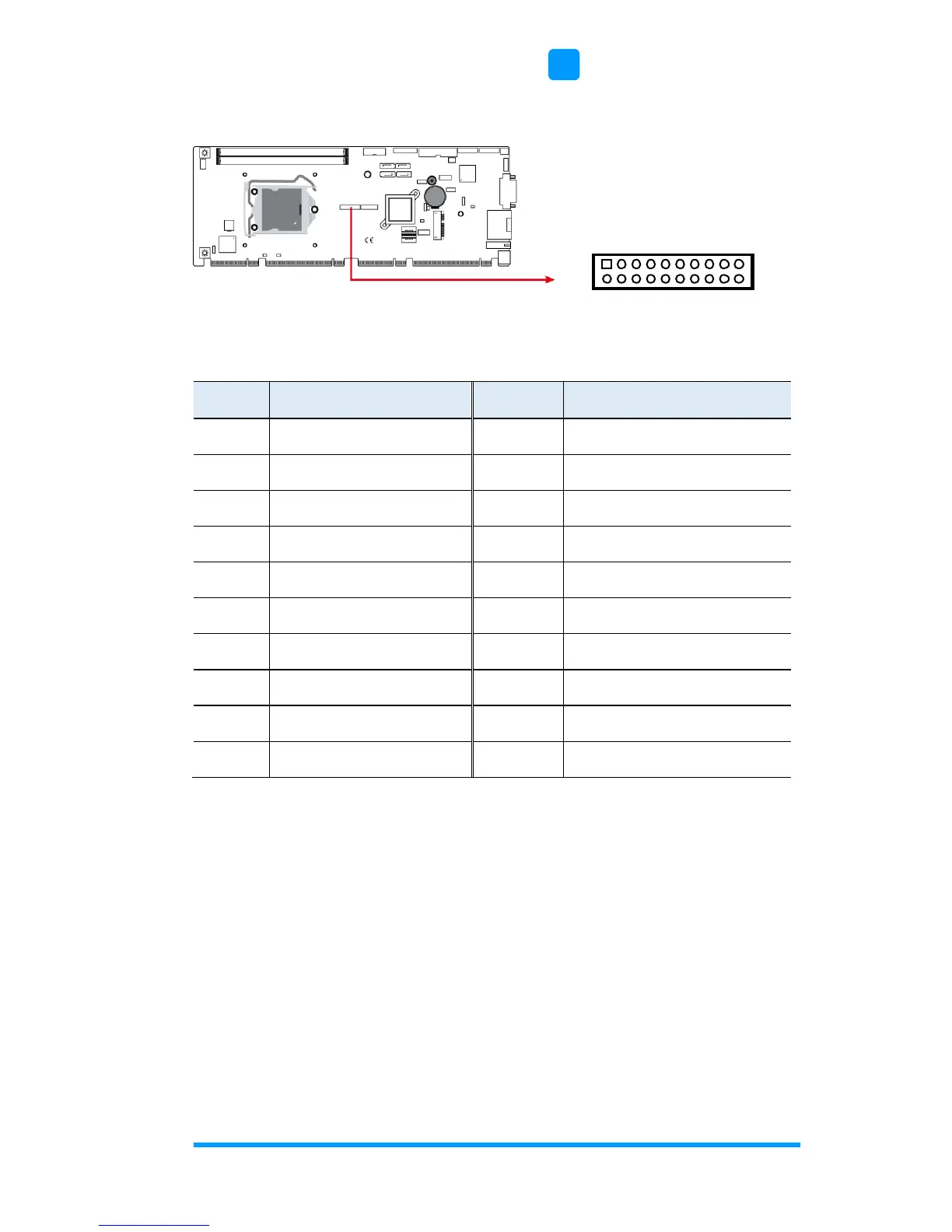

2.5.9 DVI-D Port (J13)
1
2
19
20
J13 is a 20-pin header used to connect to the optional DVI-D cable.
Pin #
Assigment
Pin #
Assigment
1
TDC1_B
11
TDC2_B
2
TDC1#_B
12
TDC2#_B
3
Ground
13
Ground
4
Ground
14
Ground
5
TLC_B
15
TDC0_B
6
TLC#_B
16
TDC0#_B
7
Ground
17
N.C.
8
5V
18
N.C.
9
HPDET_B
19
SD_DDC_B
10
N.C.
20
SC_DDC_B
