IBASE Technology IB990 - USB3.0;2.0 Connector (J5)

22
IB990 User’s Manual

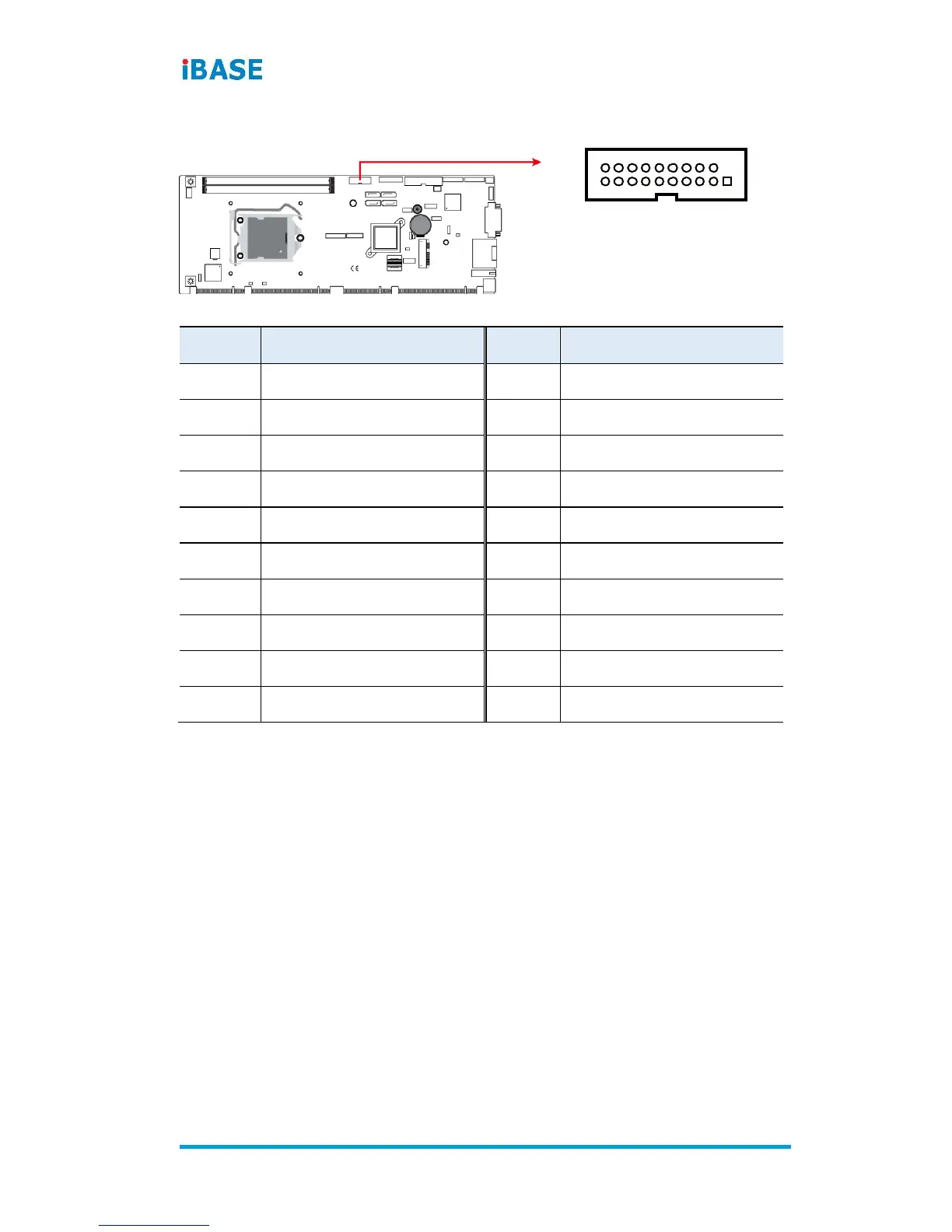

2.5.3 USB3.0/2.0 Connector (J5)
110
11 19
Pin #
Assigment
Pin #
Assigment
1
VCC(900mA)
11
P2_U2_D+
2
P1_SSRX-
12
P2_U2_D-
3
P1_SSRX+
13
GND
4
GND
14
P2_SSTX+
5
P1_SSTX-
15
P2_SSTX-
6
P1_SSTX+
16
GND
7
GND
17
P2_SSRX+
8
P1_U2_D-
18
P2_SSRX-
9
P1_U2_D+
19
VCC(900mA)
10
NC
