IB990 User’s Manual

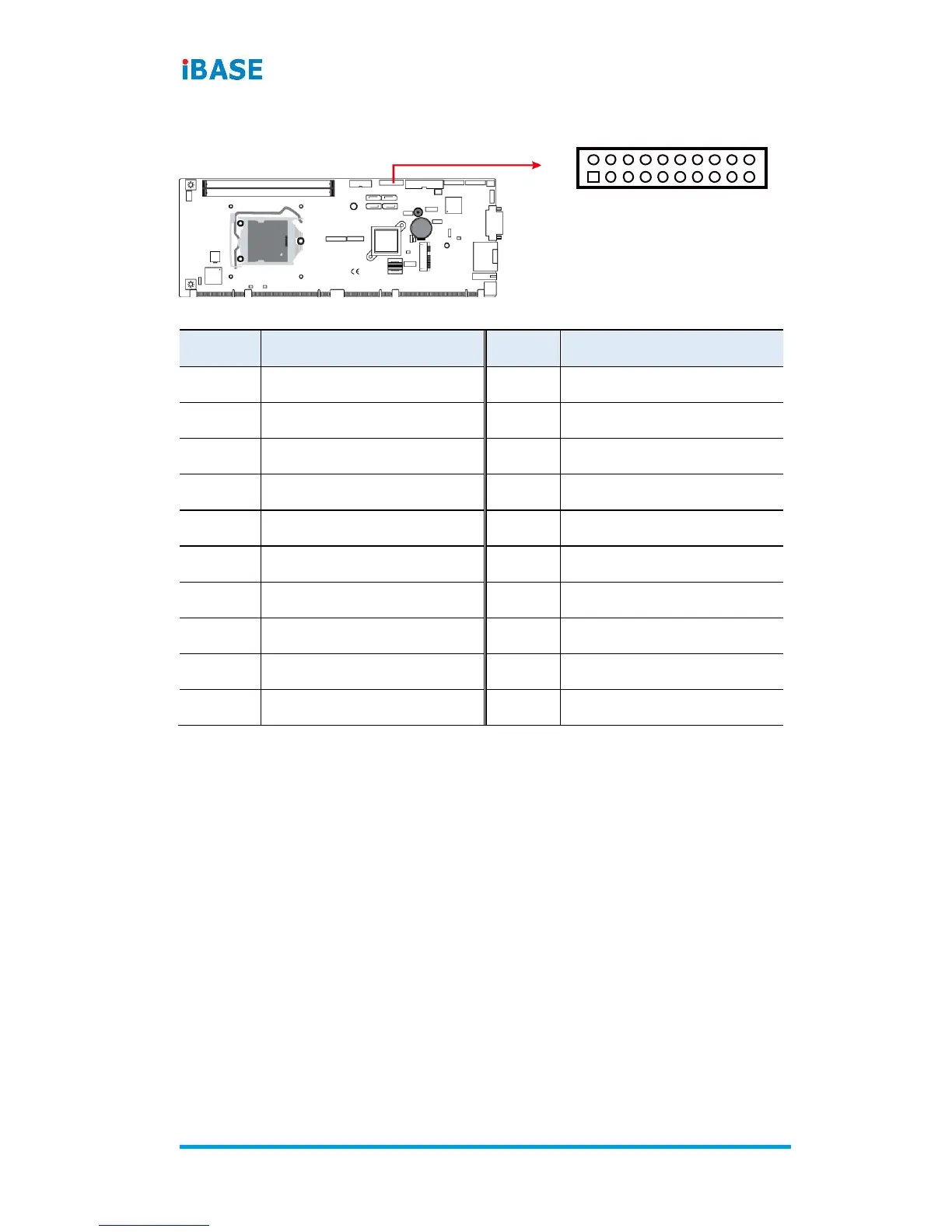

2.5.5 Front Panel Function Connector (J1)
1
19
20
2
Pin #
Assigment
Pin #
Assigment
1
VCC
11
Ground
2
Speaker Out
12
NC
3
NC
13
Ground
4
NC
14
PWR_SW
5
Ground
15
NC
6
Ground
16
NC
7
NC
17
Ground
8
VCC
18
RST
9
Ground
19
HDD LED +
10
NC
20
HDD LED -
