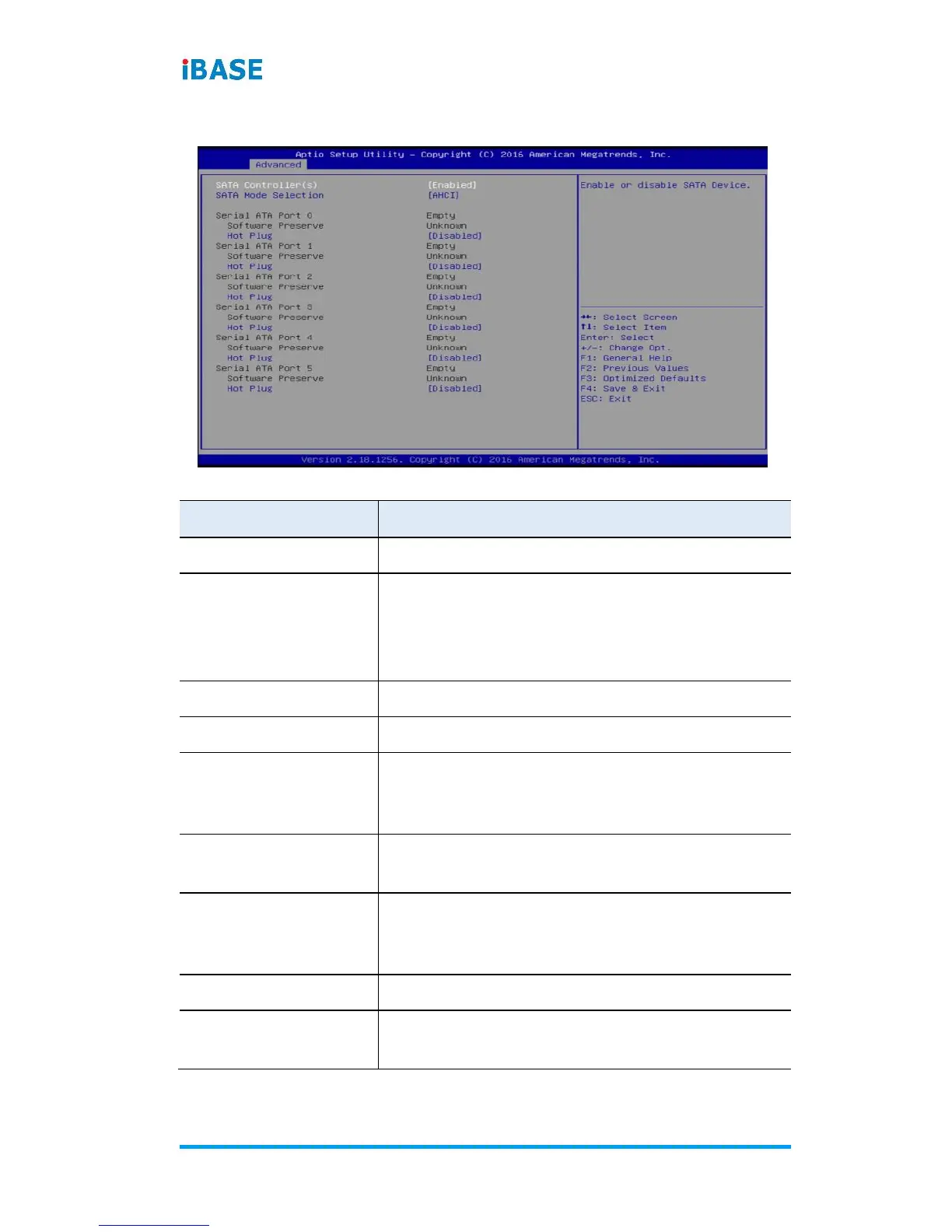

4.4.7 SATA Configuration
BIOS Setting
Description
SATA Controller(s)
Enables / Disables SATA devices.
SATA Mode
Selection
Determines how the SATA controller(s)
operate.
 AHCI Mode
 RAID Mode
Hot Plug
Designates this port as Hot Pluggable.
External SATA
Supports external SATA.
Spin Up Device
On an edge detection from 0 to 1, the PCH
starts a COMRESET initialization sequence
to the device.
SATA Device Type
Identifies whether SATA port is connected to
a solid state drive or a hard disk drive.
Topology
Identifies the SATA Topology that whether it
is Default, ISATA, Flex, DirectConnect or
M2.
Device sleep
mSata for RTD3
SATA DEVSLEP
Idle Timeout Config
Enables / Disables SATA DTIO
configuration.
