IB990 User’s Manual
2.4 Jumpers Quick Reference
Function
Jumper Name
Page
Clear CMOS Content
JBAT1
16
COM1 RS-232 Power Setting
JP1
17
PCIe (x16) Bifurcation Selection
JP4, JP5
18

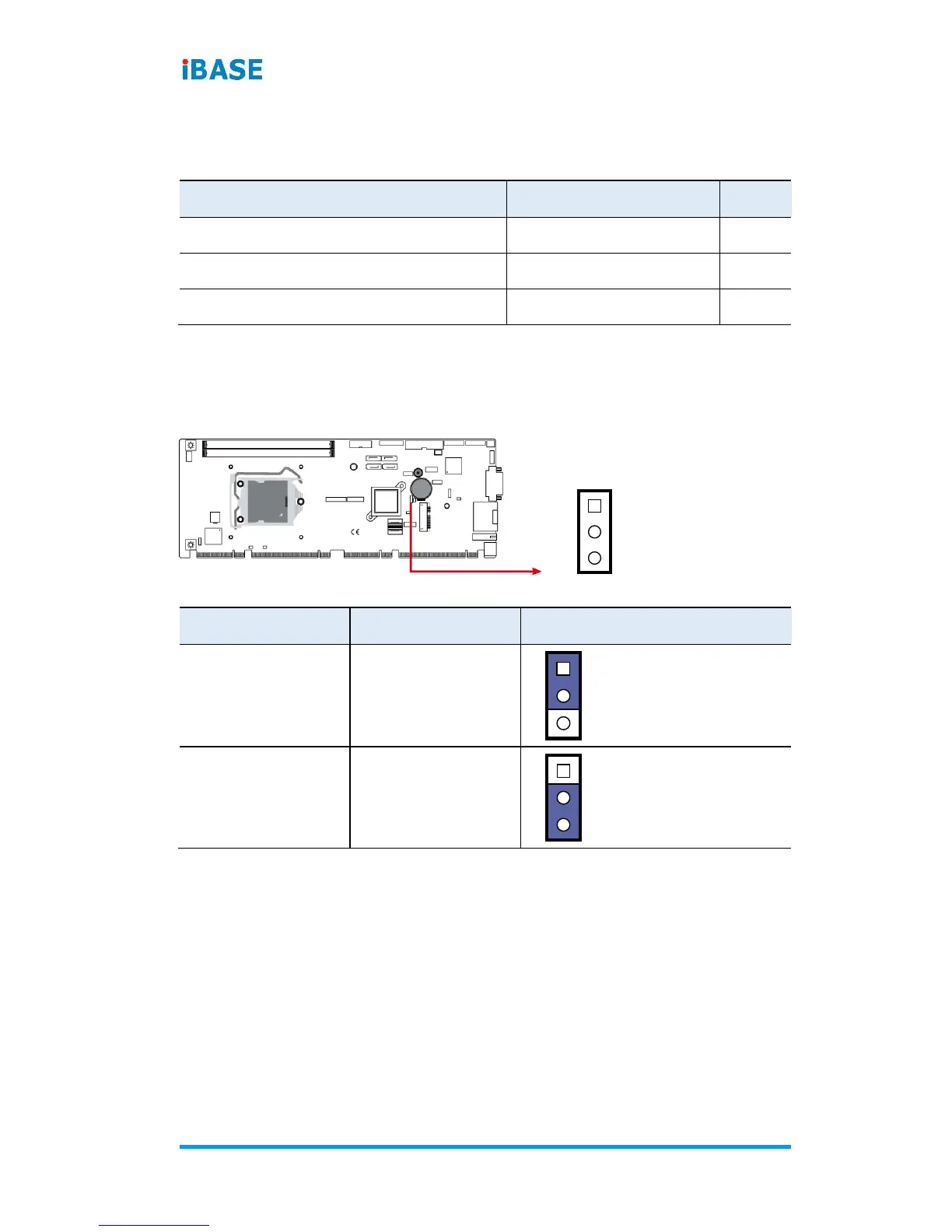

2.4.1 Clear CMOS Content (JBAT1)
1
Function
Pin closed
Illustration
Normal
1-2
1
Clear CMOS
2-3
1
