IB990 User’s Manual

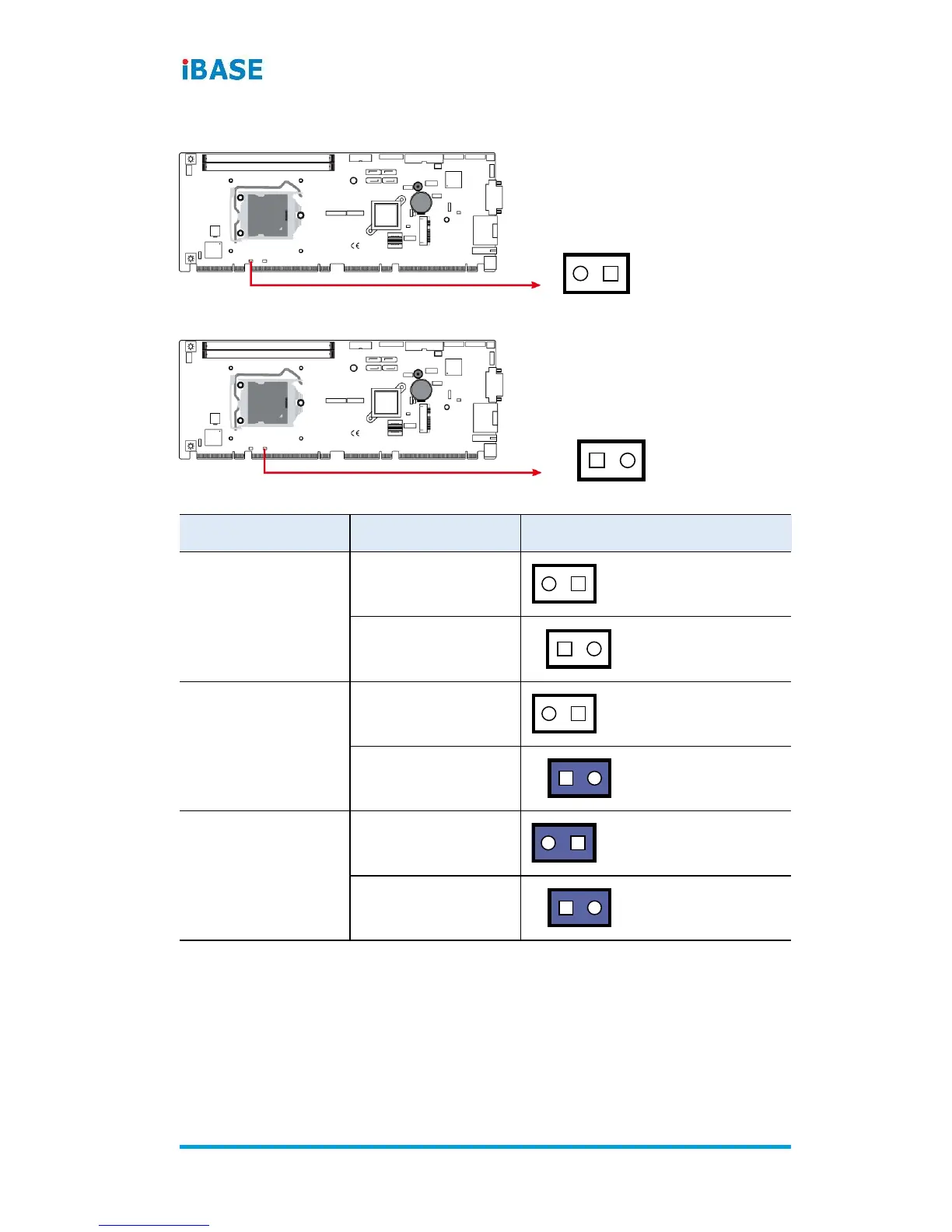

2.4.3 PCIe (x16) Bifurcation Selection (JP4 & JP5)
JP4:
1
JP5:
1
Function
Pin closed
Illustration
1 x PCIe (x16)
JP4: Open
1
JP5: Open
1
2 x PCIe (x8)
JP4: Open
1
JP5: Close
1
1 x PCIe (x8)
2 x PCIe (x4)
JP4: Close
1
JP5: Close
1
