IB990 User’s Manual

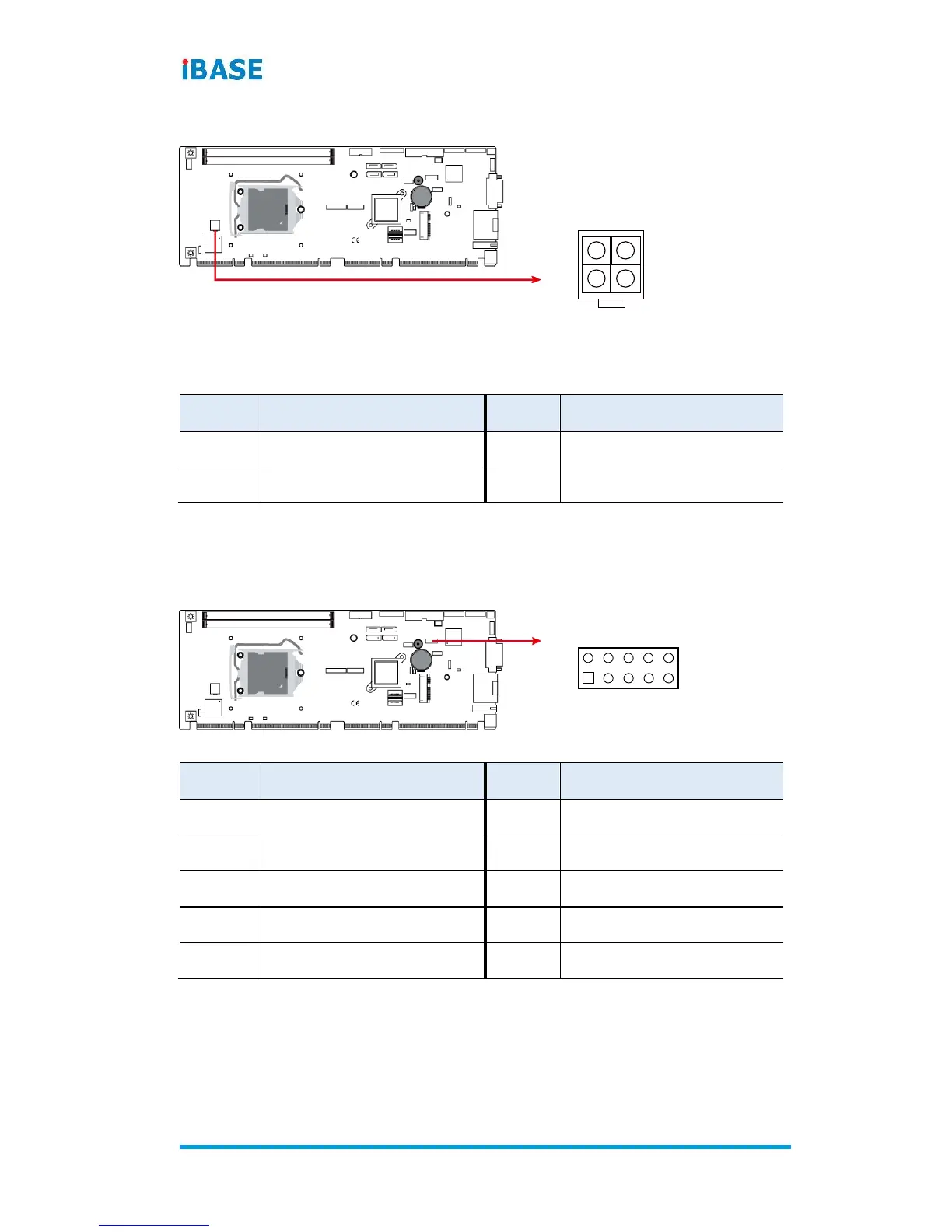

2.5.7 ATX 12V Power Connector (J16)
4
2
3
1
J16 connector supplies the CPU operating voltage.
Pin #
Assigment
Pin #
Assigment
1
Ground
3
+12V-IN
2
Ground
4
+12V-IN
2.5.8 Digital I/O 4 In/4 Out (J9)
102
91
Pin #
Assigment
Pin #
Assigment
1
GND
6
OUT0
2
VCC
7
IN3
3
OUT3
8
IN1
4
OUT1
9
IN2
5
OUT2
10
IN0
