BOILER SYSTEMS AND OPERATION
SL 35-199, SL 45-260 MODULATING GAS BOILERS
2.0 IBC BOILER CONTROLLER
GENERAL

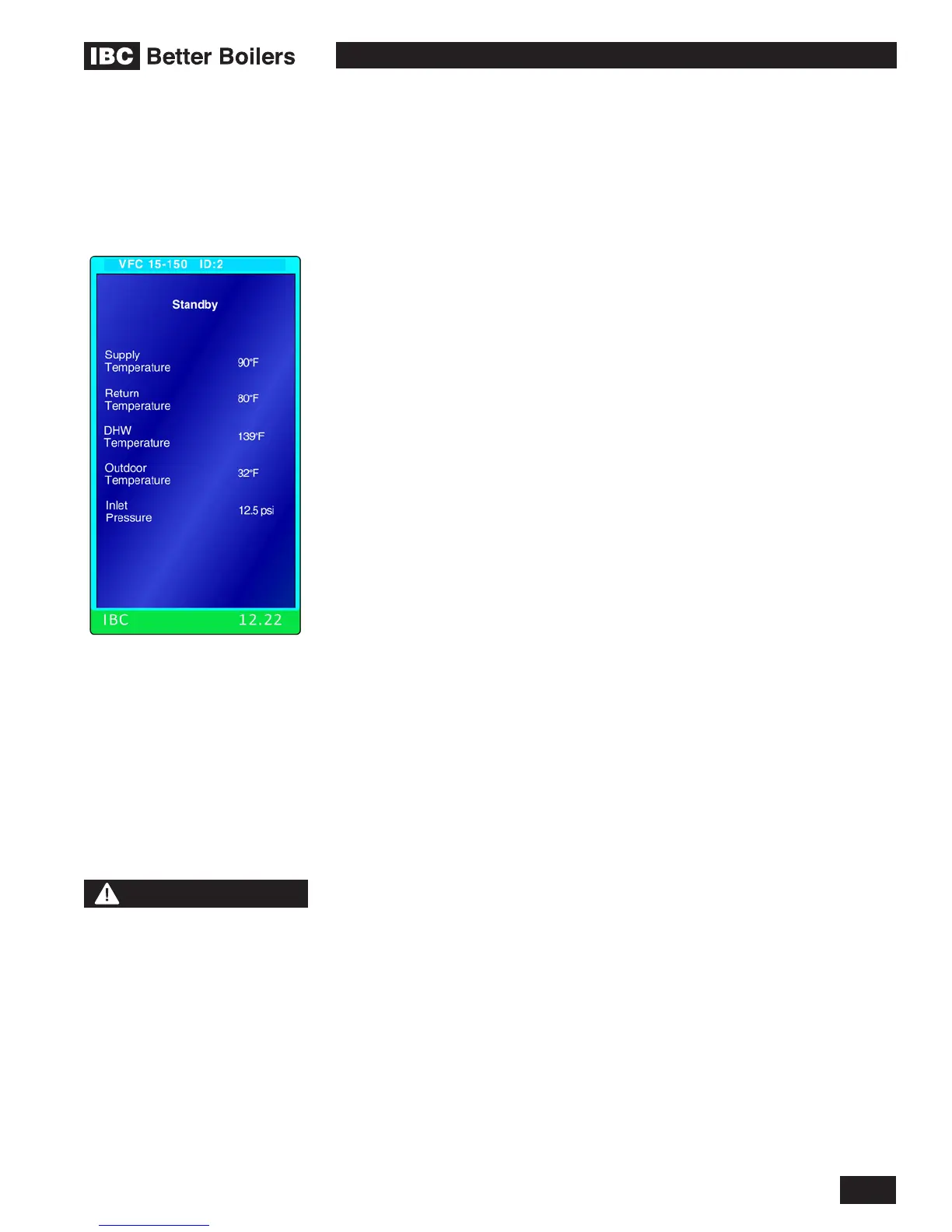

This boiler is equipped with the V-10 Touch Screen controller. The controller
simpliestheprogramingoftheboilerwhileprovidinggreaterexibility.Formore
detailed instructions, reference the Touch Screen Boiler Controller Manual.
The controller is equipped to provide:
• Control of up to 5 pumps – 1 boiler pump + 4 separate load pumps
• Outdoor Reset control
• Set Point temperature regulation
• Domestic Hot Water (DHW)
• External control via 0-10VDC or 4-20mA signaling
• Alarm dry contacts
• Load Combining – simultaneous operation of 2 similar water temperature
loads
• The control can manage and/or operate in a network of up to 24 IBC VFC or
SL boilers
Some of the new features available in the touch screen control include:
• Express Setup Menu for simple, quick programing
• SoftwareupdatableintheeldwithaSDcardoraUSBstick
• Setupcongurationback-upandcloningusingSDcardorUSBstick
• Superior warning messages while setting up the control
• Advanced Error messages with visual display on the Home Screen
• Internet/LAN connectivity
• BACnet (with activation)
CONTROL
Whentheboilerisrstenergized,thecontrollerwillgothroughapowerup
sequence that will take approximately 90 seconds. During this time the controller
is completing a self-diagnostic and loading all previous settings. In the event of
a power interruption the boiler will automatically resume operation when power
is restored with all the previously stored values. The controller provides overall
management of the boiler operations including;
• Power-up, Self-diagnostics, easy Load parameter adjustments
• Burner operation, safety management systems, Call for Heat management
and Load Priority
• Real time boiler data
• Temperature and throttle operation
• Maintenance of operational and error service logs
• 2-way communication between other IBC boilers and controls
2.1
2.2
WARNING
No sharp or metallic object
should be used on the touch
screen as this will cause
damage. Use only a Stylus or a
clean nger.”
