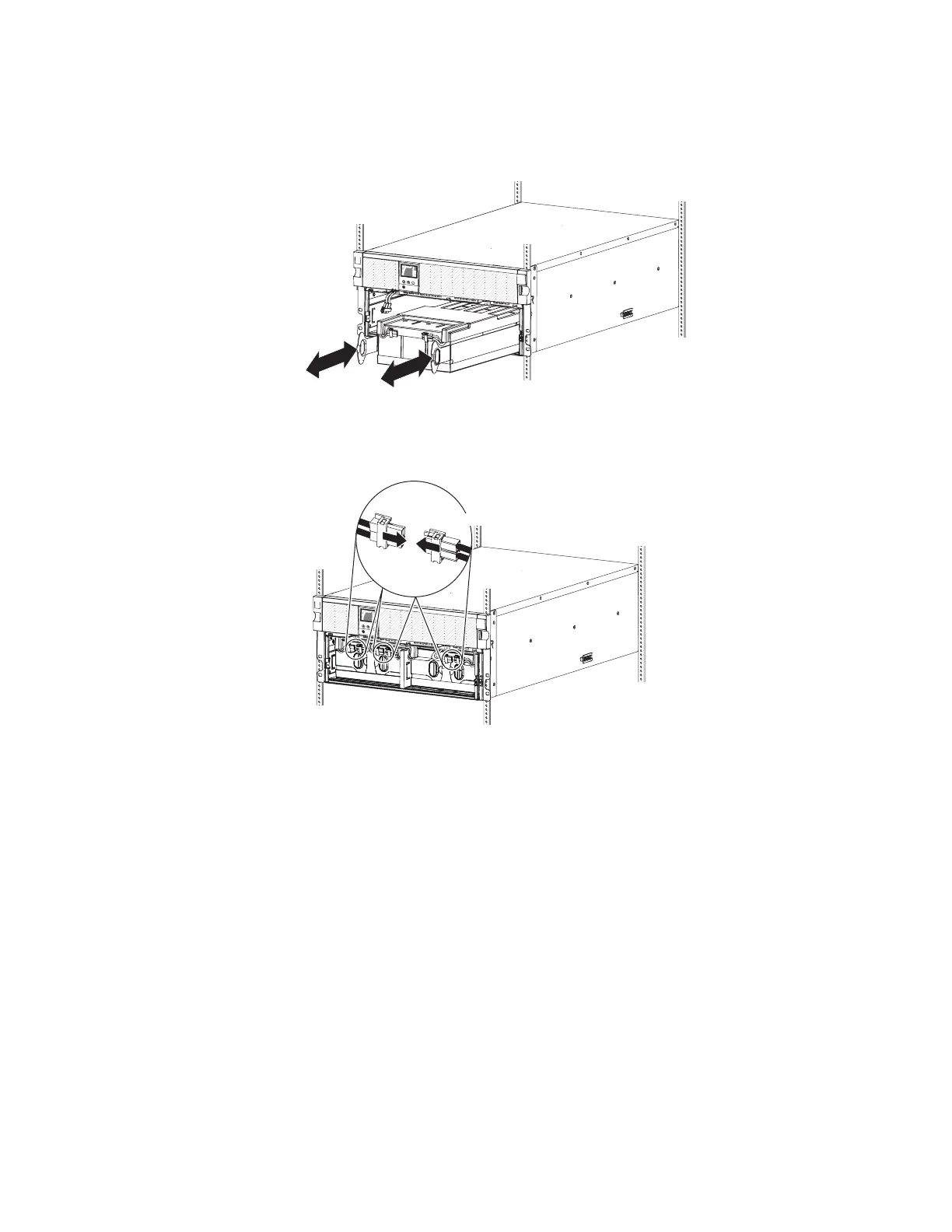

6. Remove the right internal battery module. With the required three people, use
the plastic tabs to pull the right internal battery module completely out of the
bay and recycle or discard it as instructed by local regulations.
O
K
OK
1
0
0
%
6
m
in
7. With the required three people, carefully slide one new battery module into the
UPS. Repeat this step for the second battery module.
8. Connect the three internal battery connectors.
O
K
OK
1
0
0
%
6
m
in
Note: A small amount of arcing might occur when you connect the batteries.
This is normal and does not damage the unit or present any safety concern.
Chapter 5. Hardware maintenance information 51
