v The drawer locks into place when opened all the way. To reduce pinching hazards, two latches must be
released before the drawer can be pushed back in.
Power and data are sent via three baseplanes and two sideplanes.
Each drawer can be locked shut by turning both anti-tamper locks clockwise using a screwdriver with a
Torx T20 bit (see Figure 7 on page 11). Each side of each drawer has a series of status LEDs, shown in the
following figure.
Important: During normal operation, drawers must be kept shut to ensure correct airflow and cooling.
Disk drives in carriers (DDICs)
Each drive is housed in a carrier (see the following figure) that enables secure insertion of the drive into
the drawer and contains the appropriate transition card:

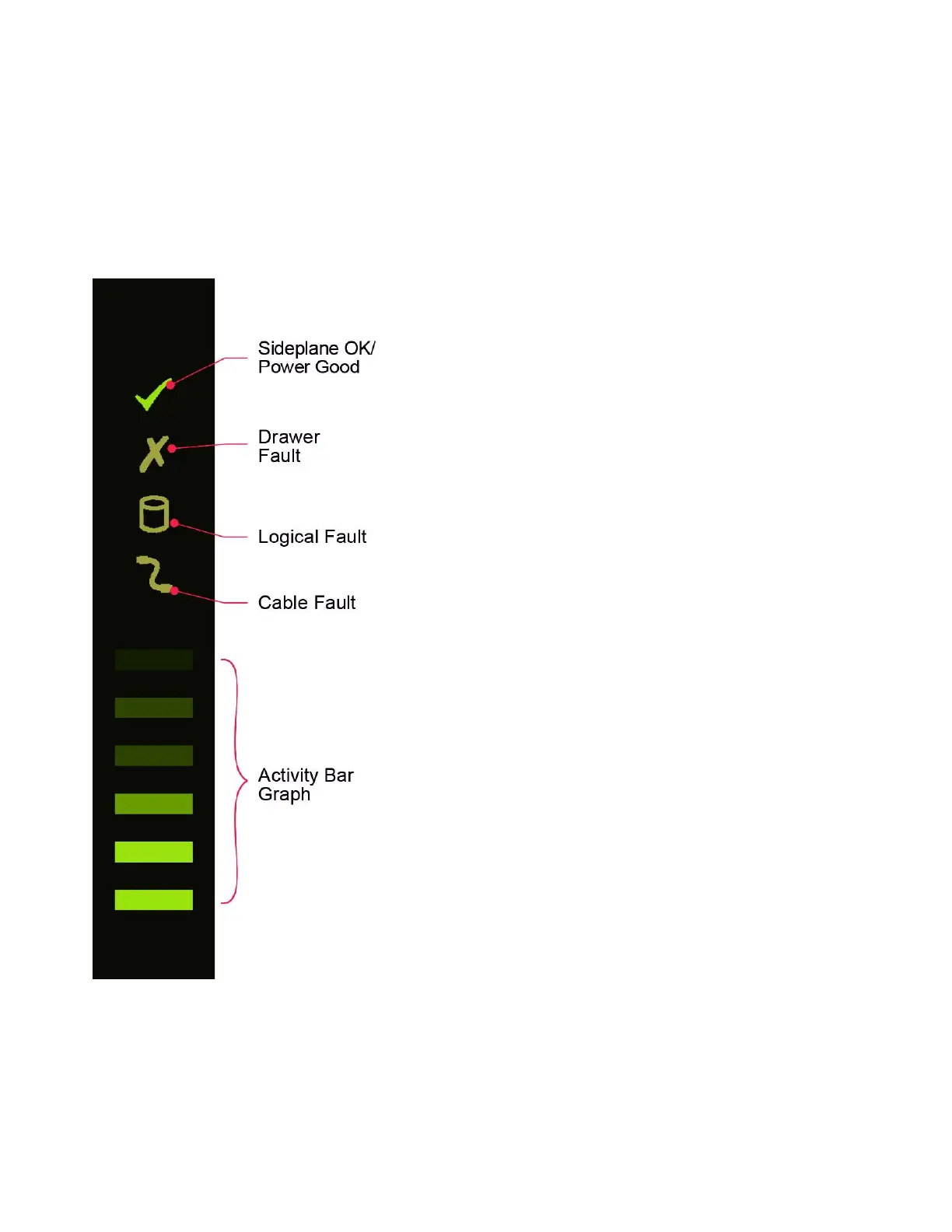

Figure 8. Drawer LEDs (left side only)
12 Installation and User Guide - Model 084
