3. The sliding nut head must always face away from the enclosure, whichever configuration is used.
CAUTION:
Use only the power cords supplied or cords that match the specification in Appendix B, "AC power
cords."
CAUTION:
After the enclosure is installed in the rack, dispose of the lifting straps. Due to the difficulty in
attaching the straps once the enclosure is installed in the rack, the straps are not suitable for removing
the enclosure from the rack.
Inserting modules
See the Chapter 6, “Module replacement,” on page 37 chapter for the following instructions:
v "Inserting a cooling module"
v "Inserting a PSU"
v "Inserting an SBB I/O module"
v "Inserting a DDIC"
Power cord connection
Observe all warnings related to power cords.

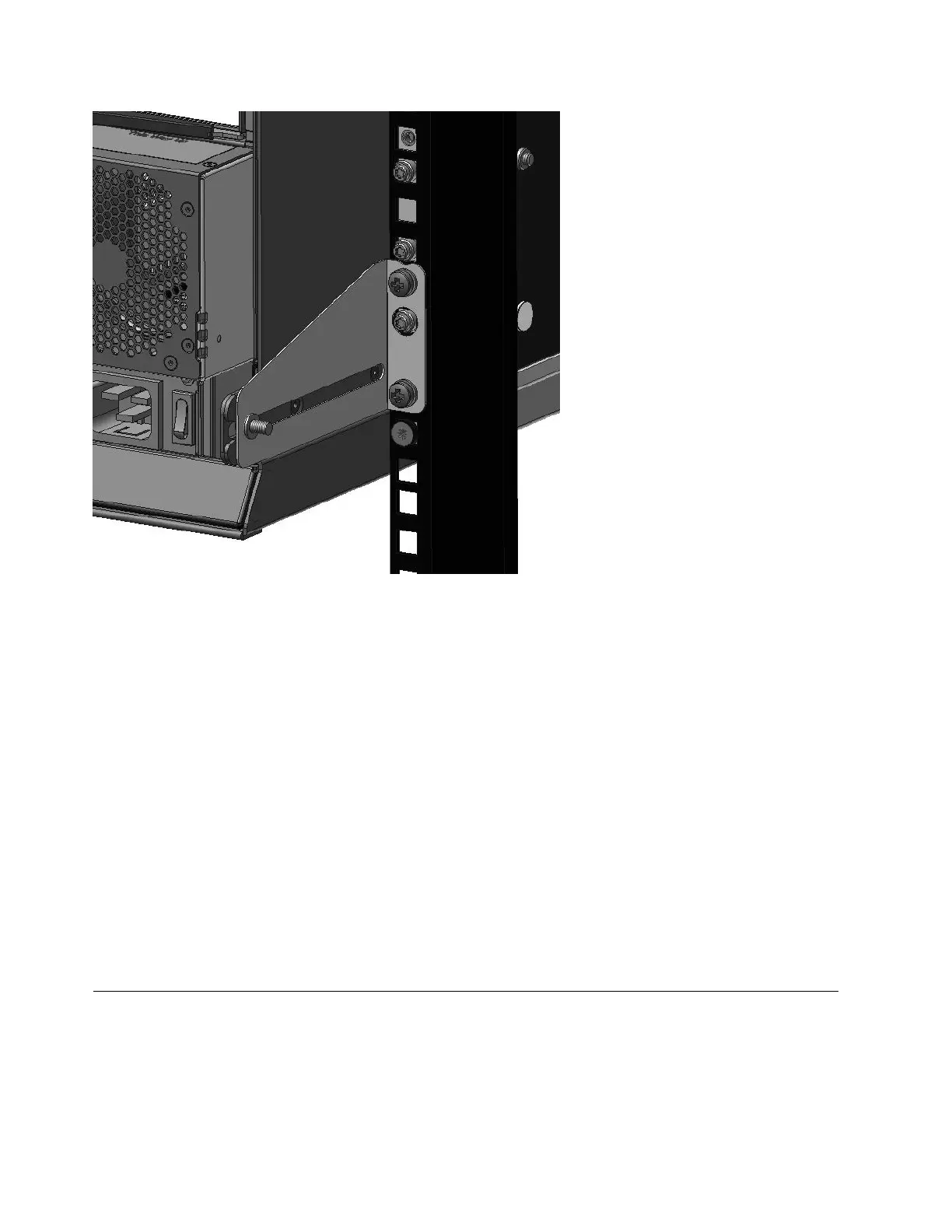

Figure 17. Rear enclosure mounting
22 Installation and User Guide - Model 084
