IBM 5147-084 User Manual

2. As shown in the following two figures, push down and hold the red release latch (1) and pull the
module out by its handle (2).

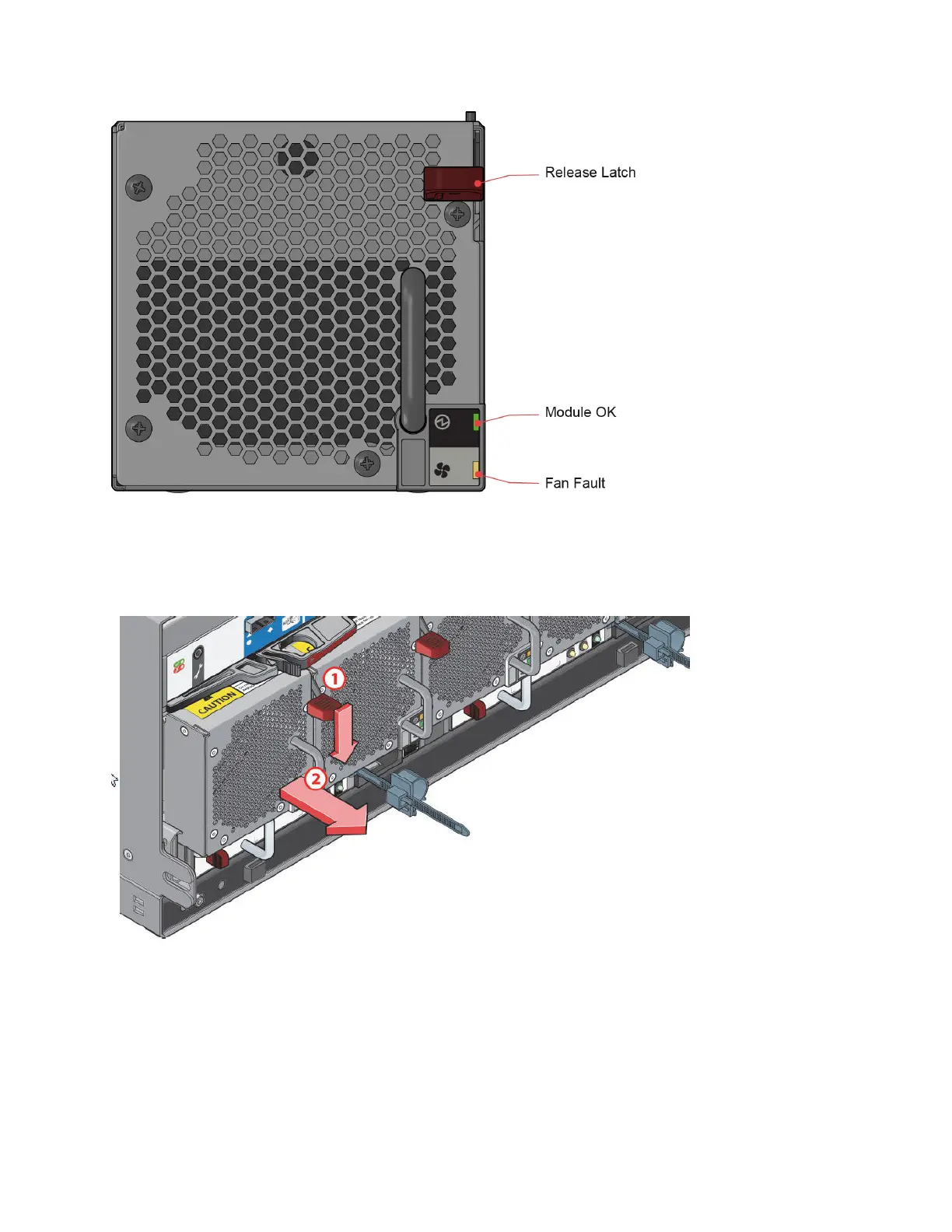

Figure 34. Cooling module LEDs
Figure 35. Removing a Cooling Module (1)
Chapter 6. Module replacement 43

IBM 5147-084 Specifications

General

Brand	IBM
Model	5147-084
Category	Network Storage Server
Language	English
