5. Pull the drive upward and out of the drawer.
Important: If you are not going to replace the drive immediately, close the drawer (see "Closing a
Drawer") so that correct airflow and cooling are maintained in the enclosure.
Inserting a DDIC
Important: Failed drives must be replaced with approved drives.
1. If the relevant drawer is not already open, open it using the instructions in "Opening a Drawer."
2. Lower the DDIC into the slot, with the drive capacity label facing towards you, as shown in the
following figure.
3. Push the DDIC downwards and hold it down while sliding the drive carrier plate in the direction
shown in the previous figure. This action locks the drive in place.
4. Check that the release latch has returned to its locked position, as shown in the following figure.

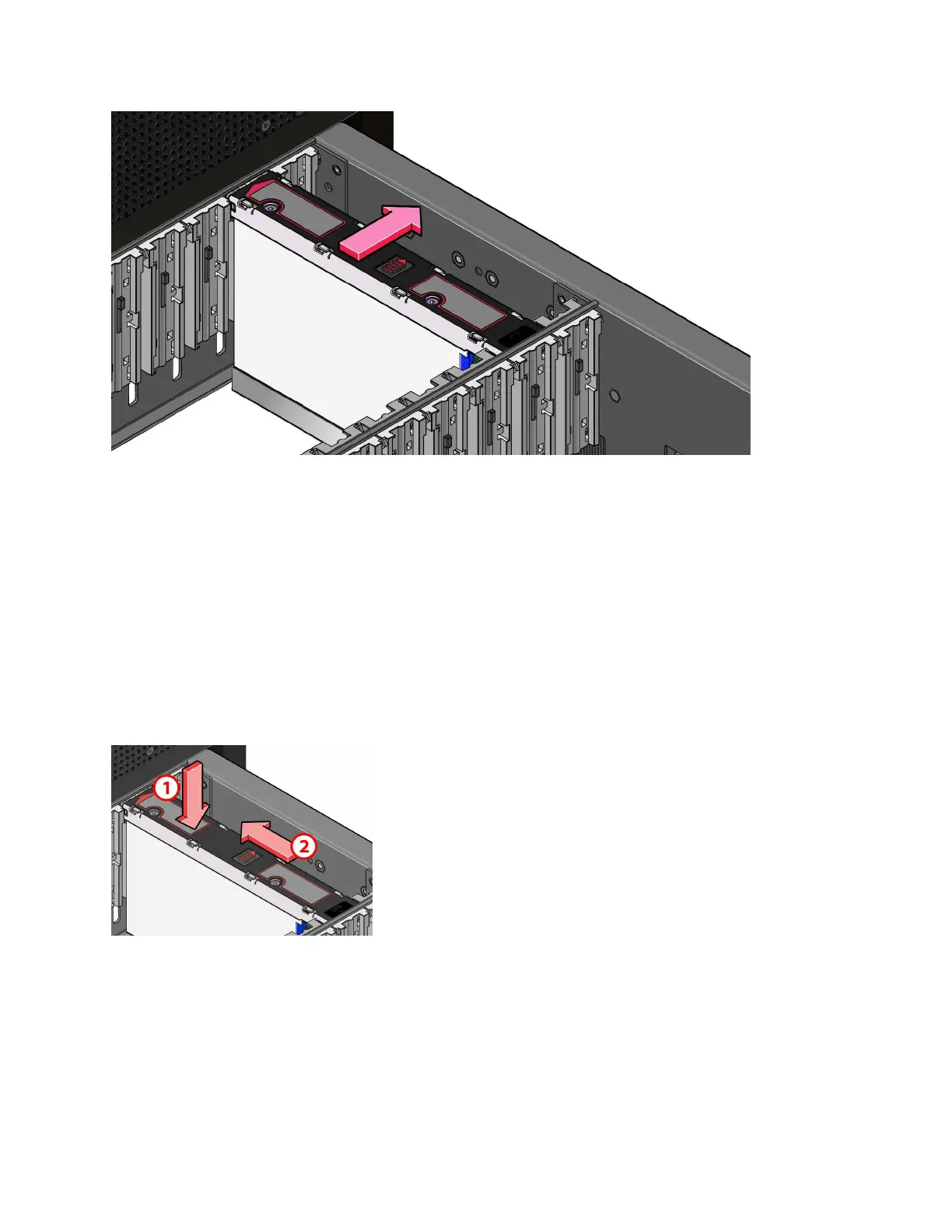

Figure 31. Removing a DDIC
Figure 32. Installing a DDIC
Chapter 6. Module replacement 41
