Opening a drawer
1. Make sure the anti-tamper locks are not engaged. The red arrows on the locks will point inwards if
the locks are disengaged (see the following figure). Unlock them if necessary by rotating them
counterclockwise using a screwdriver with a Torx T20 bit.
2. Push the drawer latches inward and hold them (see the following figure).
3. Pull the drawer all the way out until it locks open.
Important: The drawer must not be left open for more than two minutes while the enclosure is
powered.

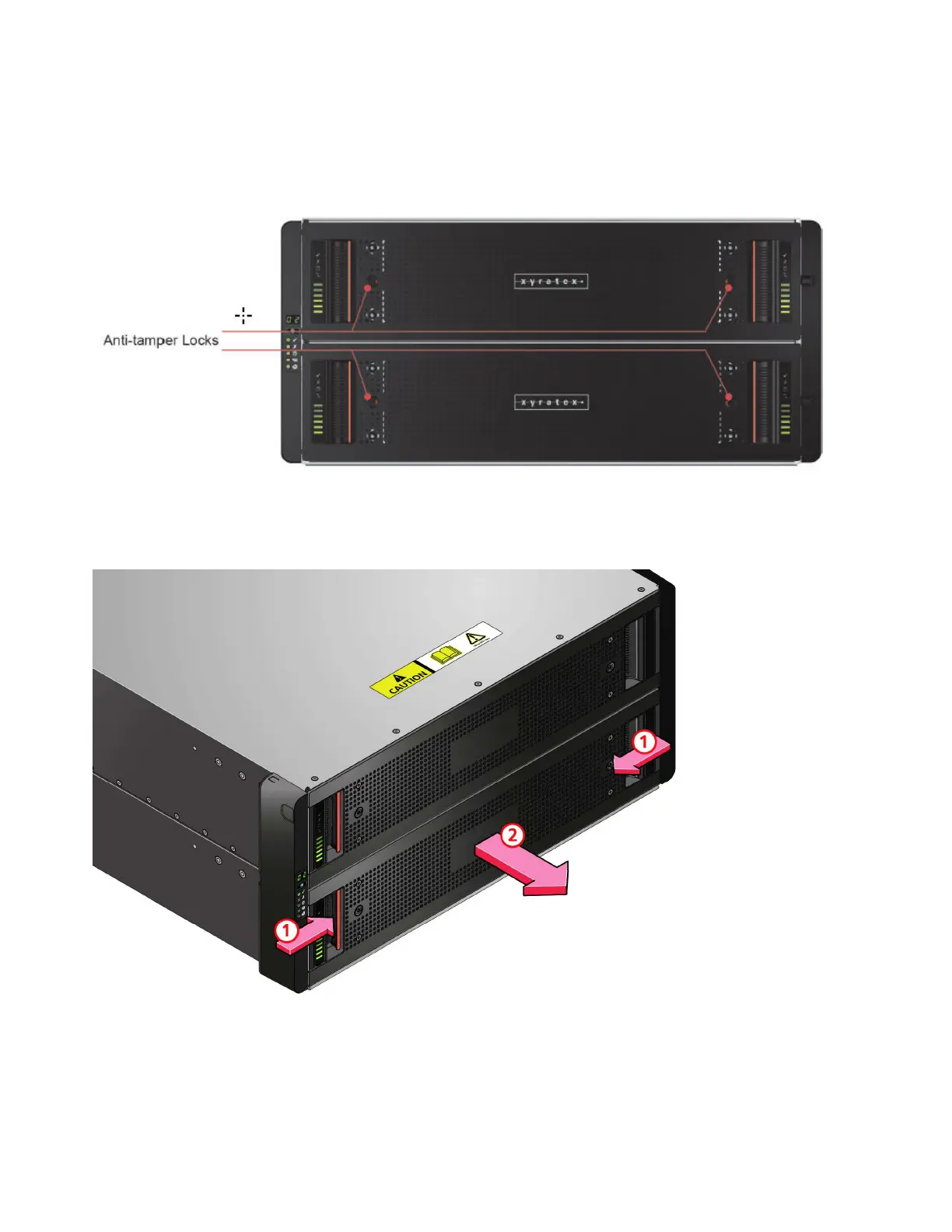

Figure 27. Anti-tamper locks (shown disengaged)
Figure 28. Opening the bottom drawer
38 Installation and User Guide - Model 084
