Ops panel LEDs
Ops panel LEDs indicate fault and status conditions.
The following table shows the possible conditions for the LEDs.
Table 1. Ops panel LEDs
LED
Power On/Standby Constant green: power is on
Constant amber: system is in standby (not operational)
Module Fault Constant or flashing amber: fault
Logical Status Constant or flashing amber: fault
Drawer 1 or Drawer 2 Fault Constant amber: fault in drive, cable or sideplane for specified drawer
The following figure shows the location of the LEDs.
Unit identification number
How to set the unit identification number
The unit identification number is set from the factory. In the event the unit identification number is not
set, the display is set to "00" (flashing). The enclosure continues to power up even when the unit
identification number is not set.

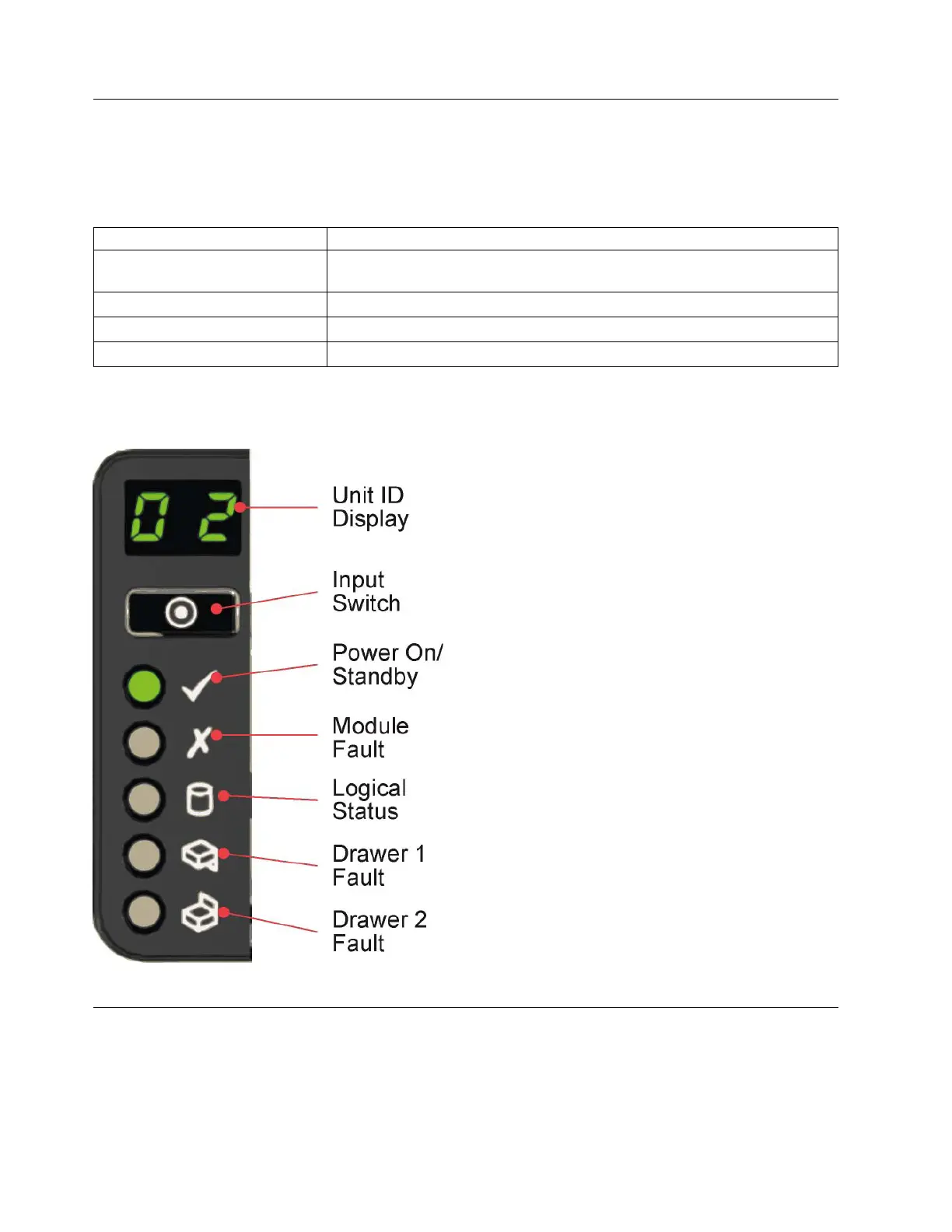

Figure 19. Ops panel LEDs
26 Installation and User Guide - Model 084
