Note: Some enclosure management features identify drive bays using a 1-based count (1–84) while
others use a 0-based count (0–83). For more information, contact the storage provider.
2. Open the relevant drawer using the instructions in "Opening a Drawer."
3. Locate the drive to be replaced, either by using the drive plan in the previous figure or by looking for
the amber LED on the drive that indicates a fault.
4. Push the drive carrier latch in the direction shown in the following figure to unlock the drive.

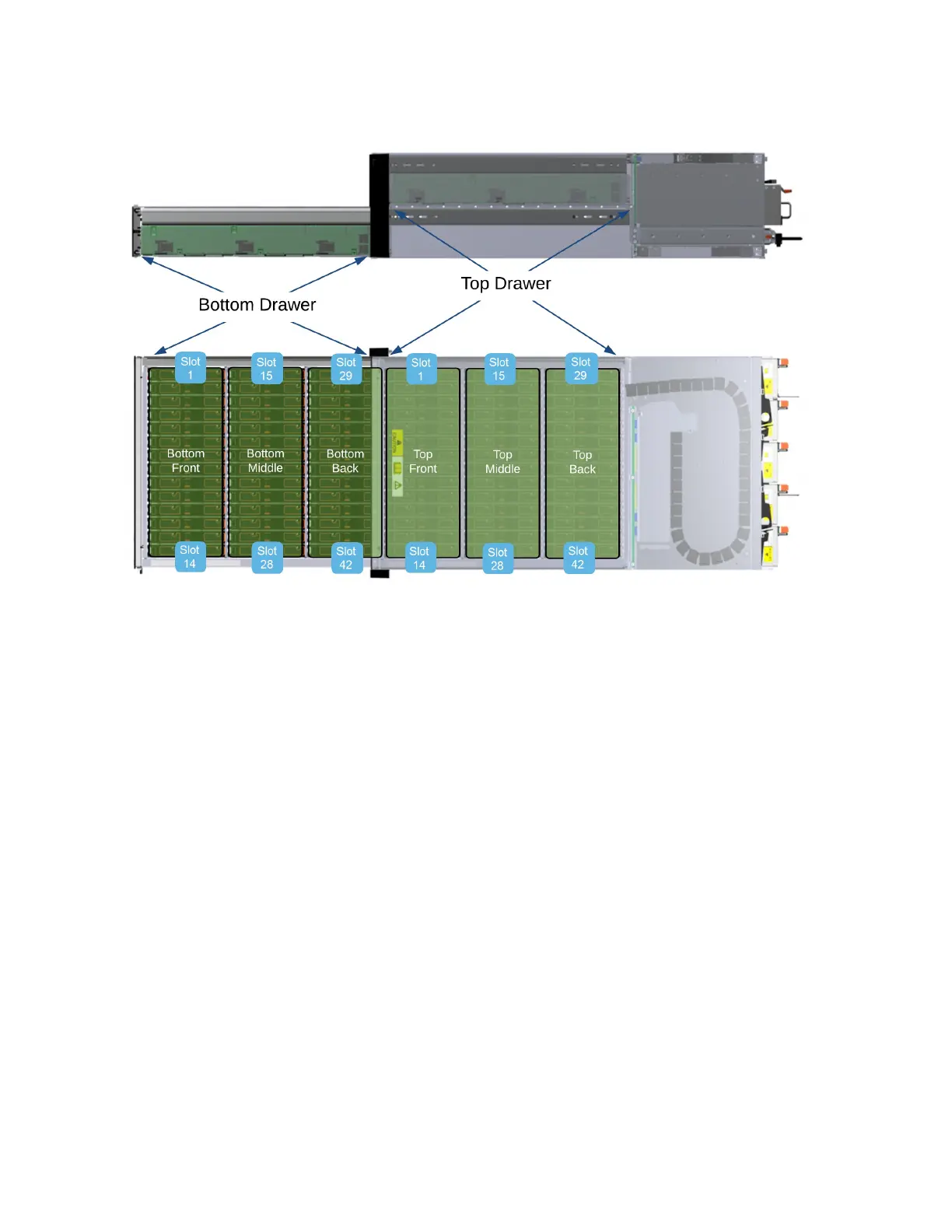

Figure 30. Drive location plan
40 Installation and User Guide - Model 084
