Installation

First, install the rail kit, then install the modules.

Installing the rail kit

CAUTION:

An unpopulated enclosure can weigh up to 46kg (101lb). Do not try to lift it by yourself.

Due to the weight of the enclosure, install it without the drive carriers.

The adjustment range of the rail kit, from the inside of the front post to the inside of the rear post is

660mm - 840mm. This suits a one meter deep rack within Rack Specification IEC 60297.

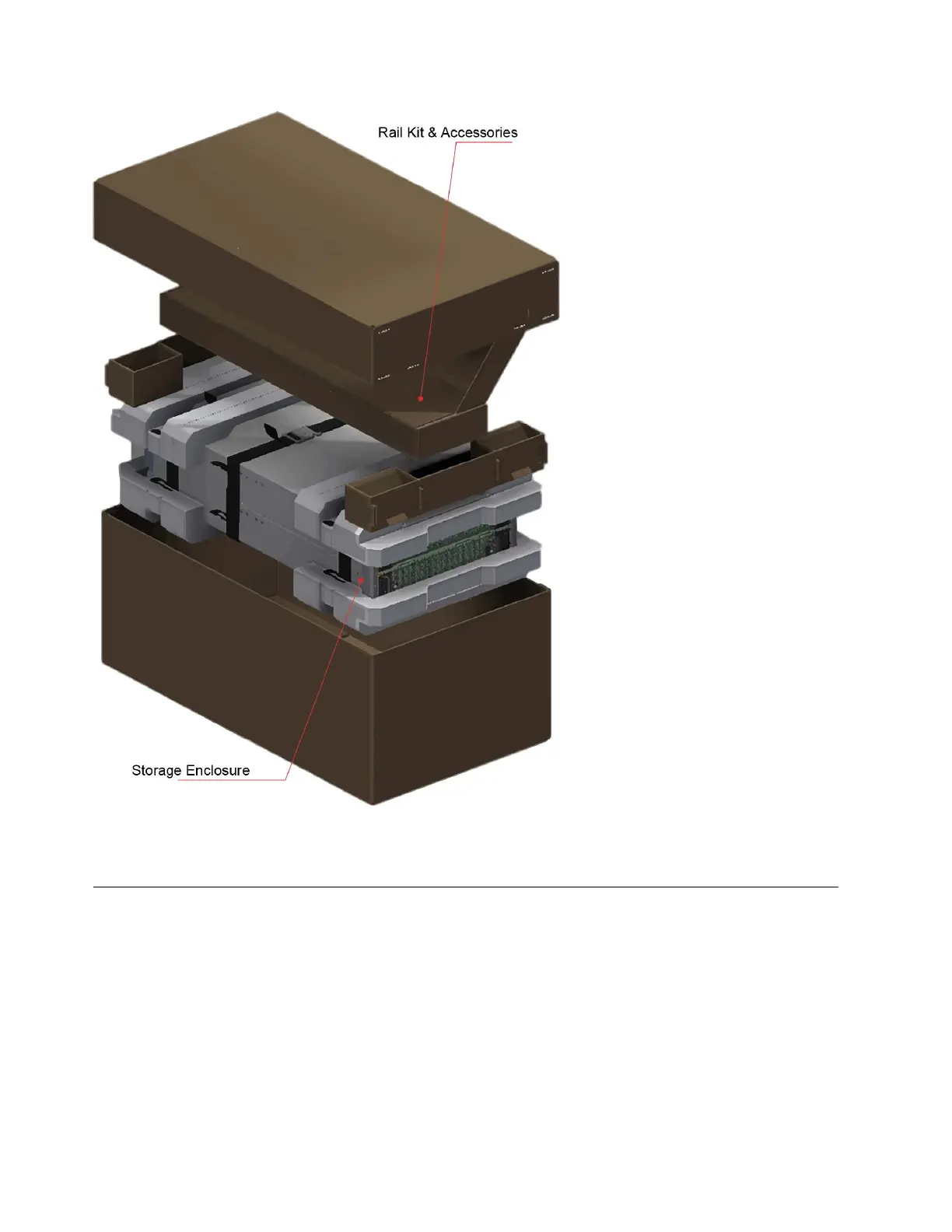

Figure 15. Unpacking the system

20 Installation and User Guide - Model 084
