Cooling module LEDs
Table 3. Cooling module LED descriptions
LED Description
Module OK Constant green indicates that the fan is working correctly. Off means the fan has
failed. Follow the procedure in "Replacing a Cooling Module."
Battery Fault Not currently used.
Fan Fault Amber indicates that a fan has failed. Follow the procedure in "Replacing a Cooling
Module."
Operator’s panel LEDs
The operator’s (ops) panel displays the aggregated status of all the modules, as shown in the following
figure.

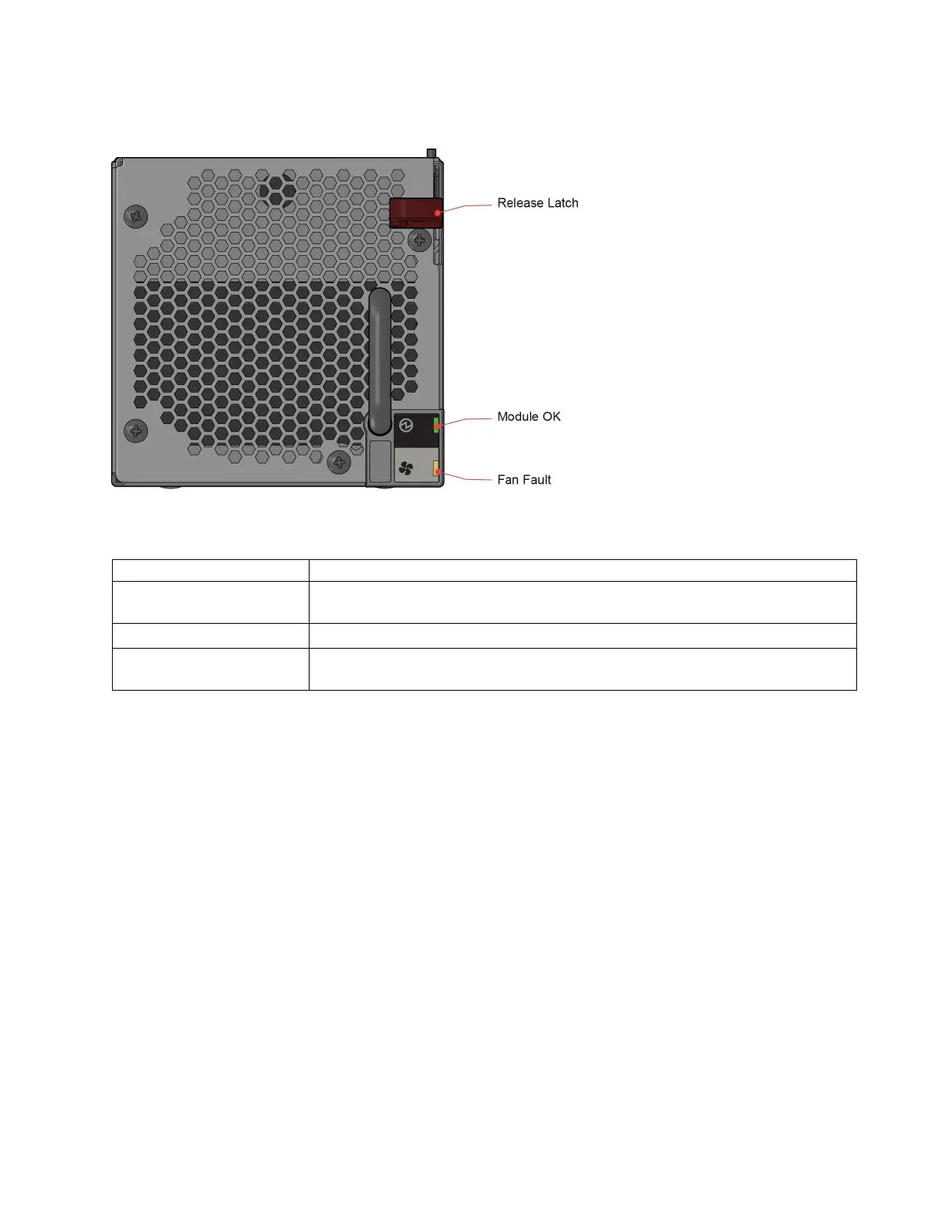

Figure 22. Cooling module LEDs
