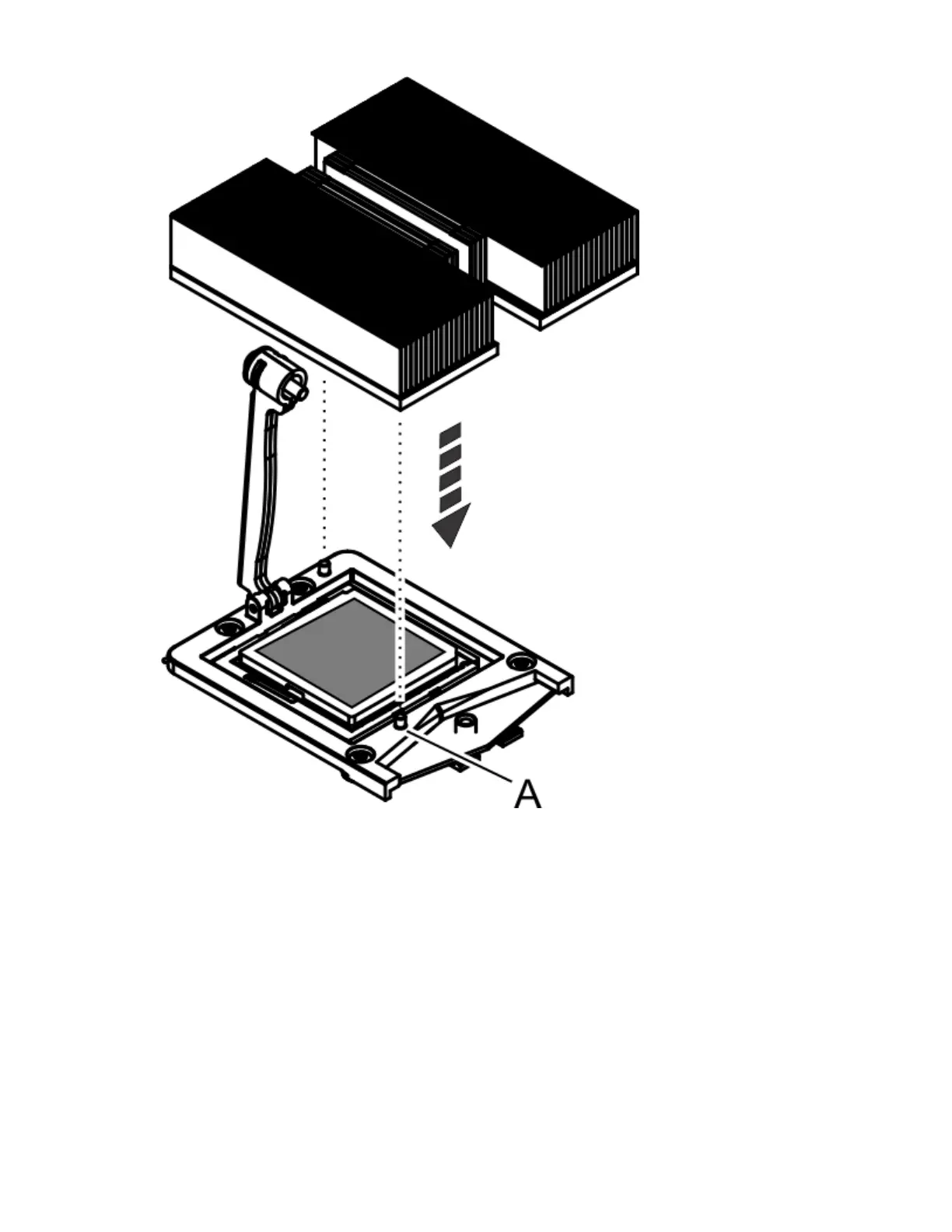

Figure 80. Installing the heat sink

20. Move the load arm (A) into position over the heat sink (B) and tighten the load arm screw with a T20

hexalobular driver, as shown in the following gure.

Note: Do not over tighten the load arm screw.

Removing and replacing parts in the 7063-CR2
