Installation tool
Handle

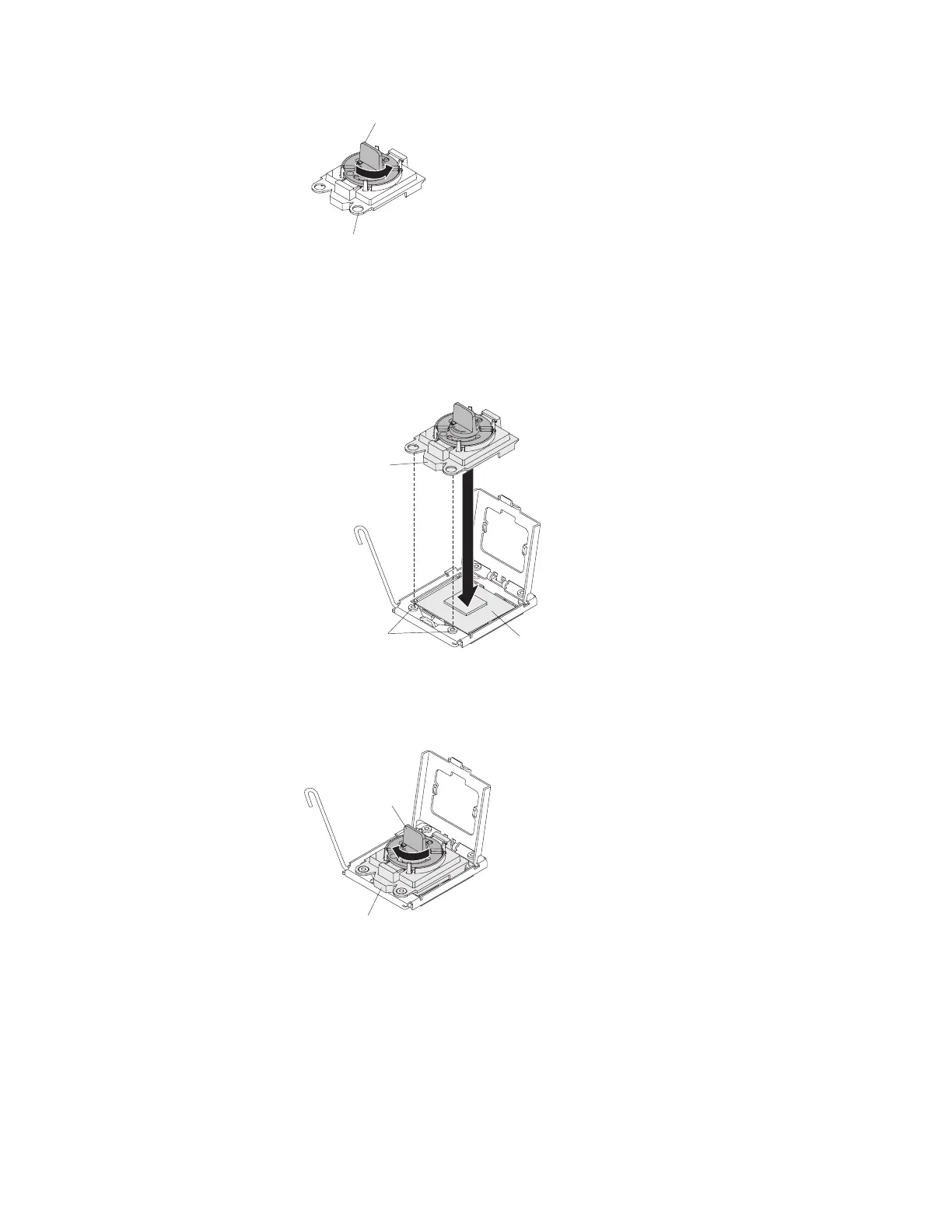

12. Place the microprocessor installation tool down over the microprocessor,
aligning the holes on the tool with the screws on the microprocessor bracket.
Note: The alignment holes on the tool will not sit flush on the microprocessor
bracket screws. However, the holes can be used as a guide to ensure the
proper alignment between the microprocessor installation tool and the
microprocessor bracket.
Installation tool
Microprocessor
Alignment pins
13. Twist the handle clockwise to attach the tool to the microprocessor.
Note: You can pick up or release the microprocessor by twisting the
microprocessor installation tool handle.
Installation tool
Handle
14. Carefully lift the microprocessor straight up and out of the socket, and place it
on a static-protective surface.
15. If you are instructed to return the microprocessor and heat sink, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Chapter 5. Removing and replacing blade server components 87
