7. Use your fingers to hold the edge of the CFFh expansion card where it
connects to the blade expansion connector; then, lift up on the card.
8. Pull the card away from the expansion-card standoff.
Removing a storage interface card
Use this information to remove a storage interface card from the blade server.

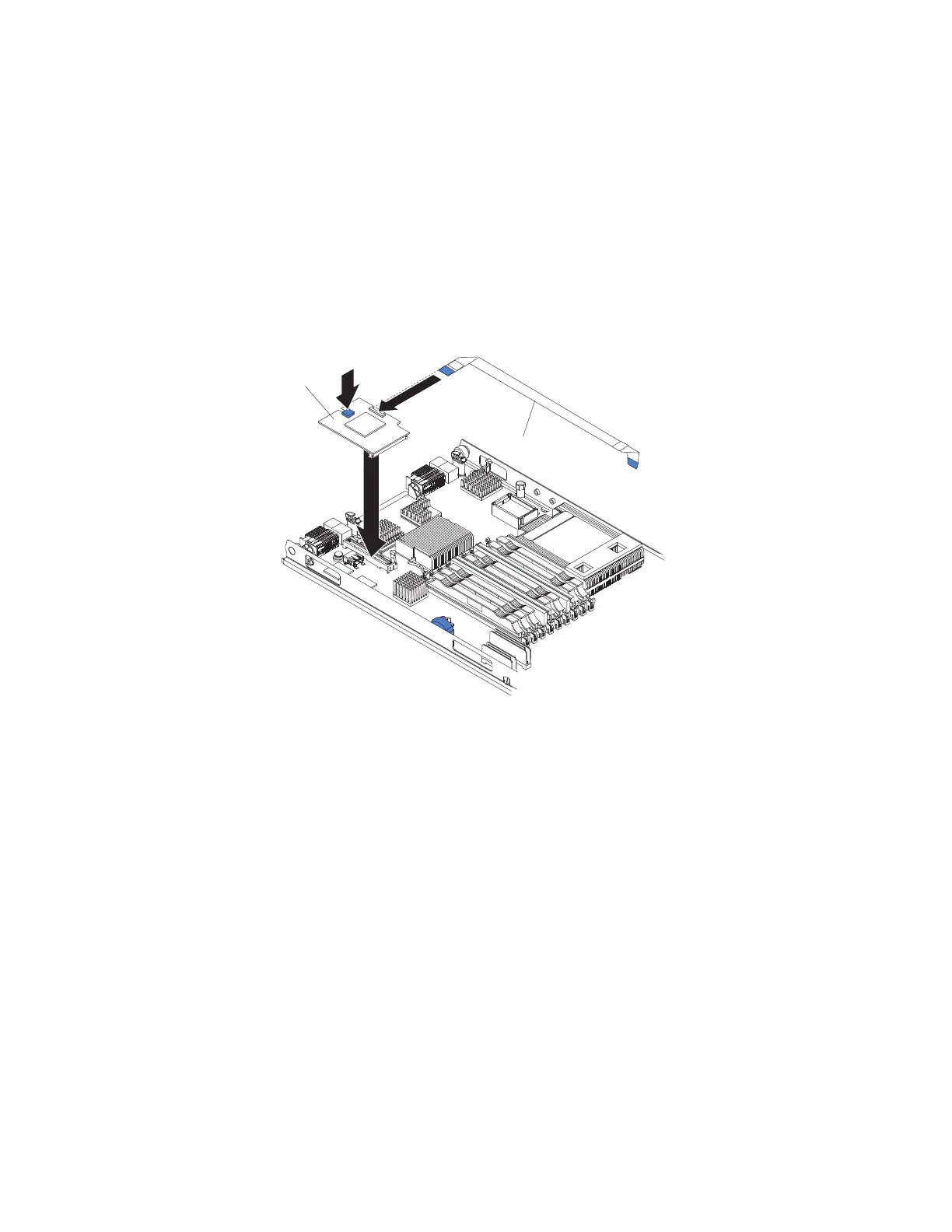

The storage interface card controls the SAS storage drives. The following
illustrations and installation instructions show how to remove a
ServeRAID-MR10ie CIOv storage interface card from the blade server. The
illustrations and removal instructions are similar for other CIOv storage interface
cards.
ServeRAID
controller
Cable "B "
To remove a storage interface card, complete the following steps.
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 49.
2. If the blade server is installed in a BladeCenter unit, remove it (see “Removing
the blade server from the BladeCenter unit” on page 52 for instructions).
3. Remove the blade server cover (see “Removing the blade server cover” on page
55 for instructions).
4. If an optional expansion unit is installed, remove the expansion unit (see
“Removing an optional expansion unit” on page 57). The storage-interface-card
option includes the storage interface card, backup battery, and backup-battery
cable. These parts can be removed separately from each other.
5. To remove the storage interface card, complete the following steps.
a. Locate the storage interface card installed in the CIOv connector on the
system board (see “Blade server connectors” on page 14).
76 BladeCenter HS22V Type 7871 and 1949: Problem Determination and Service Guide
