Removing an SSD storage tray
Use this information to remove an SSD storage tray.
The blade server has an SSD drive tray which contains two SSD storage bays for
installing SSD storage drives. To remove an SSD storage tray, complete the
following steps.
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 49.
2. Remove the blade server from the BladeCenter unit (see “Removing the blade
server from the BladeCenter unit” on page 52).
3. Remove the cover from the blade server (see “Removing the blade server
cover” on page 55).
4. If an expansion unit is installed, remove the expansion unit (see “Removing
an optional expansion unit” on page 57).
5. Remove the front bezel from the blade server (see “Removing the bezel
assembly” on page 59).
6. Locate the SSD storage tray (see “Blade server connectors” on page 14).
7. Remove any SSD storage drives from the SSD storage tray (see “Removing a
SSD storage drive” on page 61).
Attention: When you remove an SSD drive, use a felt-tip pen to write which
SSD connector the drive was removed from on the drive label. Installing an
SSD drive into a different SSD connector can damage the RAID configuration.

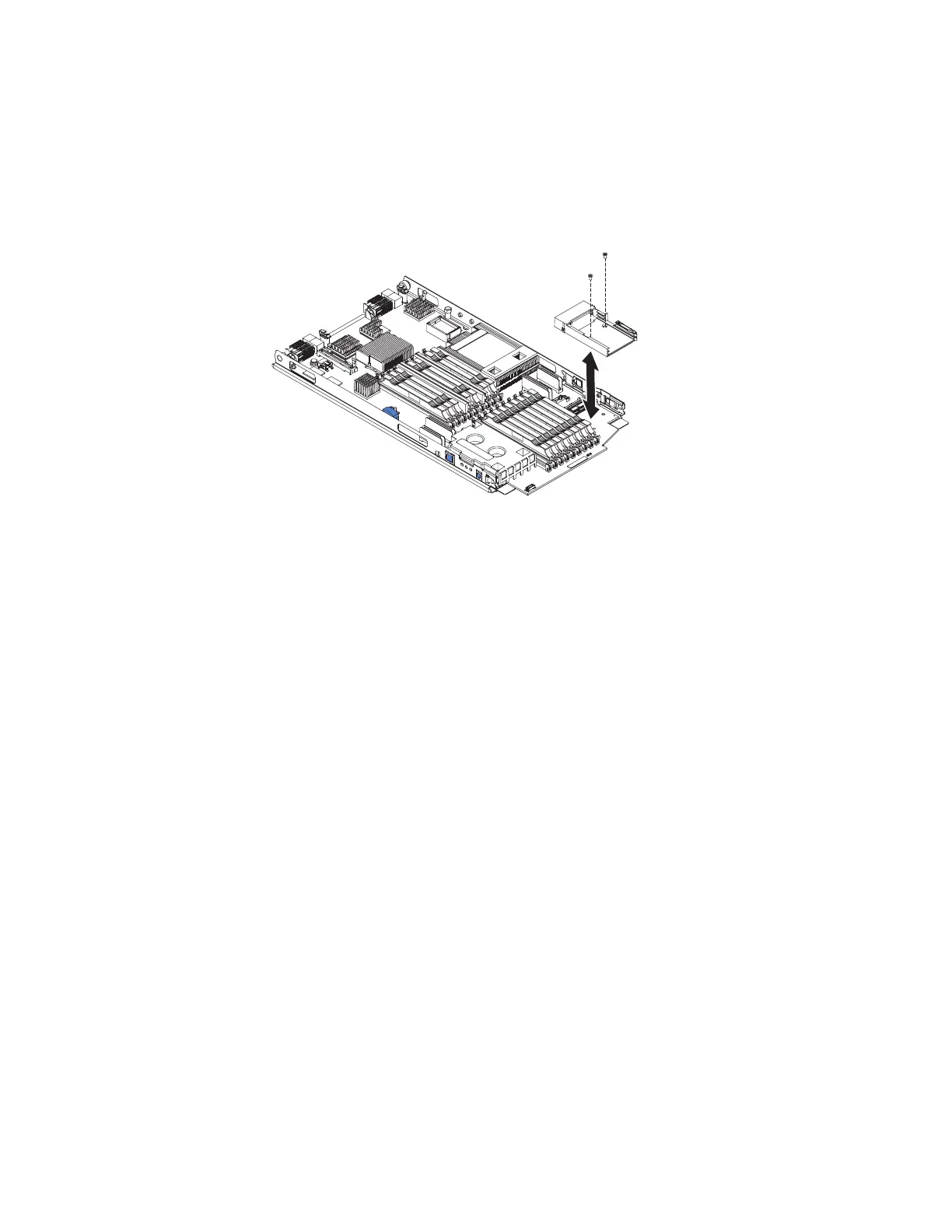

8. Using a screwdriver, remove the two screws that secure the SSD storage tray
to the blade server.
9. Use your fingers to lift the SSD storage tray from the blade server.
10. If you are instructed to return the storage drive, follow all packaging
instructions, and use any packaging materials for shipping that are supplied
to you.
Installing an SSD storage tray
Use these instructions to install an SSD storage tray in the blade server.
The blade server has an SSD drive tray which contains two SSD storage bays for
installing SSD storage drives.
To install an SSD storage tray, complete the following steps.
Chapter 5. Removing and replacing blade server components 83
