System-board layouts
Use this layout to locate connectors, LEDs and switches on the system board of the
blade server.
The following illustrations show the connectors, LEDs, and switches on the system
board. The illustrations in this document might differ slightly from your hardware.
Blade server connectors
Use this information to locate blade server system-board components and
connectors for optional devices.

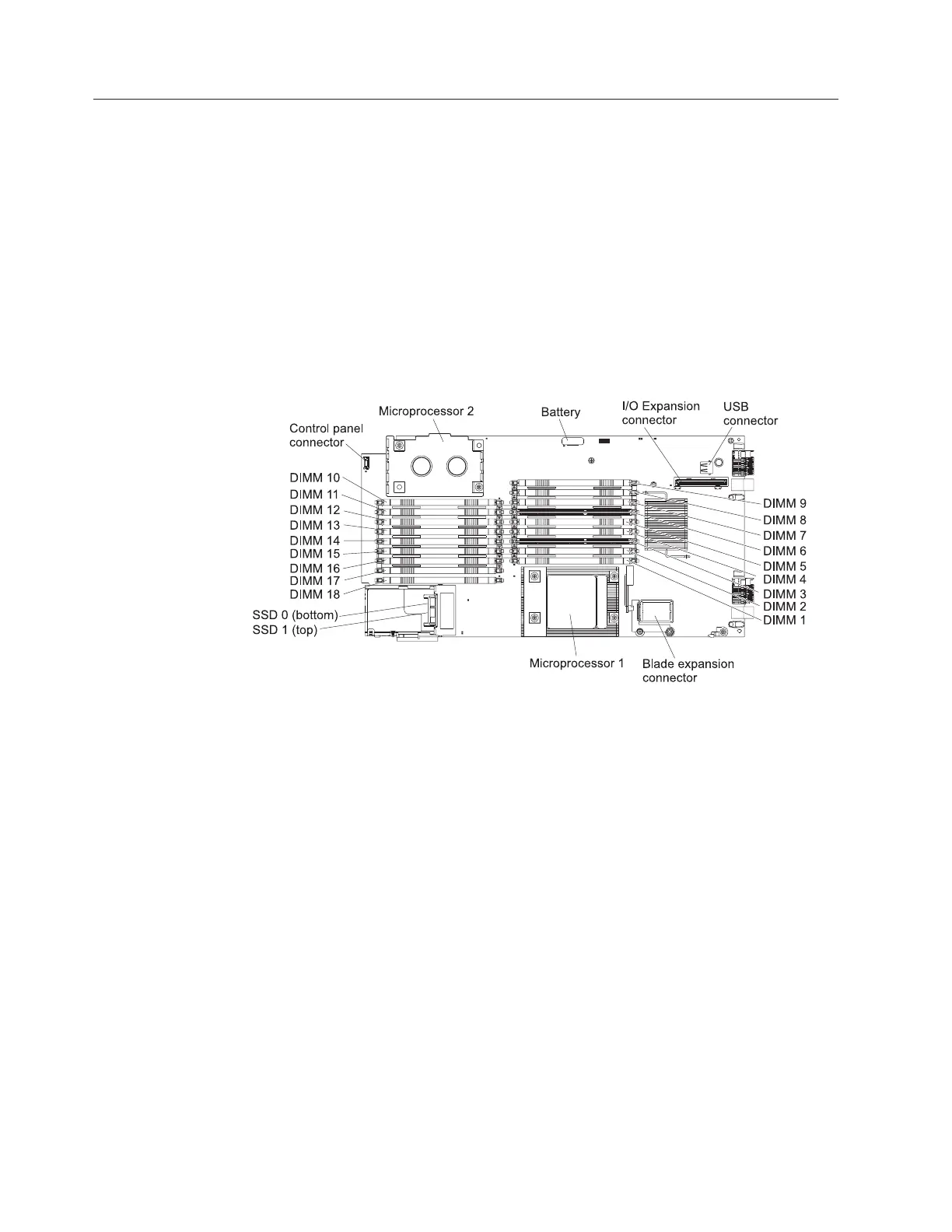

The following illustration shows the system-board components, including
connectors for user-installable optional devices, in the blade server.
14 BladeCenter HS22V Type 7871 and 1949: Problem Determination and Service Guide
