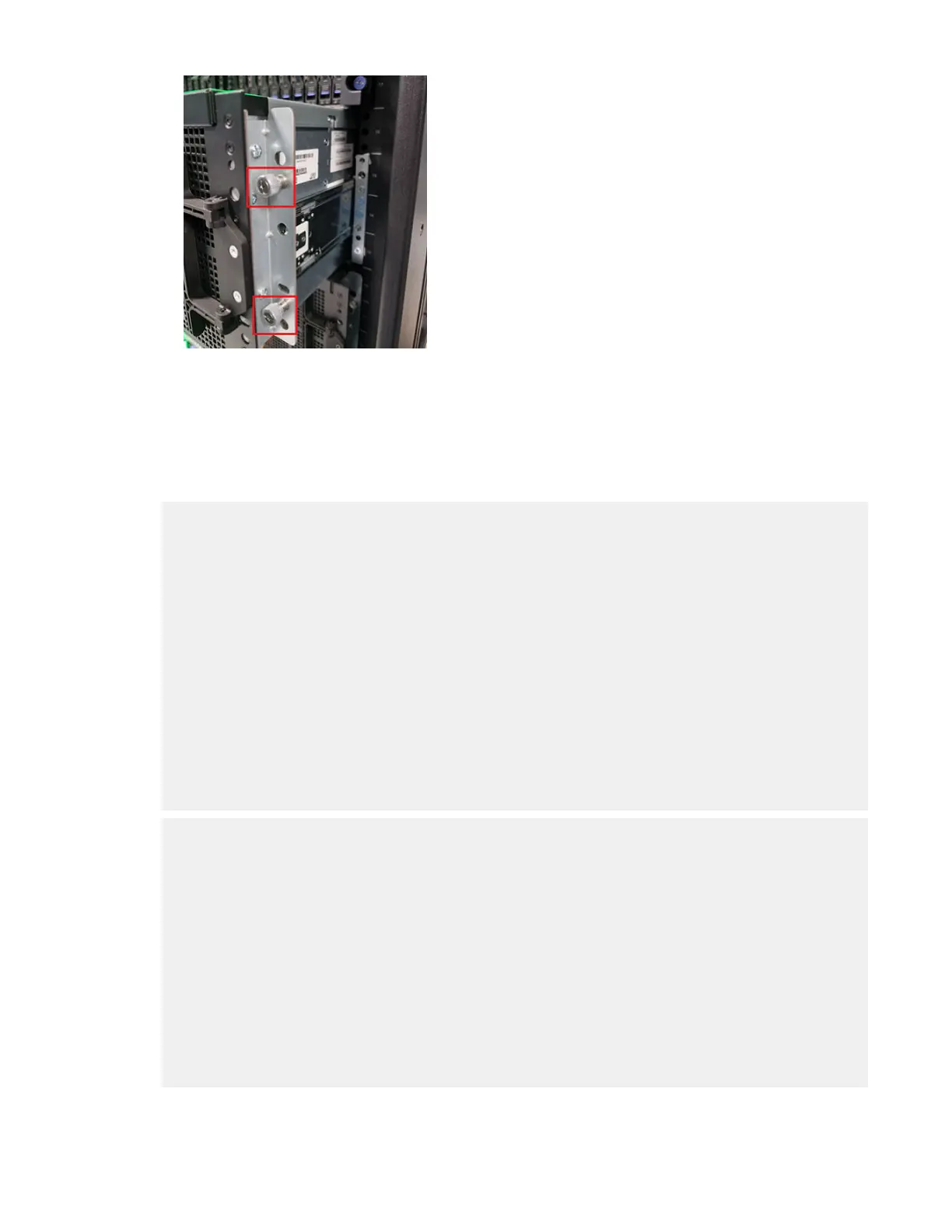

Figure 15. Thumbscrews to secure the enclosure
c. Tighten the two thumbscrews on each side of the enclosure to secure the enclosure to the rack
posts.
The enclosure is now returned to the rack and secured to the front rack posts.
11. Run common system health checks by using the SSR utility essutils to verify the health of the
system and to ensure that all 102 HDDs in the enclosure are discovered properly.
1. Quick storage configuration check
Running: /opt/ibm/ess/tools/bin/essstoragequickcheck -N localhost
[INFO] Start of storage quick configuration check
[INFO] nodelist: localhost
[INFO] Checking node: localhost
[INFO] IO Server/Canister Type: ESS3500-5141-FN2, Serial: 78E400QB
[OK] Valid SAS Adapter Configuration. Number of Adapter(s) found: 1
[INFO] Slots of SAS Adapter found 41:00.0,
[OK] Valid Network Adapter Configuration. Number of Adapter(s) found: 2
[INFO] Slots of Network Adapter found 08:00.1, c1:00.0, c1:00.1, 08:00.0,
[OK] NVMe Drv 15.36TB NVMe Tier-1 Flash found 24
[OK] Summary: total NVMe Drv found 24, expected NVMe Drv 24
[INFO] Found only Rotating disks inside enclosure.
[INFO] Enclosure 5147-102 found 1
[INFO] Disk ST10000NM0578 E found 102
[OK] Total disk found 102, expected 102
[INFO] Total ssd found 0, expected 0
[INFO] End of storage quick configuration check
[OK] essstoragequickcheck passed successfully
Press Enter to continue...
2. Check enclosure cabling and paths to disks
Running: /opt/ibm/ess/tools/bin/essfindmissingdisks -N localhost
[INFO] Start find missing disk paths
[INFO] nodelist: localhost
[INFO] May take long time to complete search of all drive paths
[INFO] Checking node: localhost
[INFO] Checking missing disk paths from node localhost
[INFO] GNR server: name ess3500rw6b-hs.test.net arch x86_64 model ESS3500-5141-FN2
serial 78E400QB
[INFO] Enclosure 78E400Q sees 24 disks (24 SSDs, 0 HDDs)
[INFO] Enclosure 78T254a sees 102 disks (0 SSDs, 102 HDDs)
[INFO] GNR server disk topology: ESS 3500 H1 (1 HBA 24 NVMe 1 Full 4U102) (match:
100/100)
[INFO] GNR configuration: 2 enclosures, 24 SSDs, 0 empty slots, 126 disks total, 0
NVRAM partitions
[INFO] Finish search for missing disk paths. Number of missing disk paths: 0
[OK] essfindmissingdisks passed successfully
Press Enter to continue...
12. Customer task: Include a newly installed HDDs to recovery group (RG).
10
IBM Elastic Storage System 5147-10 Storage Enclosure: Service Guide
