26 Installing the switch
2. Fix the left and right rails onto the rack. Use two M5 screws to fix the front
and two M5 screws to fix the rear of each rail onto the rack.

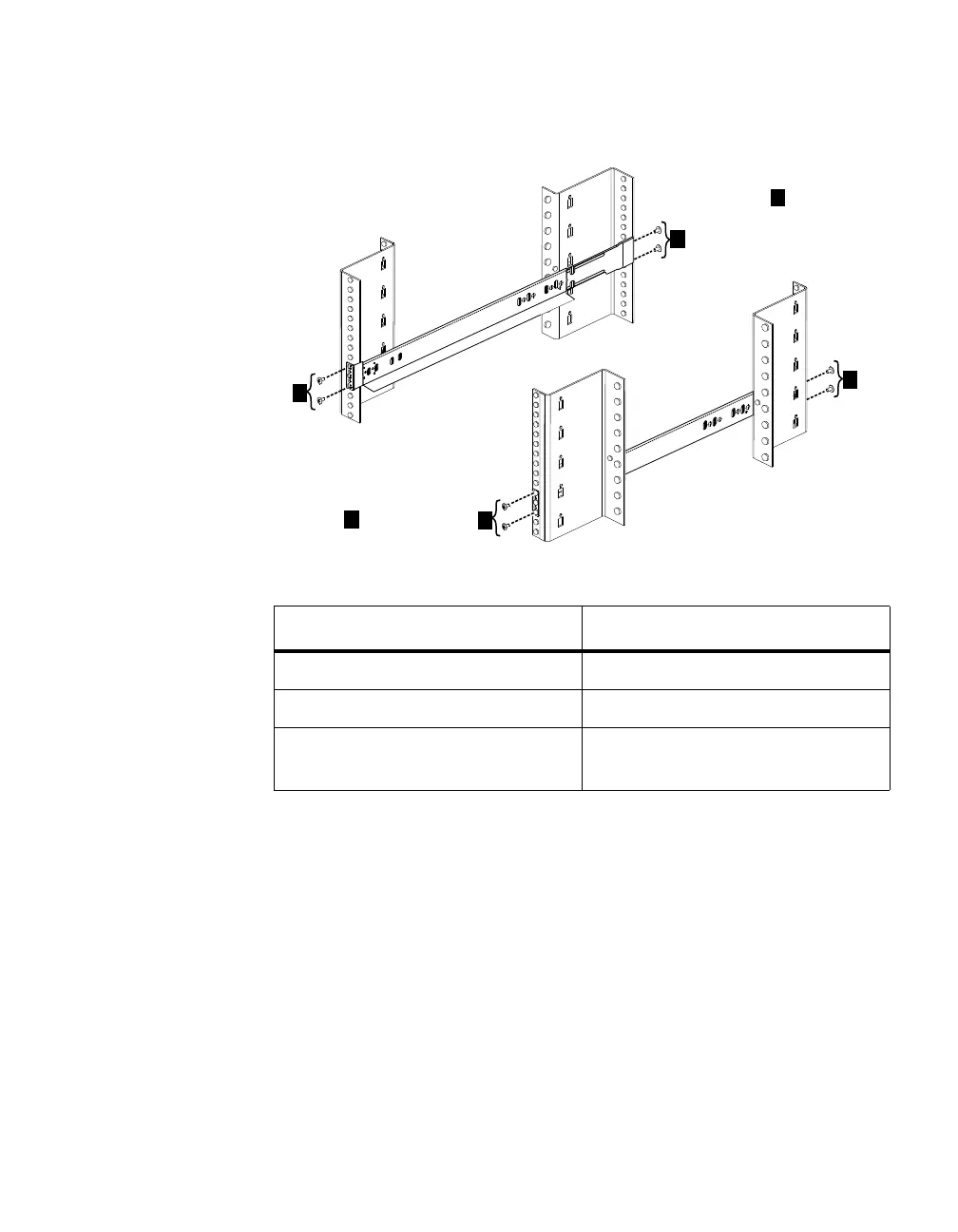

The table below lists the descriptions for each label in the diagram.
3. Slide the switch onto the supporting rails until the support brackets (on both
sides of the switch) touch the front flanges. Fix the front side of the switch to
the rails by using two M5 screws.
Label Description
1 The rear portion of the rack
2 The front portion of the rack
3 The M5 screws used to fix the rails
onto the rack
