Chapter 2. Architecture and technical overview 89

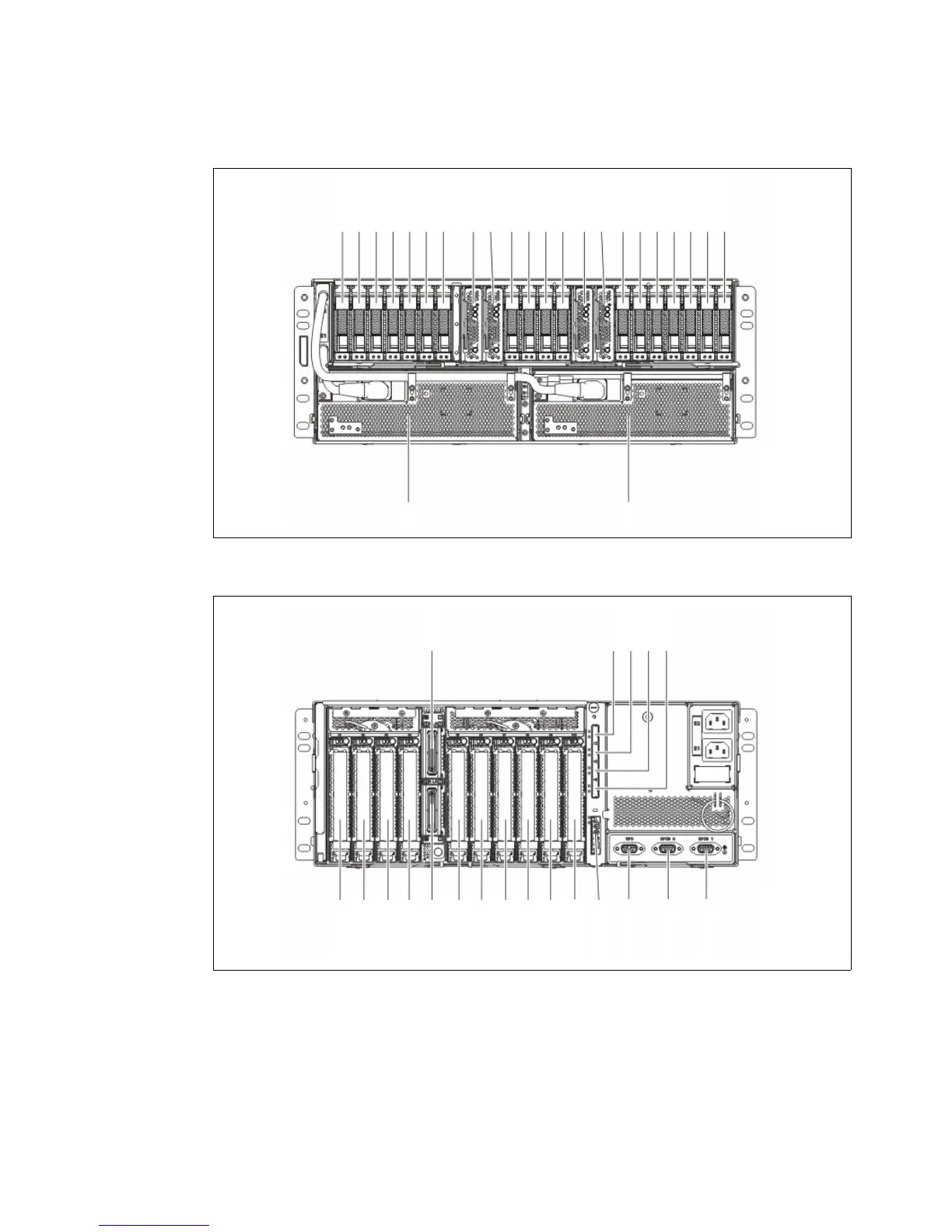

The location codes for the front and rear views of the FC 5802 I/O drawer are provided in
Figure 2-27 and Figure 2-28.
Figure 2-27 FC 5802 I/O drawer from view location codes
Figure 2-28 FC 5802 I/O drawer rear view location codes
Configuring the drawer FC 5802 disk drive subsystem
The drawer SAS disk drive enclosure can hold up 18 disk drives. The disks in this enclosure
can be organized in several configurations depending on the operating system used, the type
of SAS adapter card, and the position of the mode switch.
P3-D1 P3-D2 P3-D3 P3-D4 P3-D5 P3-D6 P3-D7 P3-C1 P3-C2 P3-D8 P3-D9 P3-D10 P3-D11 P3-C3 P3-C4 P3-D12 P3-D13 P3-D14 P3-D15 P3-D16 P3-D17 P3-D18
E1 E2
ARECW500-0
P1-C1 P1-C2 P1-C3 P1-C4
P1-T2
P1-C5 P1-C6 P1-C7 P1-C8 P1-C9
P1-C10
P4-T5
P2-T1 P2-T2 P2-T3
ARECW501-0
P4-T1 P4-T2 P4-T3 P4-T4
P1-T1
