2.8.10 Fibre Channel over Ethernet (FCoE)
FCoE allows for the convergence of Fibre Channel and Ethernet traffic onto a single
adapter and converged fabric.

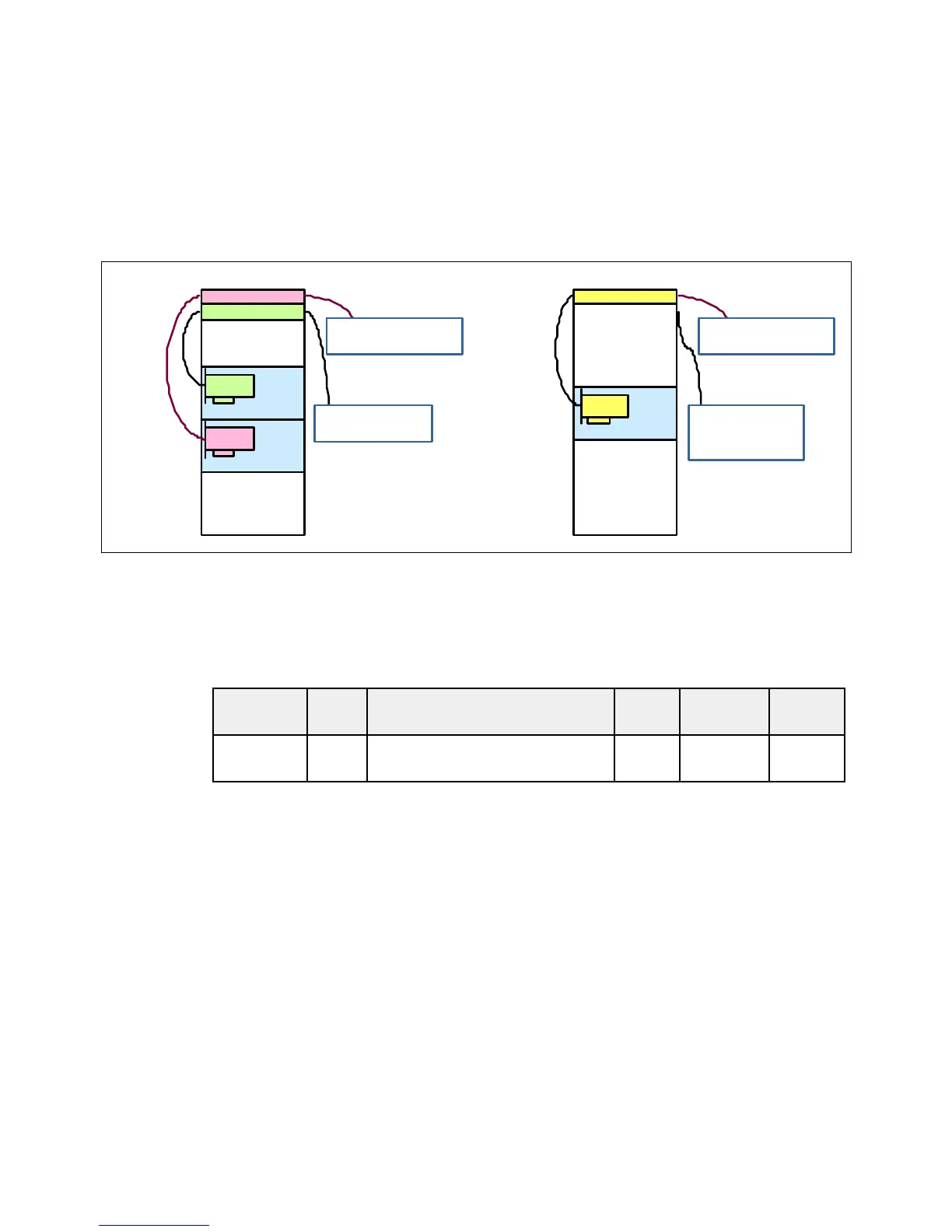

Figure 2-18 compares an existing Fibre Channel and network connection, and a
FCoE connection.
Figure 2-18 Comparison between existing Fibre Channel and network connection and FCoE connection
Table 2-18 lists the available Fibre Channel over Ethernet adapter. It is a high-performance
Converged Network Adapters (CNA) using SR optics. Each port can provide network
interface card (NIC) traffic and Fibre Channel functions simultaneously.
Table 2-18 Available FCoE adapter
For more information about FCoE, see An Introduction to Fibre Channel over Ethernet, and
Fibre Channel over Convergence Enhanced Ethernet, REDP-4493.
2.8.11 InfiniBand host channel adapter
The InfiniBand architecture (IBA) is an industry-standard architecture for server I/O and
inter-server communication. It was developed by the InfiniBand Trade Association (IBTA) to
provide the levels of reliability, availability, performance, and scalability necessary for present
and future server systems with levels significantly better than can be achieved by using
bus-oriented I/O structures.
InfiniBand (IB) is an open set of interconnect standards and specifications. The main
IB specification is published by the InfiniBand Trade Association and is available at the
following location:
http://www.infinibandta.org/
