Chapter 1. General description 5
The IBM Systems Energy Estimator is a web-based tool for estimating power requirements
for IBM Power Systems. You can use this tool to estimate typical power requirements (watts)
for a specific system configuration under normal operating conditions:
http://www-912.ibm.com/see/EnergyEstimator/
1.3 Physical package
Table 1-2 lists the physical dimensions of an individual enclosure. Both servers are available
only in a rack-mounted form factor. They are modular systems that can be constructed from
one to four building-block enclosures. Each of these enclosures can take 4U (EIA units) of
rack space. Thus, a two-enclosure system requires 8U, three enclosures require 12U, and
four enclosures require 16U.
Table 1-2 Physical dimensions of a Power 770 and Power 780 enclosure

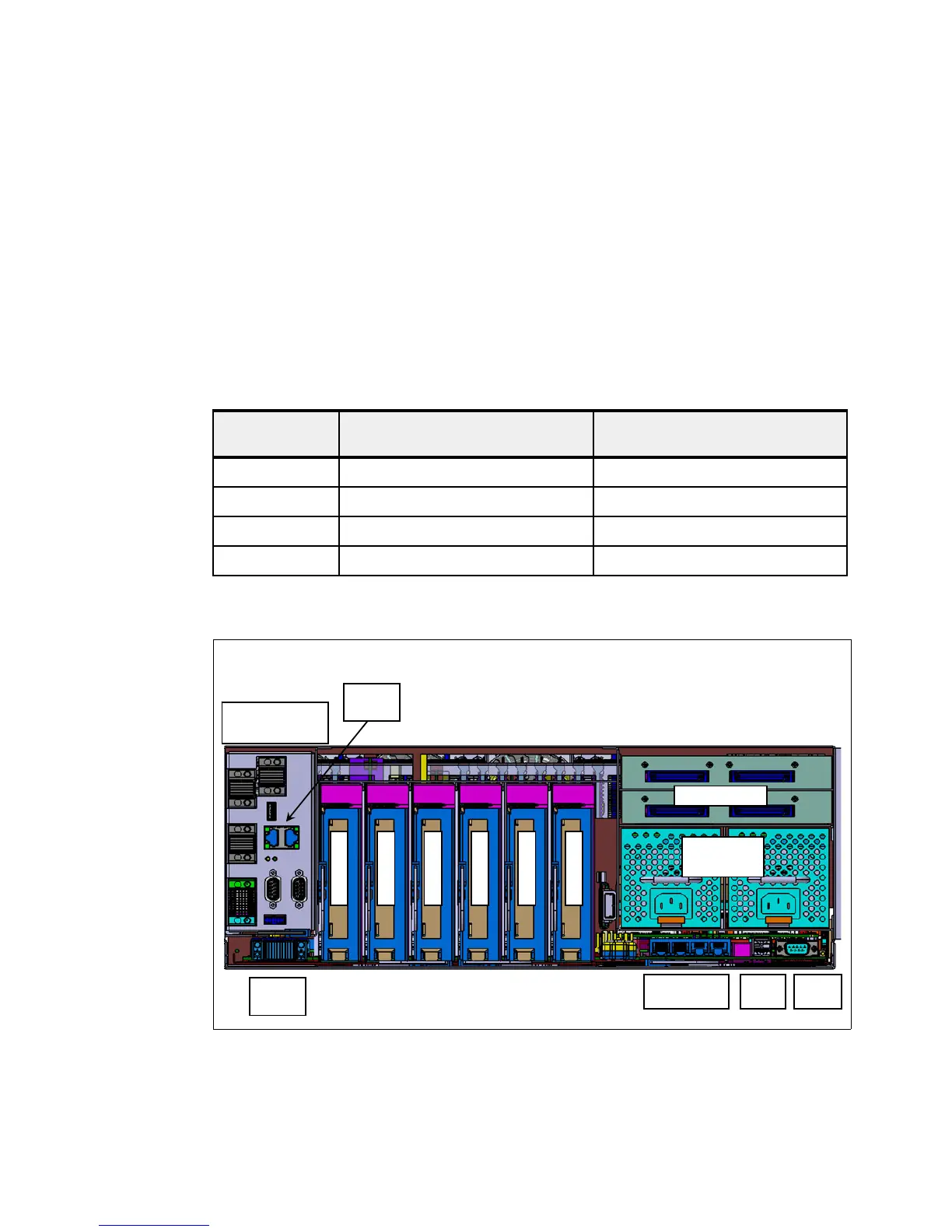

Figure 1-2 shows the rear view of the Power 770 and Power 780.
Figure 1-2 Rear view of the Power 770 and Power 780
Dimension Power 770 (Model 9117-MMD)
single enclosure
Power 780 (Model 9179-MHD)
single enclosure
Width 483 mm (19.0 in) 483 mm (19.0 in)
Depth 863 mm (32.0 in) 863 mm (32.0 in)
Height 174 mm (6.85 in), 4U (EIA units) 174 mm (6.85 in), 4U (EIA units)
Weight 70.3 kg (155 lb) 70.3 kg (155 lb)
GX++ Bus
Integrated
Ports
Power
Supplies
FSP
connectors
P
C
I
e
P
C
I
e
P
C
I
e
P
C
I
e
P
C
I
e
P
C
I
e
SPCN
Ports
Serial
Port
USB
Ports
Power 770 and Power 780 enclosure rear view
HMC
Ports
