Removing the side cover from a stand-alone 8286-41A system with an internal
RDX docking station
Use this procedure to remove the side cover from a stand-alone 8286-41A system with an internal RDX
docking station so that you can access components or perform service.
To remove the side cover, complete the following steps:
1. Remove the plastic piece within the interior of the handle cover by pushing the latches on the inside
firmly and sliding it out. See Figure 132 on page 151.

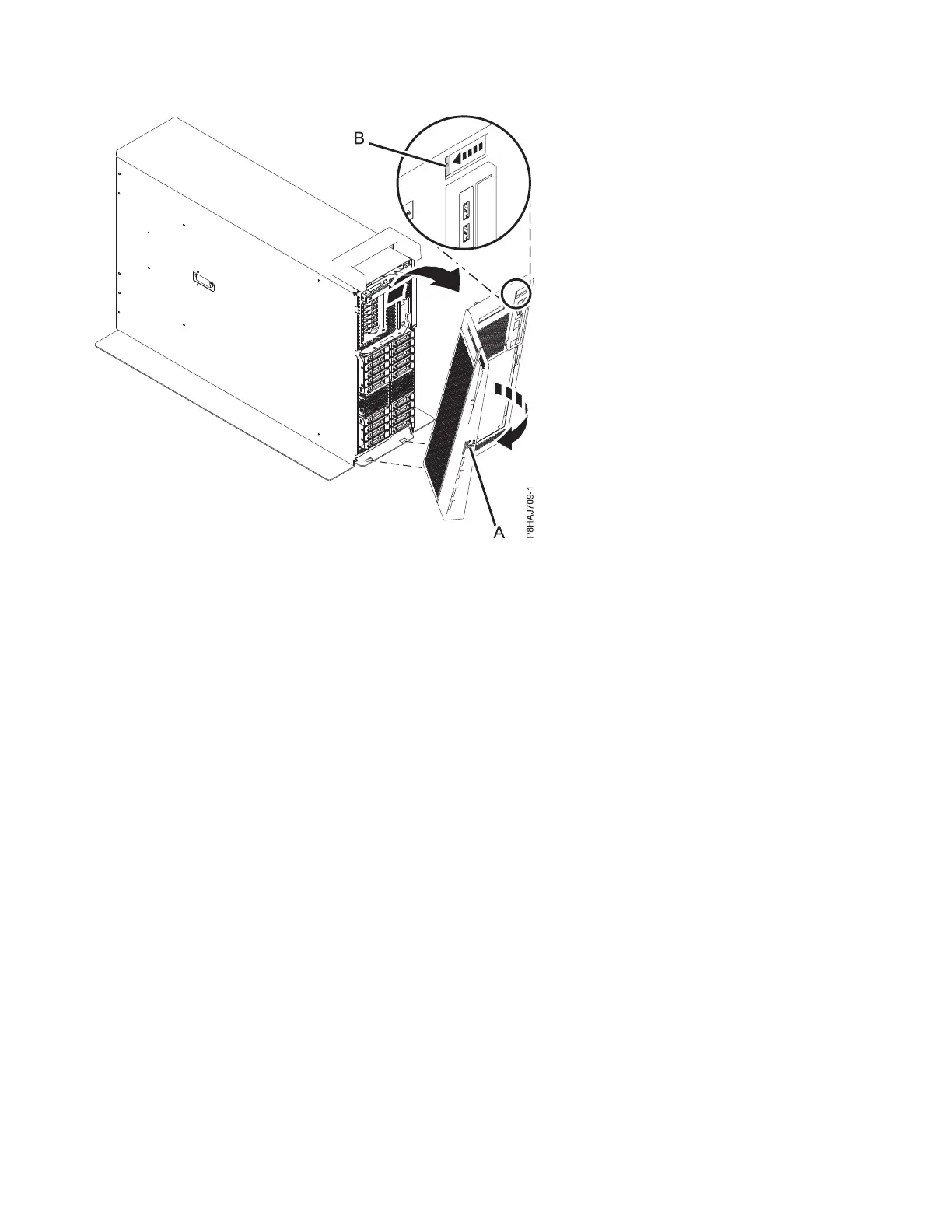

Figure 131. Removing the front cover
150 Disk drives or solid-state drives
