Disk drive locations and service indicators for the ESLL and ESLS storage
enclosures
Learn about the disk drive locations and where the service indicators are located for the ESLL and ESLS
storage enclosures.
Figure 109 shows the front of the ESLL storage enclosure, Figure 110 on page 104 shows the front of the
ESLS storage enclosure, Figure 111 on page 104 shows the rear view of the storage enclosures, and
Figure 112 on page 104 shows the locations of the disk drive service indicators for the enclosures.

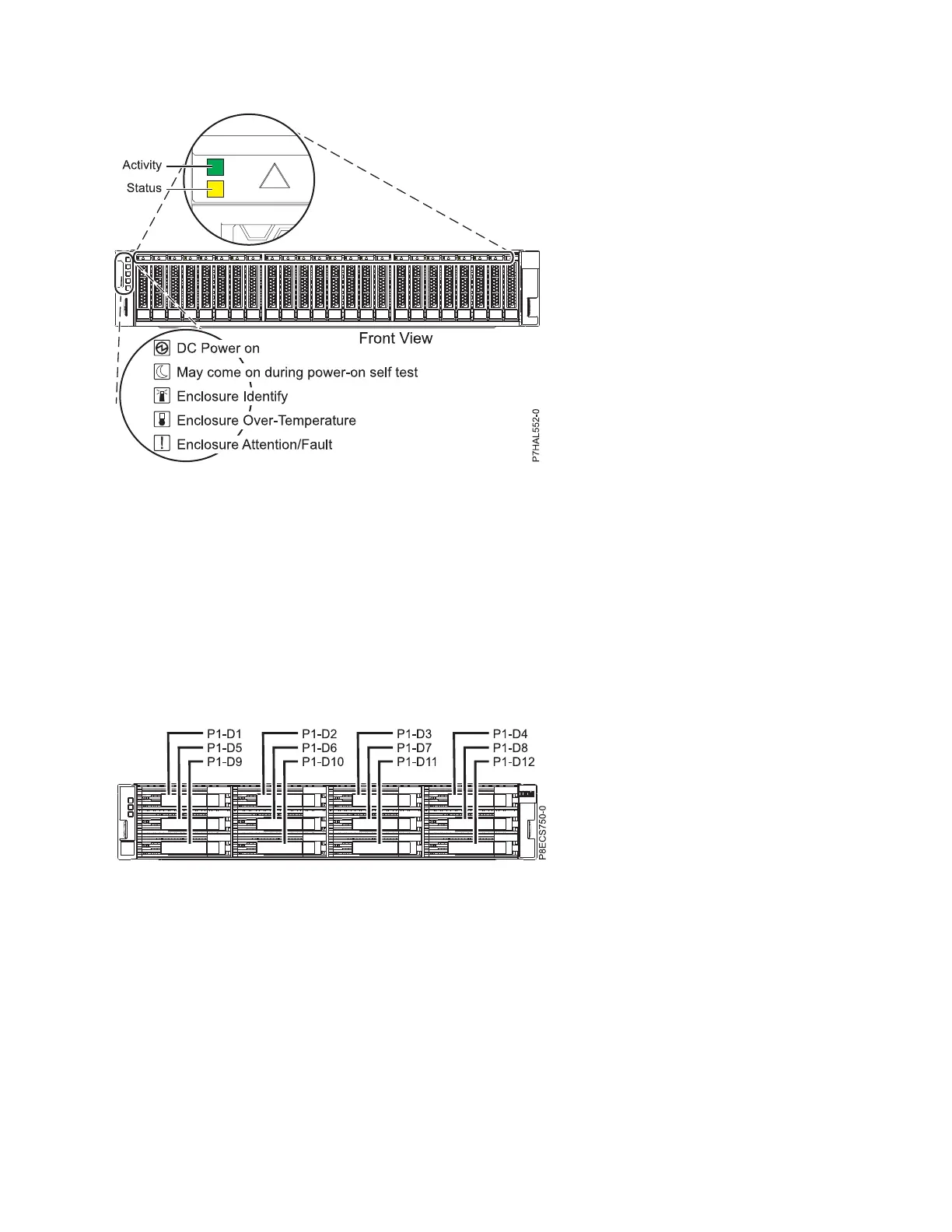

Figure 108. Front view of the 5887 disk drive enclosure showing the service indicators
Figure 109. Front view of the ESLL storage enclosure showing the disk drive locations
