Figure 106 and Figure 107 show the front view and rear view of the 5887 disk drive enclosure and the
disk drive locations in the 5887 disk drive enclosure.
Figure 108 on page 103 shows the locations of the disk drive service indicators for the 5887 disk drive
enclosure.

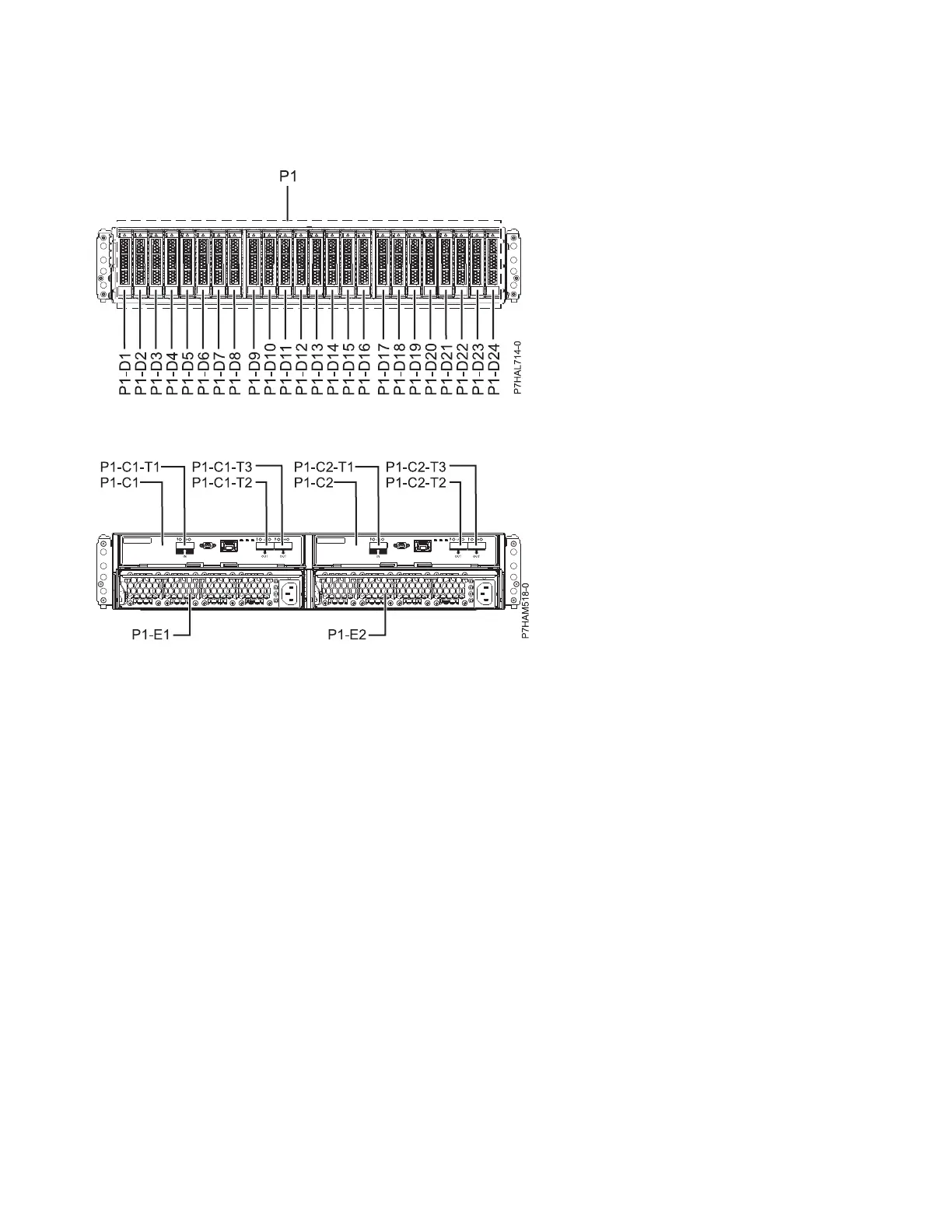

Figure 106. Front view of the 5887 disk drive enclosure showing the disk drive locations
Figure 107. Rear view of the 5887 disk drive enclosure
102 Disk drives or solid-state drives
