Removing the service access cover from a 5148-21L, 5148-22L,
8247-21L, 8247-22L, 8247-42L, 8284-21A, 8284-22A, 8286-41A, or
8286-42A system
Use this procedure to remove the service access cover.
Removing the service access cover from a rack-mounted 5148-21L, 5148-22L,
8247-21L, 8247-22L, 8247-42L, 8284-21A, 8284-22A, 8286-41A, or 8286-42A system
Use this procedure to remove the service access cover from a rack-mounted 5148-21L, 5148-22L, 8247-21L,
8247-22L, 8247-42L, 8284-21A, 8284-22A, 8286-41A, or 8286-42A system.
Attention: Operating the system without the cover for more than 30 minutes might damage the system
components.
To remove the service access cover from a rack-mounted system, complete the following steps:
1. Ensure that you have the electrostatic discharge (ESD) wrist strap attached. If not, attach it now.
2. Release the latch by pushing the release latch (A) in the direction shown.
3. Slide the cover (B) off the system unit. When the front of the service access cover has cleared the
upper frame ledge, lift the cover up and off the system unit.
Attention: For proper cooling and airflow, replace the cover before turning on the system.

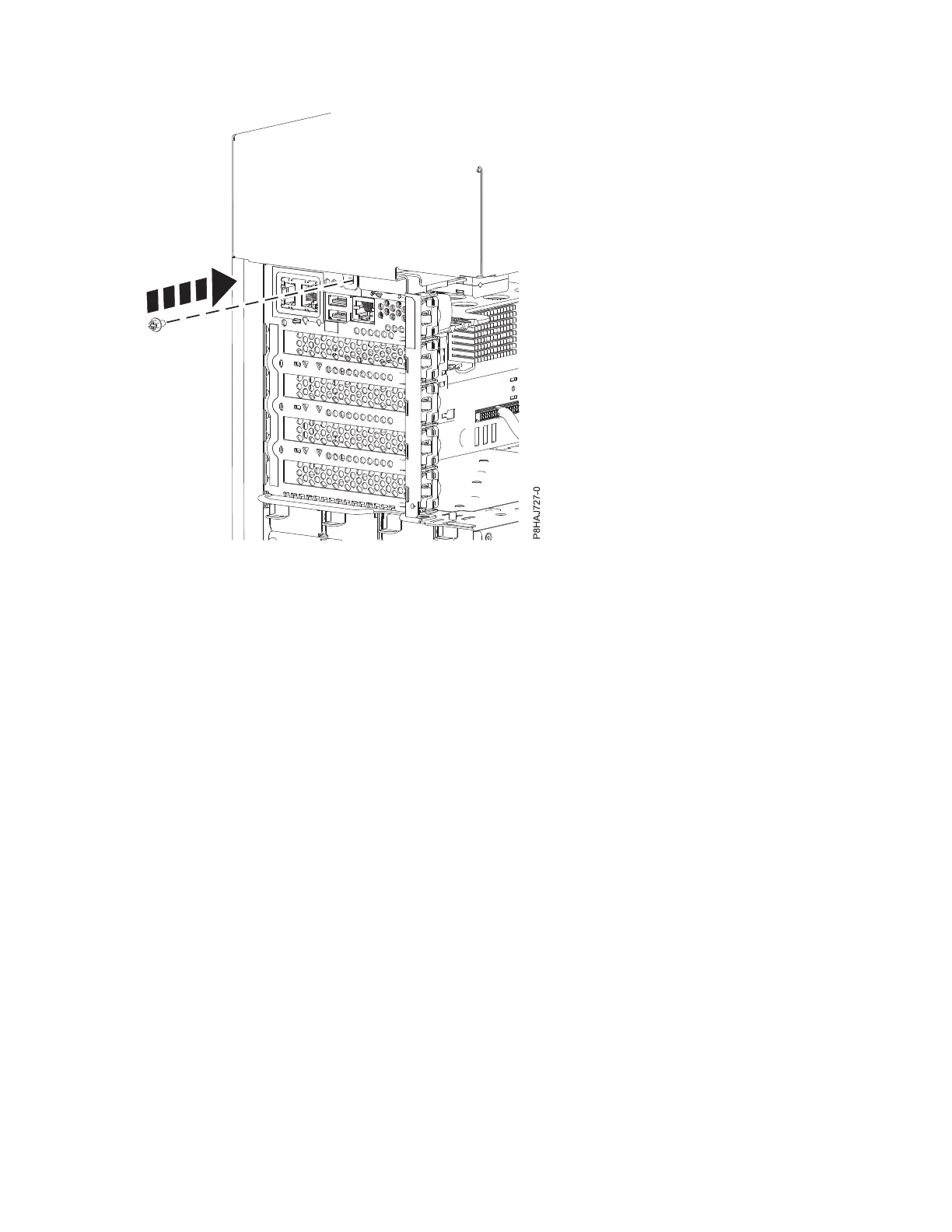

Figure 143. Installing the 8286-41A side cover screw
Common procedures for installing, removing and replacing disk drives or solid-state drives 159
