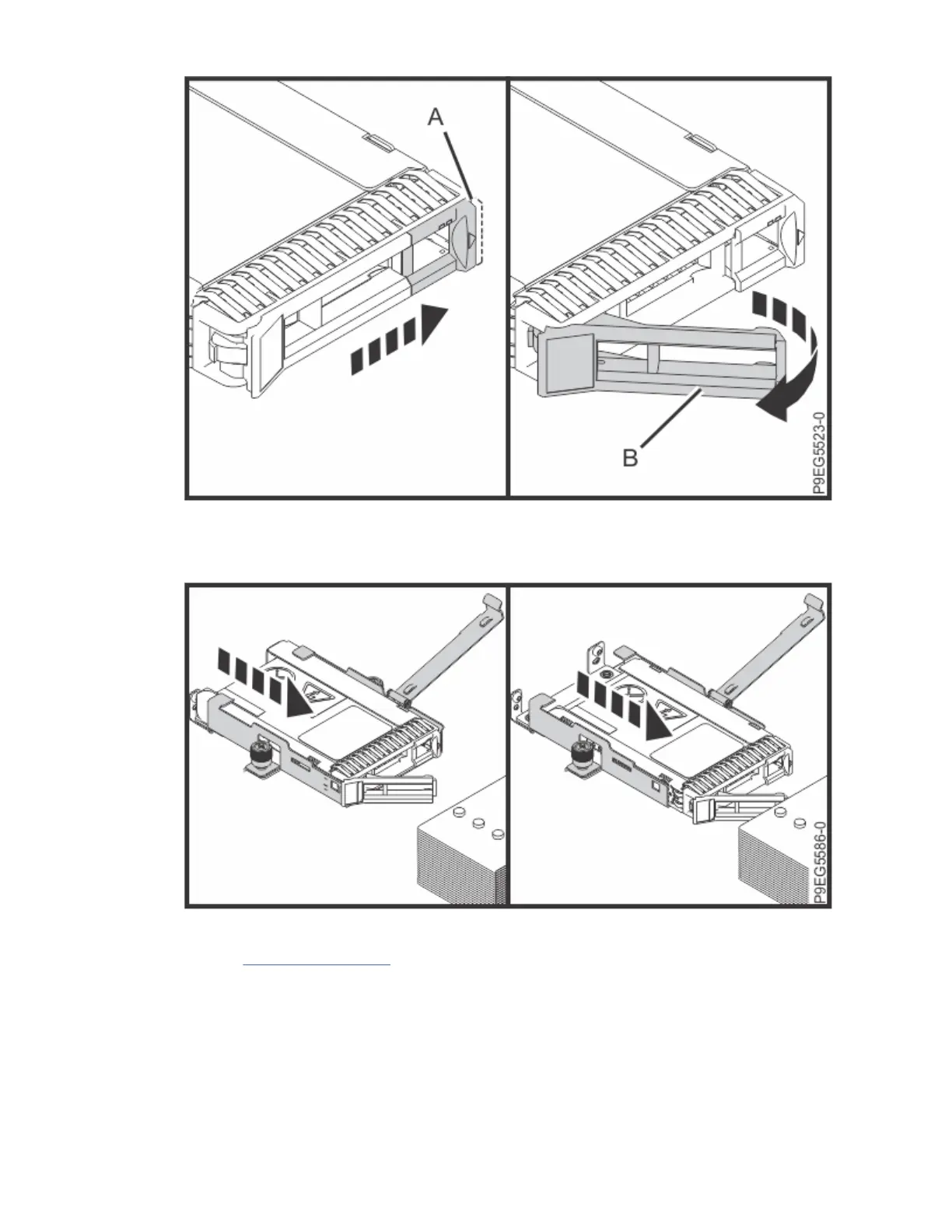

Figure 11. Unlocking the BPM handle
f) Using the BPM handle, pull the BPM about 2.5 cm (1 in.) from the disk drive backplane. See the
following gure.
Figure 12. Sliding the BPM forward
g) Refer to Figure 13 on page 14. Rotate the BPM on its longer axis to expose the cable connectors
at the bottom of the BPM.
Drive backplanes for the 5105-22E, 9008-22L, 9009-22A, 9009-22G, or 9223-22H
13
