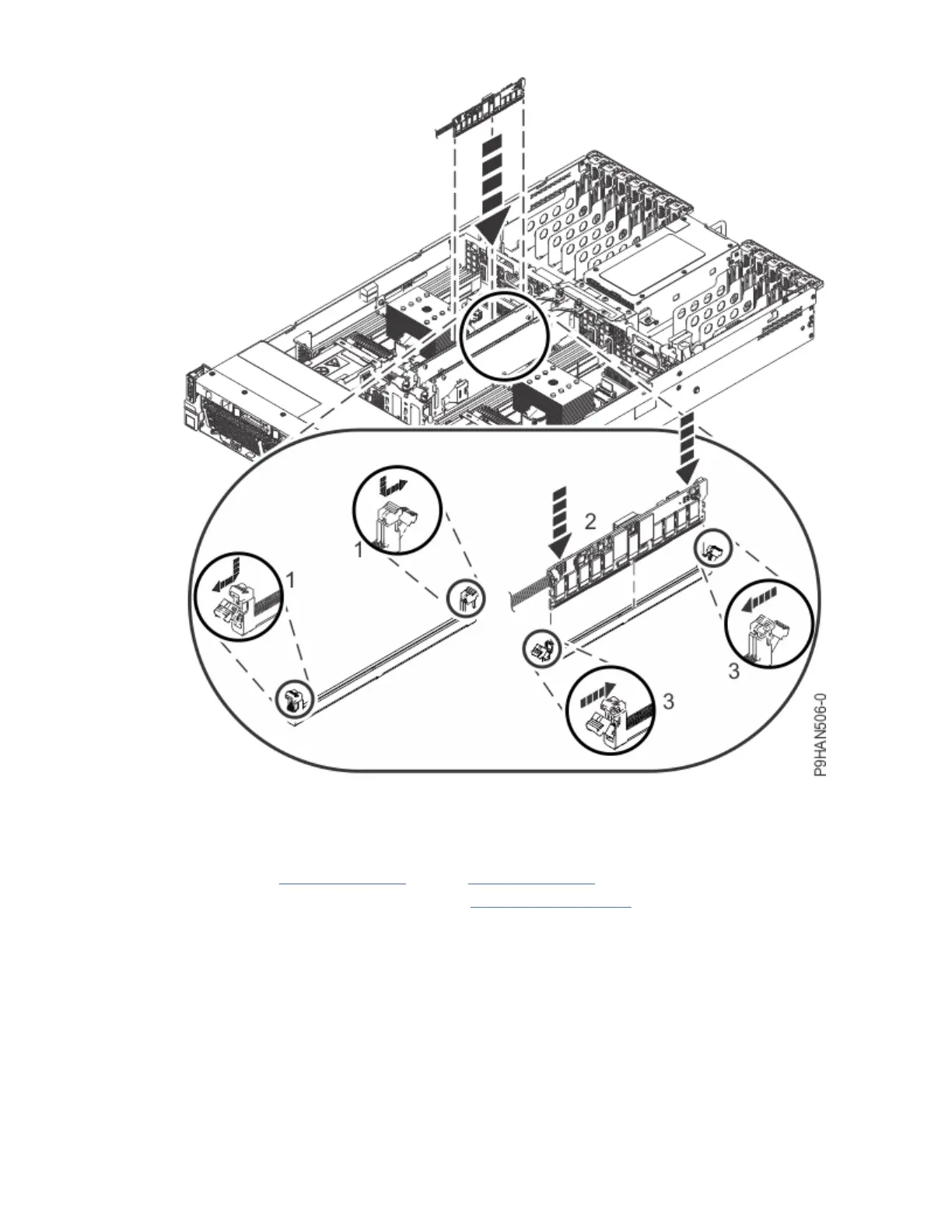

Figure 43. Replacing an NVDIMM
Note: It is important the BPM cable is routed correctly to allow for proper installation of the air
baffles.
d) Repeat steps “10.a” on page 42 through “10.c” on page 43 for any additional NVDIMMs.
11. Replace the air baffles. For instructions, see Replacing the air baffle (www.ibm.com/support/
knowledgecenter/POWER9/p9haj/p9haj_922_airbafflereplace.htm).
Preparing the 5105-22E, 9008-22L, 9009-22A, 9009-22G, or 9223-22H system for
operation after removing and replacing the disk drive backplane
To prepare the system for operation after removing and replacing a disk drive backplane, complete the
steps in this procedure.
Procedure
1. Slide the service access cover (A) onto the system unit.
2. Close the release latch (B) by pushing it in the direction shown.
44
Power Systems: Power Systems: Drive backplane
To Next Page
