Figure 34. Closing the drive holder
f) Repeat steps “8.a” on page 32 through “8.e” on page 34 for the other drive.
9. Replace the backup power modules (BPM), if present. Otherwise, continue to the next step.

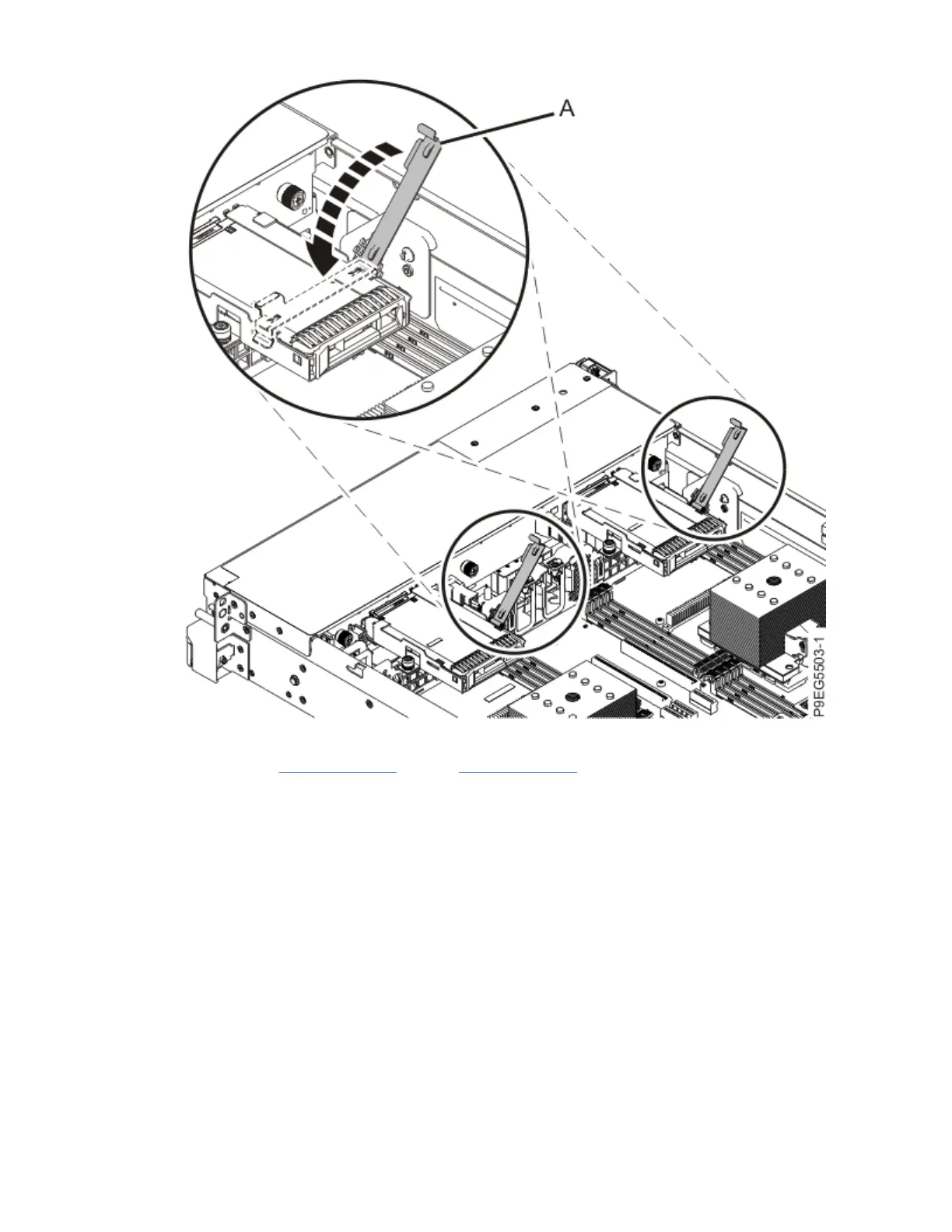

a) Unlock the BPM handle (B) by pressing the handle release latch (A) in the direction that is shown,
and pulling out the handle toward you. See the following gure.
Drive backplanes for the 5105-22E, 9008-22L, 9009-22A, 9009-22G, or 9223-22H
35
