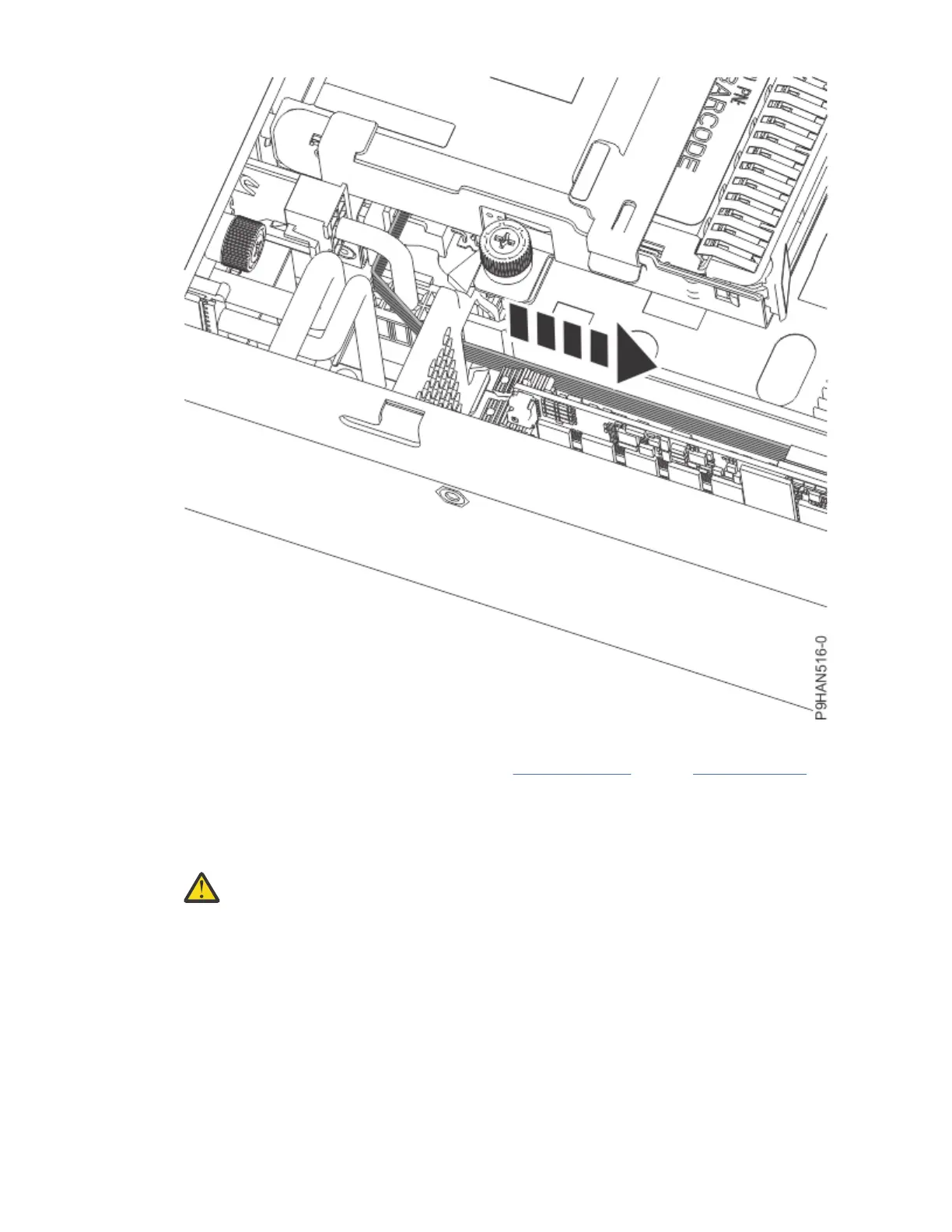

Figure 41. Pulling the BPM to remove cable slack
k) If your system has a second BPM, repeat steps “9.a” on page 35 through “9.j” on page 41 for the
other BPM and BPM cable.
10. Replace the non-volatile dual in-line memory modules (NVDIMMs), if present. Otherwise, continue to
the next step.
a) Grasp the NVDIMM along its edges and align it with the slot.
Attention:
NVDIMMs are keyed to prevent an NVDIMM from being installed incorrectly.
Note the location of the key tab within the NVDIMM connector before you attempt to install
the NVDIMM.
b) Connect the BPM cable to the NVDIMM. Push the connector in until the connector latch (A) clicks.
See the following gure.
42
Power Systems: Power Systems: Drive backplane
