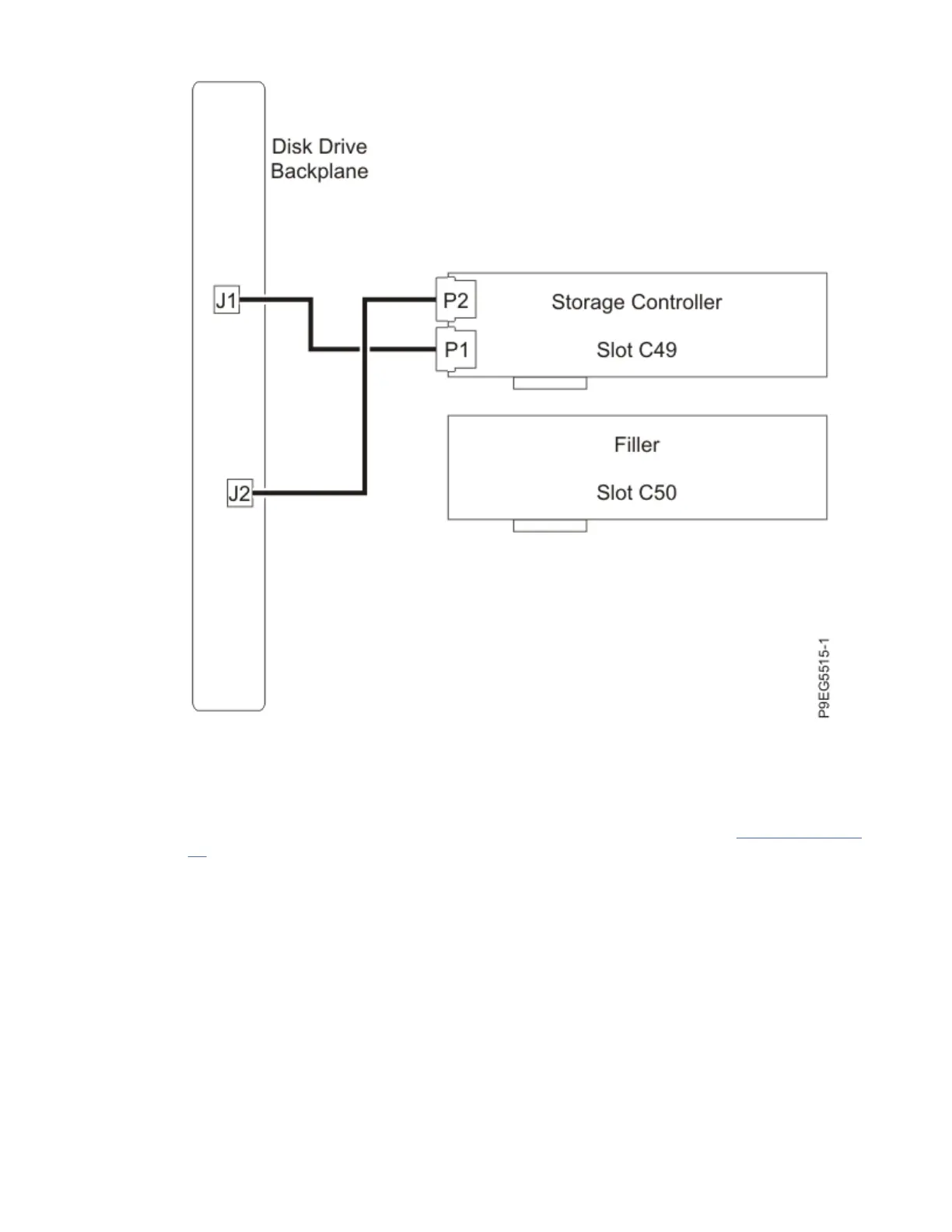

Figure 27. Reconnecting the SAS cable in a base-storage conguration
If you have two storage controllers (split-disk feature), in slots P1-C49 and P1-C50
One SAS cable connects the disk drive backplane connector J1 to the P1 connector on the
storage controller in slot P1-C49. The other SAS cable connects the disk drive backplane
connector J2 to the P2 connector on the storage controller in slot P1-C50. See Figure 28 on page
29.
28
Power Systems: Power Systems: Drive backplane
