IBM Power System 9009-22G

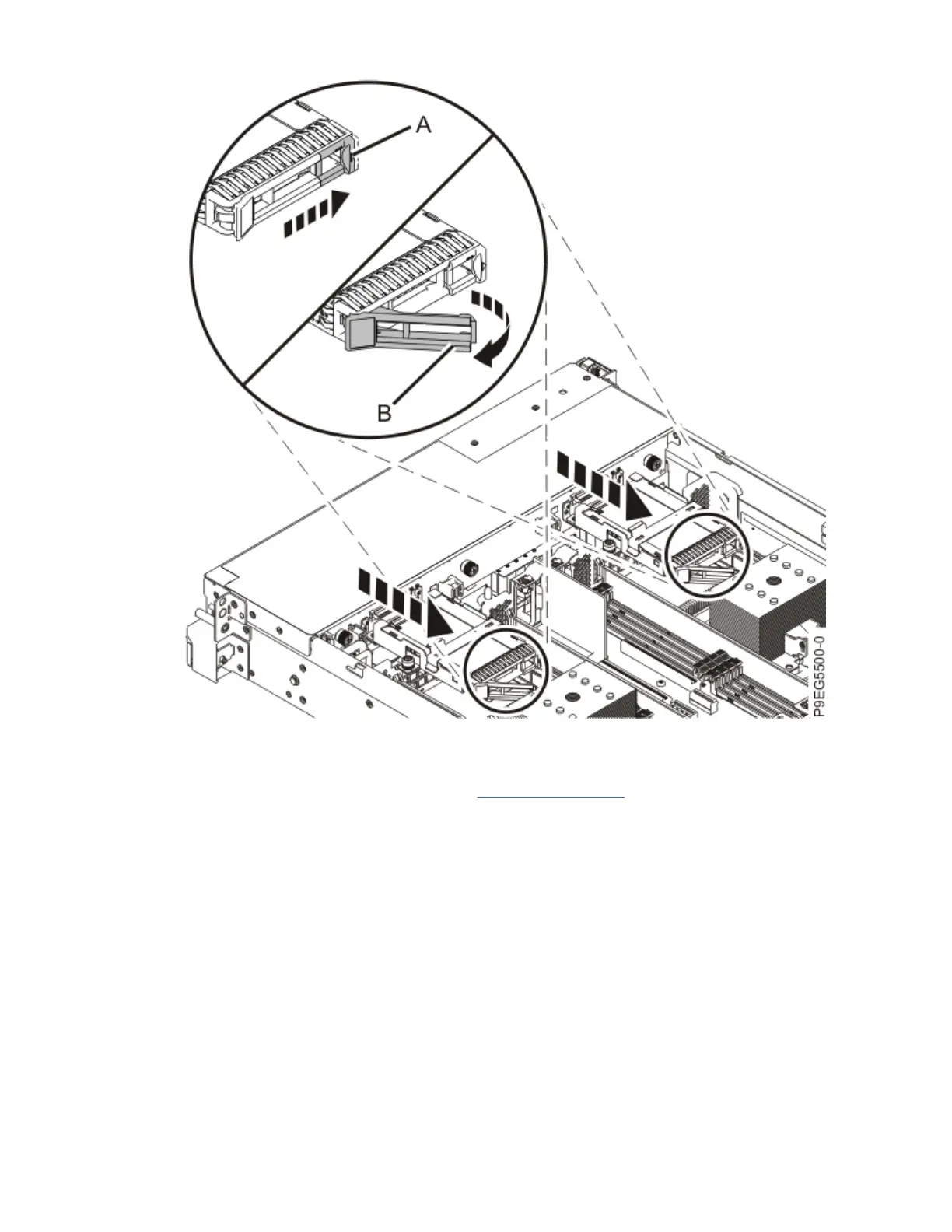

Figure 17. Unlatching the drive
c) Using the drive lever, pull the drive about 2.5 cm (1 in) from the disk drive backplane.
d) Lift the drive from the system as shown in Figure 18 on page 19.
18
Power Systems: Power Systems: Drive backplane
