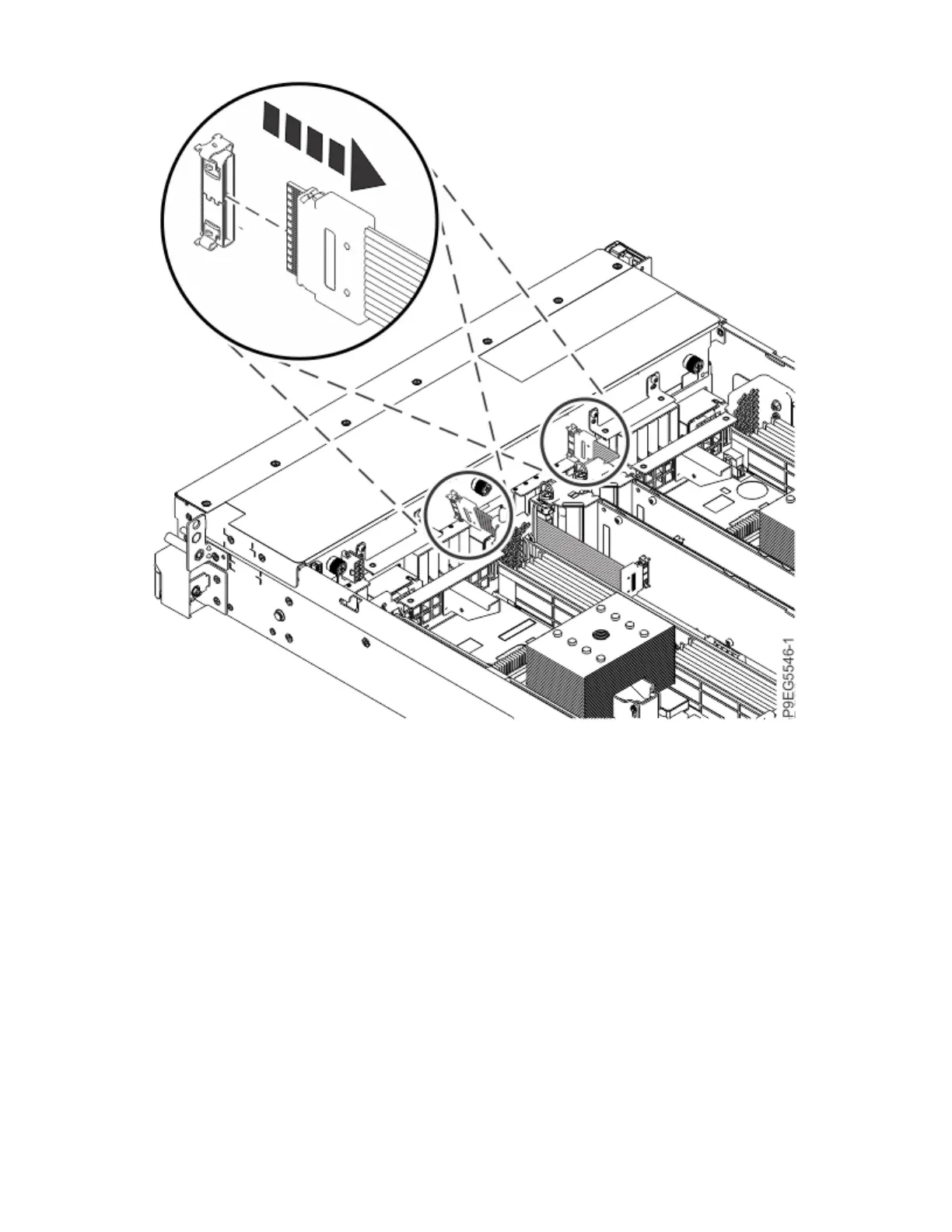

Figure 52. Disconnecting the NVMe cables
5.
Label and disconnect the signal cable
(A)
and the power cable
(B)
from the NVMe drive backplane as
shown in the following
gure.
Unlatch the clips that secure the connectors to the NVMe drive backplane.
Drive backplanes for the 5105-22E, 9008-22L, 9009-22A, 9009-22G, or 9223-22H
55
68
70
Table of Contents
Default Chapter
3
Table of Contents
3
Safety Notices
5
Power and Cabling Information for NEBS
13
Drive Backplanes
15
Removing and Replacing the Disk Drive Backplane
15
Preparing the System
15
Removing the Power Cords
16
Releasing the Side Latches
18
Location of the ESD Plugs
19
Removing the Disk Drive Backplane
20
Removing the Service Access Cover
20
Removing the Air Baffle
21
Removing a NVDIMM
22
Disconnecting a BPM Cable from the NVDIMM
23
Pulling the BPM Cable Forward
24
Disconnecting the Drive Backplane Power Cable
25
Opening the BPM Holder Lever
26
Unlocking the BPM Handle
27
Sliding the BPM Forward
27
Rotating the BPM
28
Disconnecting the BPM Cables
29
Removing the BPM
30
Opening the Drive Holder
31
Unlatching the Drive
32
Lifting the Drive
33
Removing the Drive Trays
34
Partially Removing the Front Drives and Fillers
35
Disconnecting the Front SAS Cables
36
Disconnecting the Signal Cable and Power Cable
37
Replacing the Disk Drive Backplane
38
Reconnecting the Signal Cable and the Power Cable
40
Reconnecting the Front SAS Cables
41
Reconnecting the SAS Cable in a Base-Storage Configuration
42
Reconnecting the SAS Cable in a Split-Disk Configuration
43
Reconnecting the "Y" SAS Cable in a Storage Controller Configuration
44
Replacing the Front Drives and Fillers
45
Replacing the Drive Trays
46
Lowering the Drive into the Drive Tray
47
Latching the Drive
48
Closing the Drive Holder
49
Lowering the BPM into the Drive Tray
51
Connecting the BPM Cable
52
Locking the BPM Handle
53
Closing the BPM Holder Lever
54
Reconnecting the Drive Backplane Power Cable
55
Pulling the BPM to Remove Cable Slack
56
Connecting the BPM Cable to the NVDIMM
57
Preparing for Operation after Removing/Replacing Disk Drive Backplane
58
Preparing the System for Operation
58
Installing the Service Access Cover
59
Connecting the Power Cords
60
Removing and Replacing the Nvme Backplane in the 9009-22G
61
Preparing the System
61
Removing the Nvme Drive Backplane from the 9009-22G System
66
Replacing the Nvme Drive Backplane in the 9009-22G System
71
Preparing the 9009-22G System for Operation
75
Removing and Replacing the Drive Backplane Power Cable
79
Preparing the System
79
Removing the Drive Backplane Power Cable
84
Replacing the Drive Backplane Power Cable
86
Preparing the System for Operation
87
Removing and Replacing the Drive Backplane Signal Cable
90
Preparing the System
90
Removing the Drive Signal Cable
95
Replacing the Drive Signal Cable
97
Preparing the System for Operation
98
Notices
101
Accessibility Features for IBM Power Systems Servers
102
Privacy Policy Considerations
103
Electronic Emission Notices
103
Trademarks
103
Class a Notices
103
Class B Notices
107
Terms and Conditions
109
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the IBM Power System 9009-22G and is the answer not in the manual?
Ask a question
