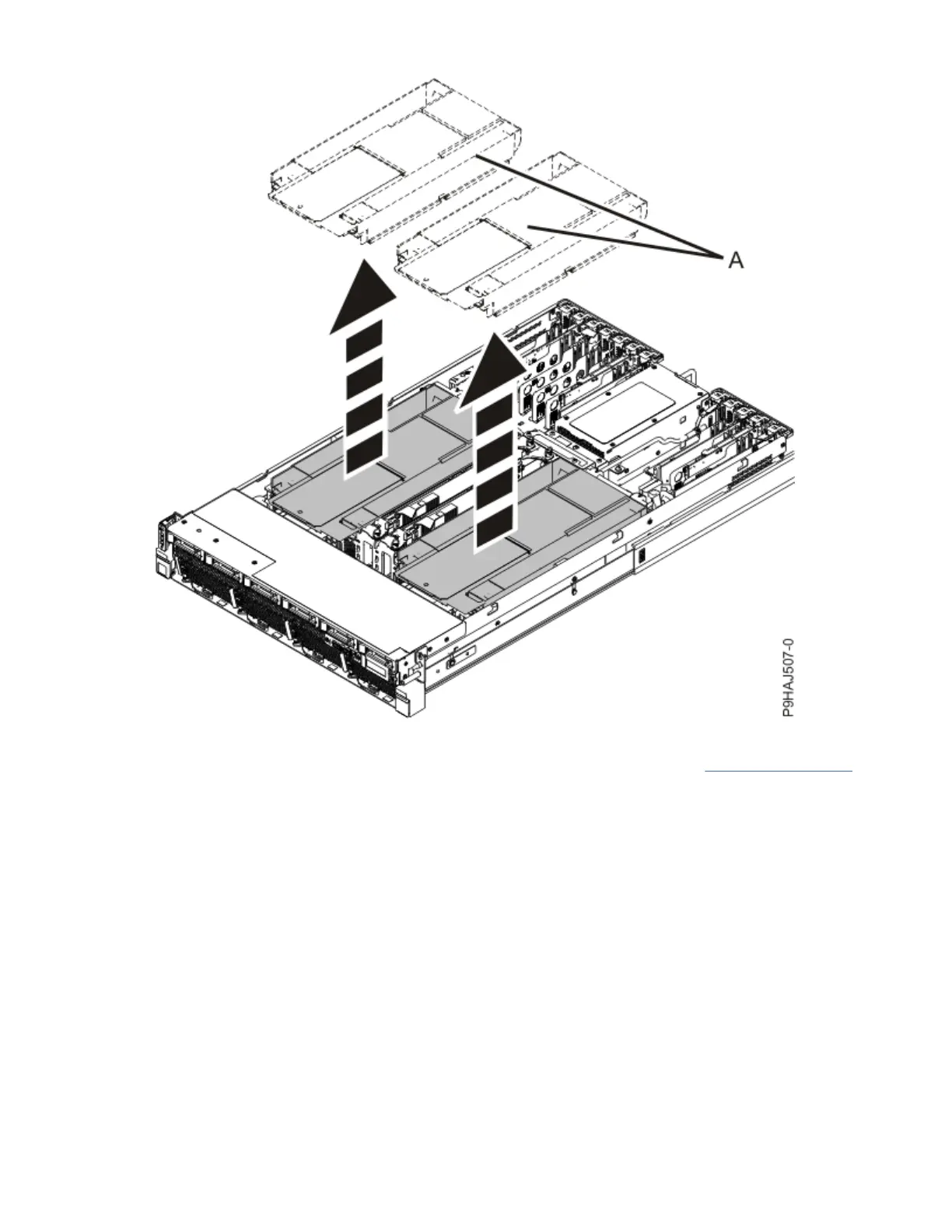

Figure 74. Removing the air baffle
3. Label and disconnect the signal cable (A) from the drive backplane as shown in Figure 75 on page 83.
Unlatch the clips that secure the connectors to the drive backplane.
82
Power Systems: Power Systems: Drive backplane
