Complete the following tasks to install the device in a rack:
1. “Attaching the front brackets to the device” on page 26
2. “Attaching the front brackets to the rack” on page 26
3. “Attaching the rear brackets to the rack” on page 27
4. “Attaching the rear brackets to the device” on page 28
Attaching the front brackets to the device
Complete the following steps to attach the front brackets to the device.
1. Position the right front bracket with the flat side against the right side of the device, as shown in Figure
18 on page 26.
2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then
into the holes on the side of the device. Use the upper and lower screw holes, leaving the center holes
empty.
3. Repeat step 1 and step 2 to attach the left front bracket to the left side of the device.
4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).

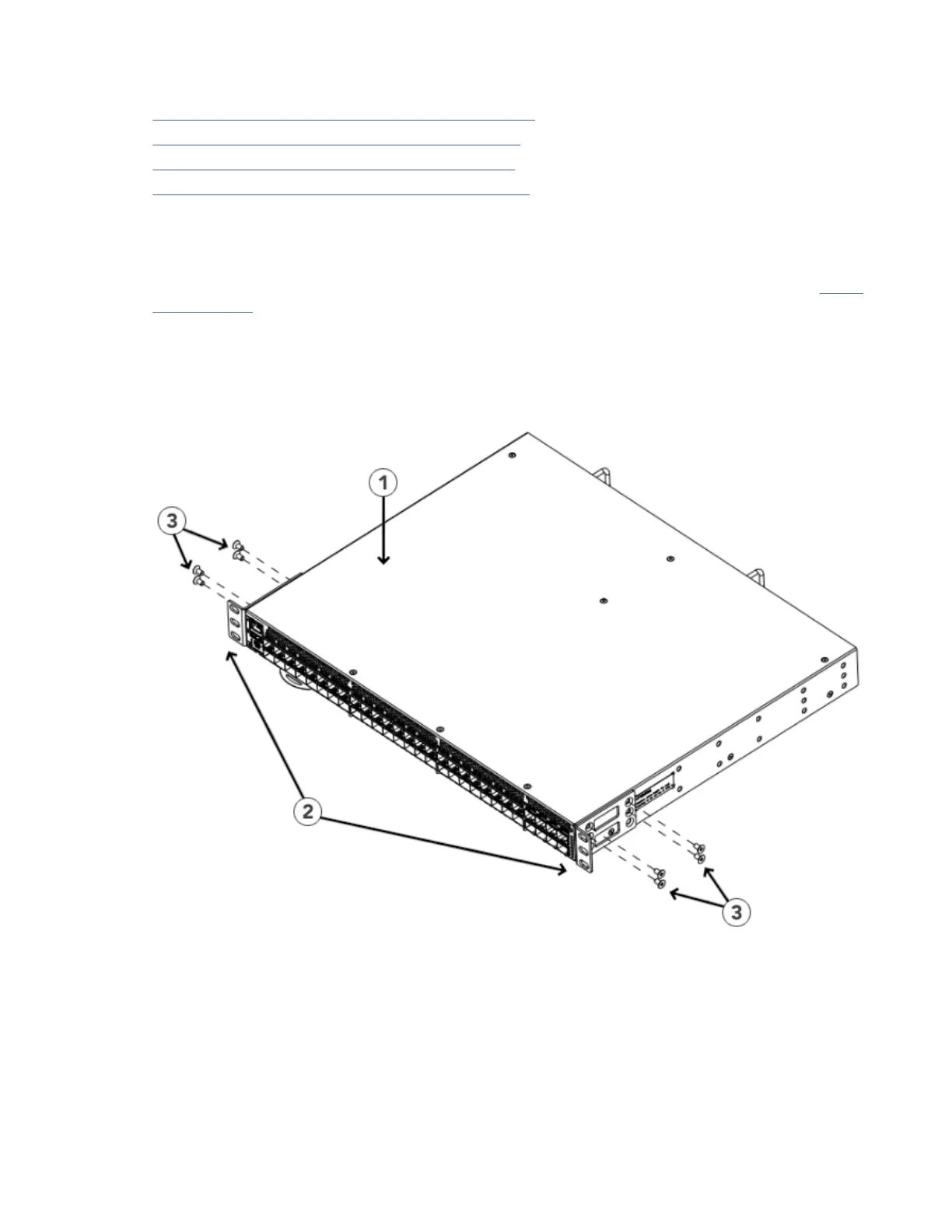

Figure 18. Attaching the front brackets
1. The SAN128B-7 device
2. Front brackets, right and left
3. Screws, 8-32 x 5/16-in., flathead Phillips
Attaching the front brackets to the rack
Complete the following steps to install the device in the rack.
26
IBM Storage Networking SAN128B-7: SAN128B-7 Installation, Service, and User Guide
