IBM Selectric Reference Manual

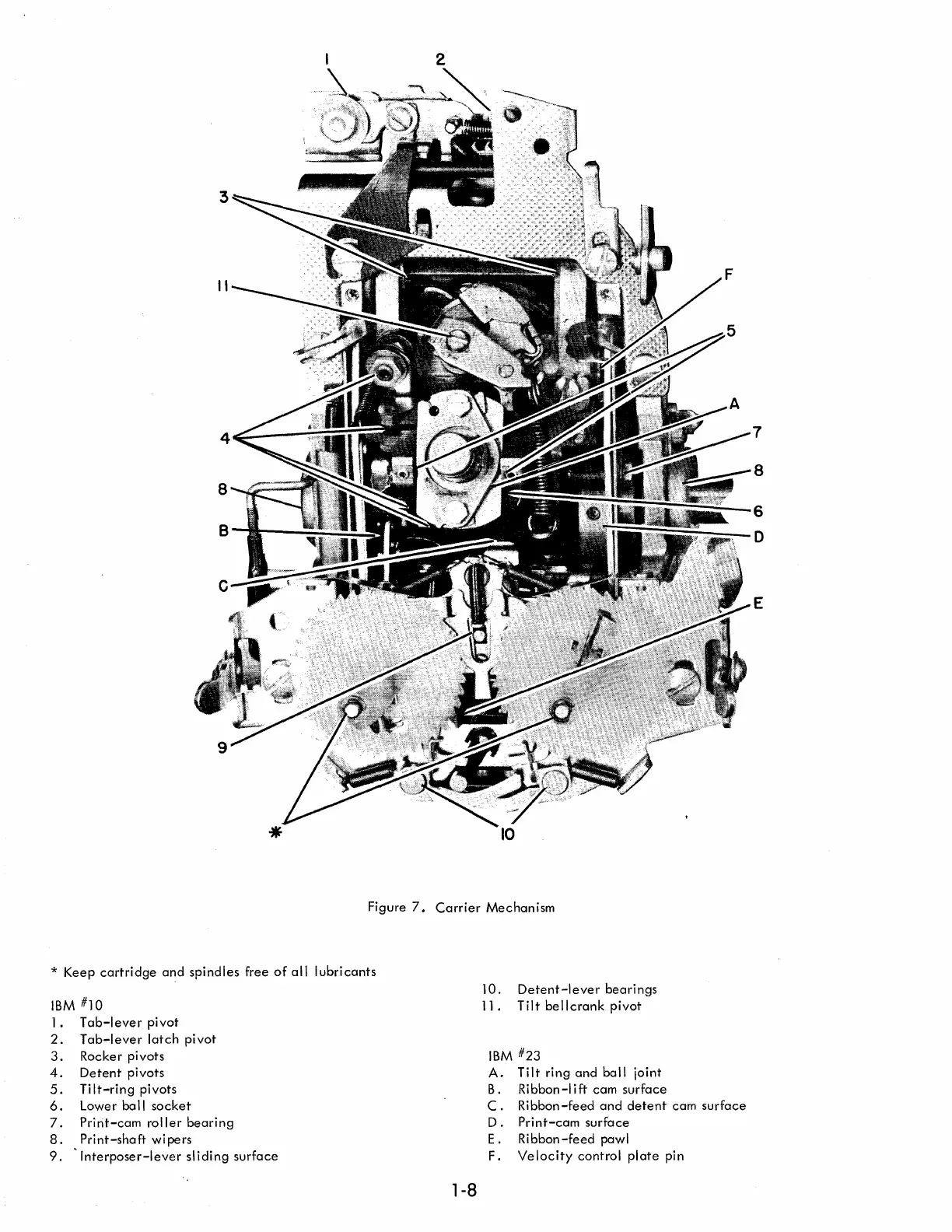

Figure 7. Carrier Mechanism
* Keep cartridge and spindles free of all lubricants
10. Detent-lever bearings
IBM #10
11. Tilt bellcrank pivot
1. Tab-lever pivot
2. Tab-lever latch pivot
3. Rocker pivots
IBM #23
4. Detent pivots
A. Tilt ring and ball joint
5. Ti It-ring pivots B. Ribbon-lift cam surface
6. Lower ball socket
C. Ribbon-feed and detent cam surface
7. Pririt-cam roller bearing
D. Print-cam surface
8. Print-shaft wi pers
E. Ribbon-feed pawl
9. Interposer-lever sl iding surface
F. Ve locity control plate pin
1-8
7
8
6
o
E
